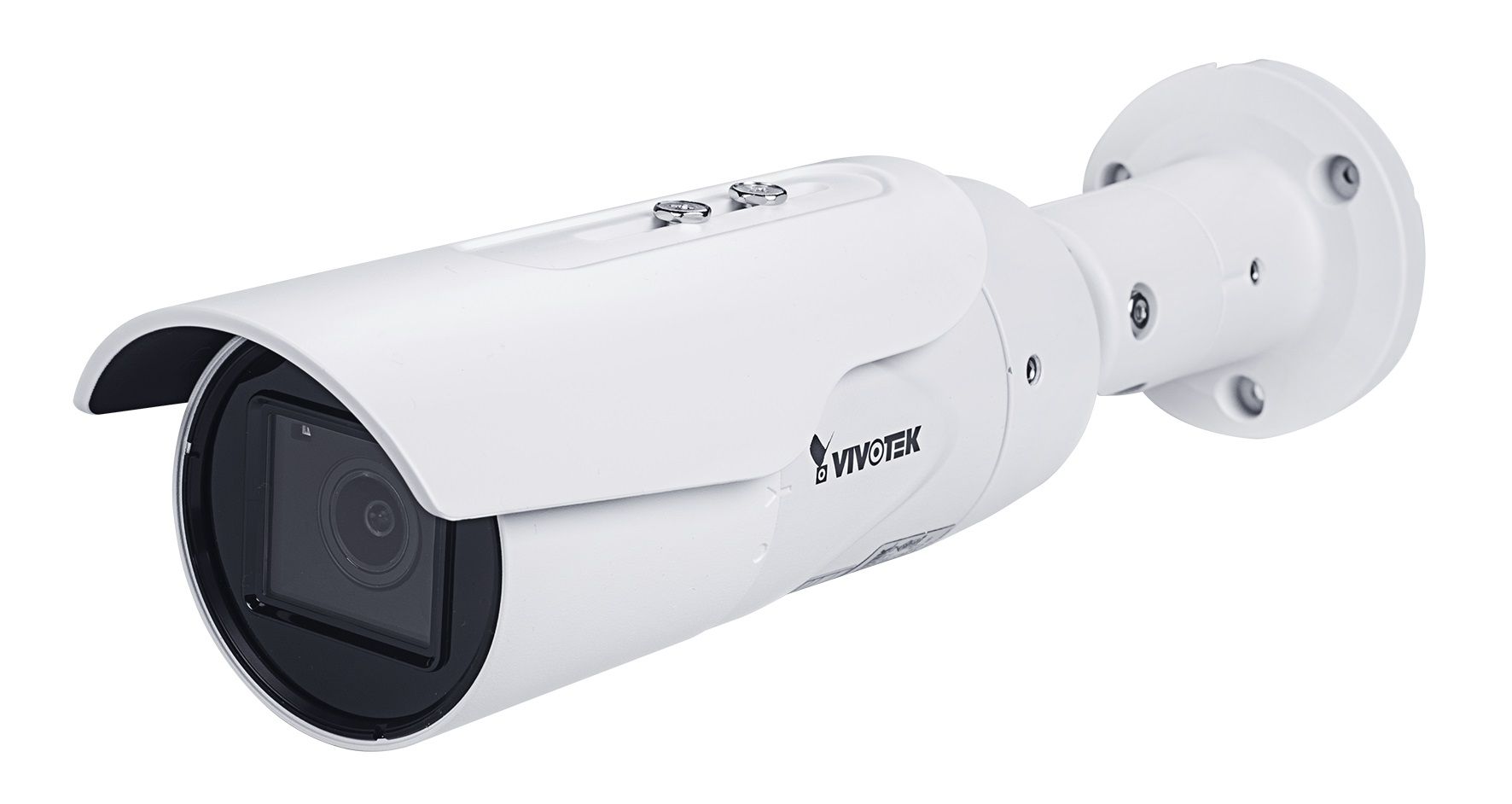

Vivotek IB9389-EHT-v2 5 Megapixel Network Outdoor Bullet Camera with 2.8-10mm Lens
SKU
IB9389-EHT-v2
Model No
IB9389-EHT-v2
$355.95
Product Highlights
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Trend Micro IoT Security
Speak to an expert
VIVOTEK’s IB9389-EHT-v2 is a robust outdoor bullet camera that delivers exceptional 5-Megapixel resolution at 30 fps, making it perfect for high-definition surveillance needs. Equipped with advanced technologies such as VIVOTEK's Smart Stream III and WDR Pro, this camera ensures high-quality imagery in diverse lighting conditions. The unit’s durable housing is built for extreme weather resilience and vandal resistance, while its versatile lens options cater to various installation scenarios.
VIVOTEK IB9389-EHT-v2 Camera Features
- High Resolution: Enjoy sharp, clear footage with 2560x1920 resolution at 30 fps for superior image quality.
- WDR Pro (120 dB): Captures clear images in challenging lighting conditions, enhancing visibility in high-contrast scenes.
- Built-in IR Illuminators: Offers night vision capabilities with an effective range of up to 30 meters, ensuring clarity in low-light environments.
- Smart IR Technology: Prevents overexposure during night-time recording, maintaining image quality in various lighting.
- IoT Security: Benefit from Trend Micro IoT Security, reinforcing protection against cyber threats.
- Durable Housing: IK10 vandal-proof and IP66 weather-proof ratings ensure reliability in harsh outdoor conditions.
- Motorized Lens: 2.8 ~ 10mm motorized lens offers flexibility in focal length for different surveillance scenarios.
Detailed Specifications for IB9389-EHT-v2
| Sensor | 5-Megapixel |
| Max Resolution | 2560x1920 |
| Frame Rate | 30 fps @ 2560x1920, 60 fps @ 1920x1080 |
| WDR | Pro (120 dB) |
| IR Range | Effective up to 30 Meters |
| Housing Rating | IK10, IP66 |
| Lens Type | 2.8 ~ 10mm Motorized |
| Compression | H.265, Smart Stream III |
| Security Features | Trend Micro IoT Security |
SKU  | IB9389-EHT-v2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Ø 88 x 308 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.7" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.06 lux @ F1.8 (Color), 0.01 lux @ F1.8 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) (IR of f ), -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Power Consumption | Max. 12.95 W (IR on), Max. 9.95 W (IR of f ), Max. 12.95 W (IR on, Heater on), Max. 10.55 W (IR on, Heater of f ) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 55 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection, human detection, time filter(Without bounding box) |
| IR Distance | 20m/65.61ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
