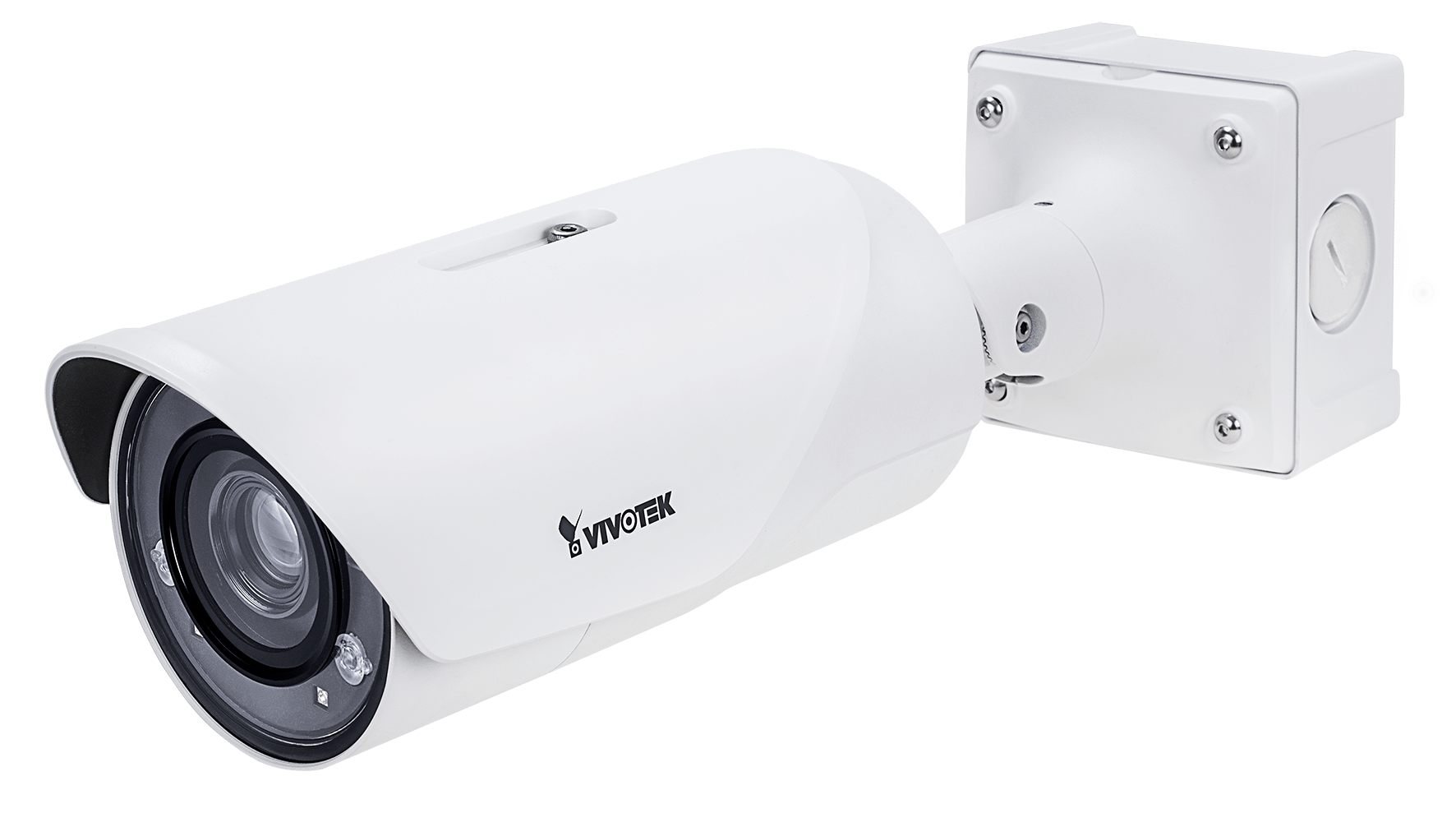

Vivotek IB9365-LPR 2 Megapixel Outdoor Network License Plate Recognition Camera, 12-40mm Lens
SKU
IB9365-LPR

Vivotek Model IB9365-LPR

Vivotek IB9365-LPR 2 Megapixel Outdoor Network License Plate Recognition Camera, 12-40mm Lens

  • 2MP
  • 12–40mm
  • Outdoor
Free shipping
Model No
IB9365-LPR
$1,415.89
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Embedded Access Control Application Based on LPR Software
  • Supports License Plates from over 70+ Countries
  • Black and White Lists for License Plate Verification
  • Centralized List Management in Single Camera
  • Fully Integrated with VAST 2

Overview

Vivotek’s IB9365-LPR 2 Megapixel Outdoor Network License Plate Recognition Camera is a cutting-edge solution for effective license plate recognition, featuring a built-in system that supports an extensive range of international license plates. Its advanced capabilities include automatic verification with black-lists and white-lists, making it perfect for secure parking access and toll collection. Enhanced night vision and integration options make this camera a robust choice for various applications in outdoor settings.

Features

  • Embedded Access Control Application: Utilizes advanced LPR software for seamless control of parking access and toll collection.
  • Supports License Plates from 70+ Countries: Versatile recognition capabilities that enhance operational scope across different regions.
  • Black and White Lists: Provides efficient license plate verification to manage vehicle access control.
  • Centralized List Management: Simplifies management with a single camera facilitating ease of use.
  • Fully Integrated with VAST 2: Allows for a comprehensive security management system, enhancing surveillance capabilities.
  • Various Open APIs: Enables easy 3rd party integration to extend functionality with existing systems.
  • SNV II and WDR Pro II Technology: Ensures optimal performance in low light and high contrast situations, capturing clear images under various conditions.
  • Trend Micro IoT Security: Offers robust protection against cyber threats, ensuring data security.
  • Supports Wiegand Protocol: Compatible with various access control applications for enhanced operational flexibility.
  • Hazard ID Recognition: Increases safety and awareness by identifying potential hazards.
  • Weather-proof and Vandal-proof: IP66, IK10, and NEMA 4X-rated housing ensures durability and reliability in all outdoor environments.

Vivotek IB9365-LPR Detailed Specifications

ModelVivotek IB9365-LPR
Resolution2 Megapixels
Lens Type12-40mm Remote Focus Lens
CompatibilitySupports license plates from over 70 countries
IR TechnologySmart IR II with optimized alignment
Housing ProtectionIP66 Weather-proof, IK10 Vandal-proof, NEMA 4X-rated
IntegrationSupports 3rd party integration via Various Open APIs
Power SupplyPoE Supported
ApplicationParking Access Control, Toll Collection

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  IB9365-LPR
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    12-40mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø 121 x 121 x 444 mm (w/ junction box), Ø 121 x 121 x 380 mm (w/o junction box)
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2" Progressive CMOS
IR LEDs  IR LED*4
Minimum Scene Illumination  0.06 Lux @ F1.8 (Color), 50IRE, 0.03 Lux @ F1.8 (Color), 30IRE, <0.01 lux @ F1.8 (B/W), 0 Lux with IR illumination on
Operating Humidity    90%
Operating Temperature    Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F), Working Temperature (IR on): -30°C ~ 50°C (-22°F ~ 122°F)
Power Consumption  PoE: Max. 11.9 W, DC 12V: Max. 9 W, AC 24V: Max. 10.5 W
Protocols  802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  66 dB
Weatherproof    IP66
Digital Noise Reduction    3DNR
Angle of View    12° ~ 35° (Horizontal), 7° ~ 19° (Vertical), 14° ~ 40° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
IR Distance  100m/328.08ft
