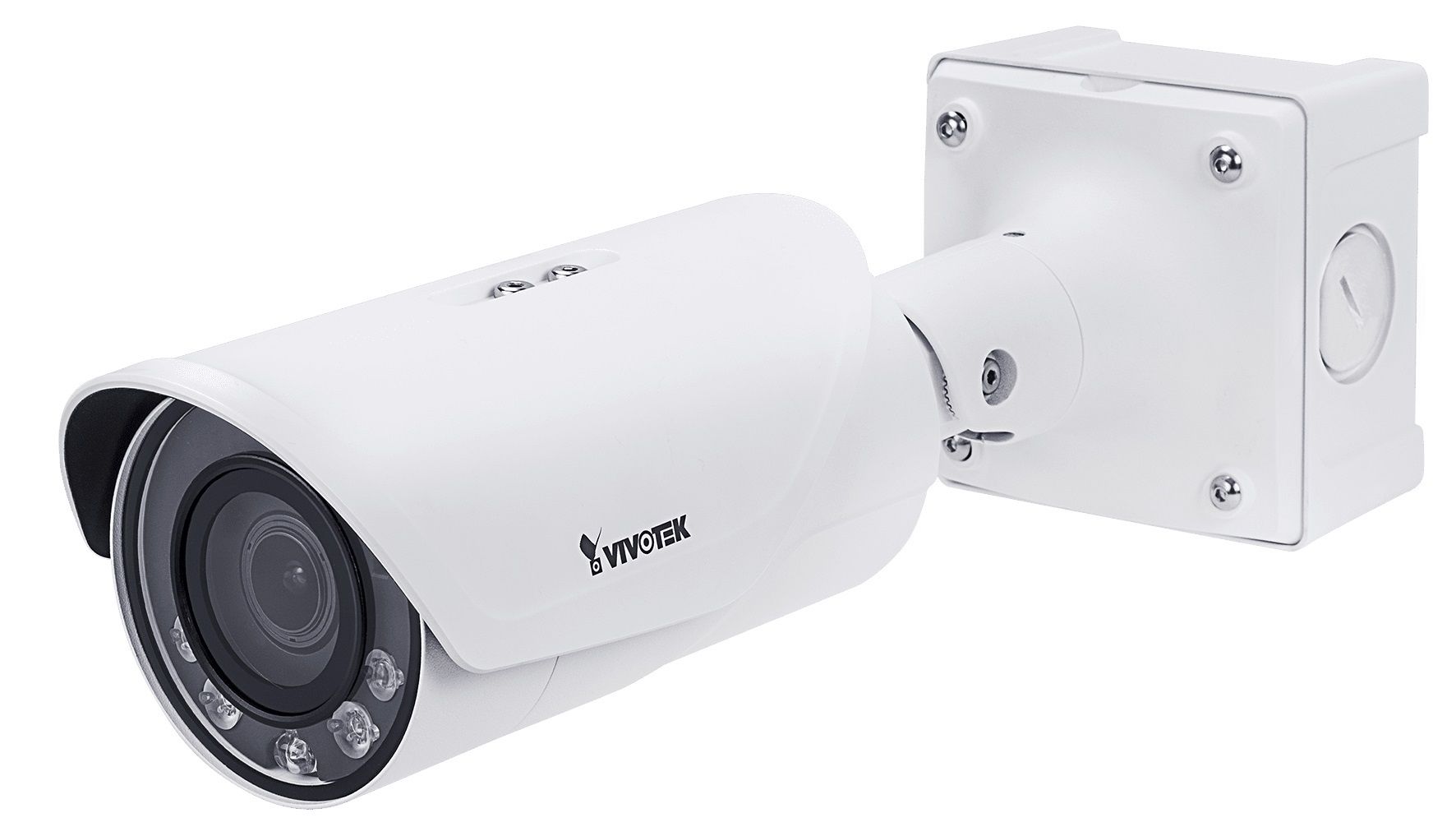

Vivotek IB9365-EHT 2 Megapixel Network IR Outdoor Bullet Camera, 4-9mm Lens

SKU
IB9365-EHT
Model No
IB9365-EHT
$528.84
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 60 fps @ 1920x1080
  • H.265 Compression Technology
  • 4 ~ 9 mm, Remote Focus, P-iris Lens
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV II (Supreme Night Visibility) for Low Light Conditions

The IB9365-EHT from Vivotek is the new flagship outdoor bullet network camera, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated Vivotek SNV and WDR Pro technology, the IB9365 series is capable of capturing the highest quality images in both low light and high contrast environments.

The IB9365-EHT also offers the best in night time surveillance technology. By adopting Smart IR II technology from Vivotek speed domes, the IB9365-EHT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.

Additionally, the IB9365-EHT employs Vivotek's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the Vivotek VADP (Vivotek Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9365-EHT IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 50°C.

Vivotek IB9365-EHT Camera Features

  • Resolution: 60 fps @ 1920x1080 ensures smooth video playback and high clarity.
  • Compression Technology: H.265 Compression Technology significantly reduces bandwidth usage while preserving image quality.
  • Lens Type: 4 ~ 9 mm, Remote Focus, P-iris Lens offers versatile focal length options for various surveillance needs.
  • Bandwidth Efficiency: Smart Stream III to Optimize Bandwidth Efficiency provides enhanced video quality with less data usage.
  • Night Visibility: SNV II (Supreme Night Visibility) for Low Light Conditions improves imagery even in the darkest environments.
  • Wide Dynamic Range: WDR Pro II (140dB) to Provide Extreme Visibility in Extremely Bright or Dark Environments enhances visibility in varying lighting conditions.
  • IR Illuminators: Built-in IR Illuminators, Effective up to 50 Meters ensure reliable night surveillance.
  • Overexposure Prevention: Smart IR II Technology to Avoid Overexposure maximizes image quality in low-light situations.
  • Motion Detection: Smart Motion Detection to Reduce False Alarms minimizes unnecessary alerts.
  • Security Features: Trend Micro IoT Security within Standard Warranty Period safeguards against cyber threats.
  • Durability: Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing offers robust protection in harsh conditions.
  • Temperature Range: -50°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions ensures the camera operates reliably in diverse climates.

Vivotek IB9365-EHT Detailed Specifications

FeatureDetails
Camera Type2 Megapixel Network IR Outdoor Bullet Camera
Resolution1920x1080 (60fps)
Lens4 ~ 9 mm, Remote Focus, P-iris Lens
CompressionH.265, H.264
IR RangeEffective up to 50 Meters
WDR TechnologyWDR Pro II (140dB)
Night VisibilitySNV II (Supreme Night Visibility)
Housing RatingsIP66, IP67, IK10
Operating Temperature-50°C ~ 50°C
Smart FeaturesSmart Stream III, Smart IR II, Smart Motion Detection
Cyber SecurityTrend Micro IoT Security
SKU  IB9365-EHT
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    4-9mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø 121 x 121 x 415 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2" Progressive CMOS
IR LEDs  5
Minimum Scene Illumination  0.04 Lux @ F1.3 (Color), 50IRE , 0.002 Lux @ F1.3 (Color), 30IRE , 0 Lux with IR illumination on
Operating Humidity    90%
Operating Temperature    -50°C ~ 50°C (-58°F ~ 122°F)
Power Consumption  Max. 24.8 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
S/N Ratio  66 dB
Weatherproof    IP66 , IP67
Digital Noise Reduction    3D
Angle of View    46° ~ 100° (Horizontal) , 26° ~ 52° (Vertical) , 53° ~ 120° (Diagonal)
Rotation Angle180°
Motion Detection Tracking    Five-window video motion detection, human detection, time filter
IR Distance  50m/164.04ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
