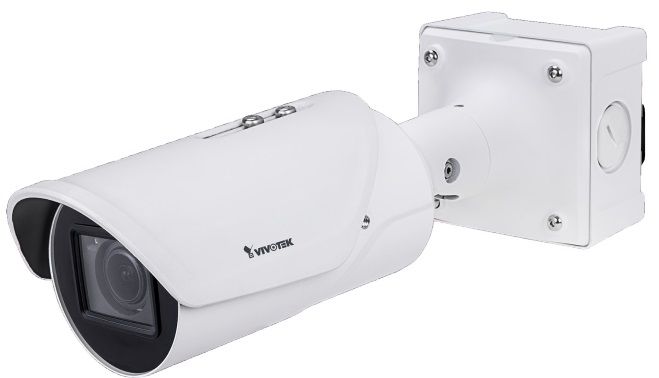

Vivotek IB9365-EHT-A 2 Megapixel Network IR Outdoor Bullet Camera, 4-9mm Lens

SKU
IB9365-EHT-A
Model No
IB9365-EHT-A
$650.88
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 60 fps @ 1920x1080
  • H.265 Compression Technology
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • W DR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments
  • Built-in IR illuminators, effective up to 50 meters

The IB9365-EHT-A is VIVOTEK's latest 2 Megapixel Outdoor Bullet Camera designed for high-performance surveillance. With its cutting-edge features including a 4-9mm lens, advanced night vision technology, and robust weatherproofing, this camera ensures optimal image quality and durability in various environments. Ideal for comprehensive security monitoring, the IB9365-EHT-A delivers impeccable performance during both day and night.

Vivotek IB9365-EHT-A Camera Features

  • 60 fps @ 1920x1080: Provides smooth video playback and captures fast-moving objects clearly, essential for security applications.
  • H.265 Compression Technology: Significantly reduces bandwidth usage, allowing for efficient storage and transmission of high-quality video streams.
  • Smart Stream III to Optimize Bandwidth Efficiency: Adjusts the bit rate according to the scene complexity, maximizing storage space and reducing costs.
  • SNV (Supreme Night Visibility) for Low Light Conditions: Ensures clear images even in dimly lit environments, enhancing surveillance effectiveness at night.
  • WDR Pro to Provide Extreme Visibility: Handles challenging lighting conditions by balancing bright and dark areas in a scene, improving overall image quality.
  • Built-in IR Illuminators, effective up to 50 meters: Allows for nighttime monitoring without visible light, ensuring a discreet surveillance solution.
  • Smart IR II Technology to Avoid Overexposure: Adjusts IR intensity in relation to the zoom setting, preventing image distortion and hotspots.
  • Smart Motion Detection to Reduce False Alarms: Enhances security by accurately identifying real threats, minimizing unnecessary notification triggers.
  • Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection): Employs intelligent analytics to monitor activity and provide alerts on unusual behavior or events.
  • Trend Micro IoT Security: Protects the device from cyber threats, ensuring a secure and reliable surveillance system.
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing: Guarantees durability against harsh conditions and potential vandalism, making it suitable for outdoor use.

Vivotek IB9365-EHT-A Detailed Specifications

ModelIB9365-EHT-A
Resolution1920 x 1080
Frame Rate60 fps
Lens Type4-9mm
Night Vision RangeUp to 50 meters
Compression TechnologyH.265, H.264
Operating Temperature-50°C to 60°C
Weatherproof RatingIP66, IP67
Vandal-proof RatingIK10
Smart FeaturesSmart VCA, Smart Motion Detection, Smart Stream III
SecurityTrend Micro IoT Security
SKU  IB9365-EHT-A
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    4-9mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø 121 x 121 x 352.1 mm (w/ junction box), Ø 121 x 121 x 288.1 mm (w/o junction box)
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2" Progressive CMOS
IR LEDs  6
Minimum Scene Illumination  0.015 Lux @ F1.3 (Color), <0.005 Lux @ F1.3 (B/W), 0 Lux with IR illumination on
Operating Humidity    0.98
Operating Temperature    Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F), Working Temperature(IR on): -50°C ~ 50°C (-58°F ~ 122°F), Working Temperature(IR off): -50°C ~ 60°C (-58°F ~ 140°F)
Power Consumption  PoE: Max. 25/20 W (IR on/off), DC 12V: Max. 20.4/15 W (IR on/off), AC 24V: Max. 22/17 W (IR on/off)
Protocols  802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  68 dB
Scanning System    Progressive
Weatherproof    IP66, IP67
Digital Noise Reduction    3DNR
Angle of View    46° ~ 100° (Horizontal), 26°~52° (Vertical), 53°~120° (Diagonal)
Rotation Angle180°
Motion Detection Tracking    Five-window video motion detection
IR Distance  50m/164.042ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
