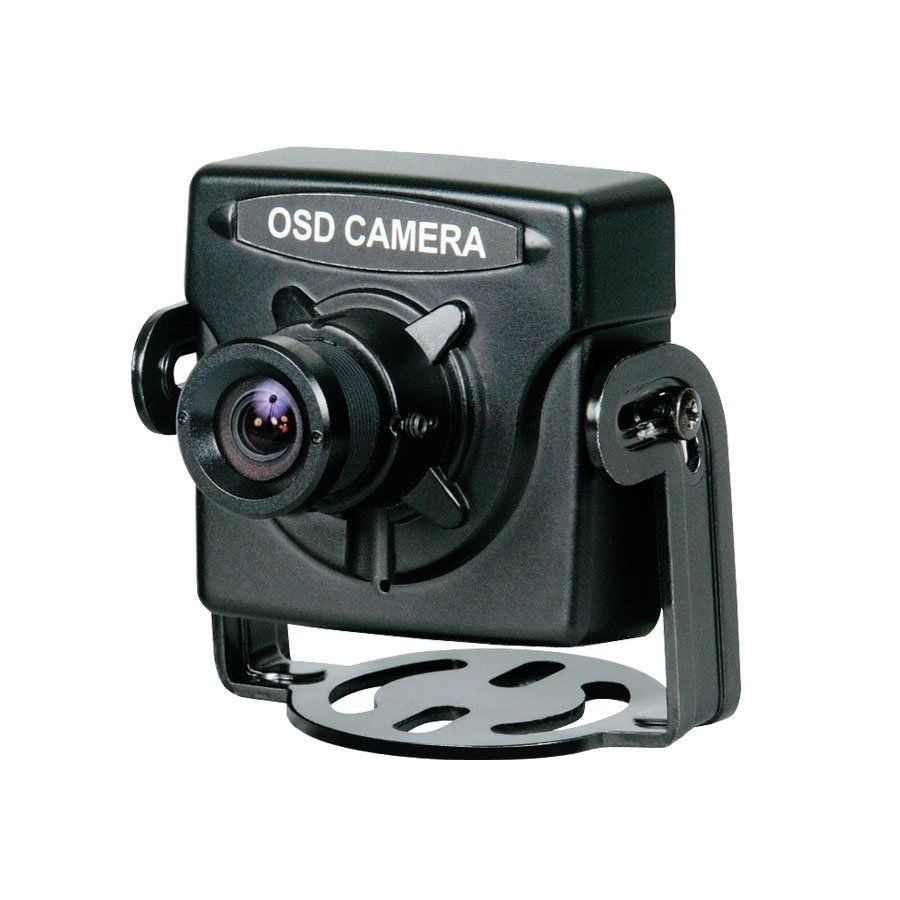

Speco HTINT40T8 1080p HD-TVI Indoor Mini Board Camera, 8mm Lens
SKU
HTINT40T8
Model No
HTINT40T8
$148.77
Product Highlights
- Sony CMOS Sensor, 2MP
- Full HD 1080p @ 30fps (over coax)
- True WDR functionality
- Superior low-light performance
- Amplify existing light with no distance limitation
Speak to an expert
The HTINT40T8 from Speco is a 1080p HD-TVI indoor mini board camera with an 8mm lens, offering high-quality video performance, exceptional low-light capabilities, and easy installation features.
Speco HTINT40T8 Camera Features
- Sony CMOS Sensor: Provides 2MP resolution for crisp, clear images and videos.
- Full HD 1080p @ 30fps: Ensures smooth and high-quality video playback over coaxial connections.
- True WDR Functionality: Delivers balanced exposure in challenging lighting conditions, improving overall image quality.
- Superior Low-Light Performance: Captures high-quality images even in dimly lit environments.
- Amplifies Existing Light: Enhances visibility without distance limitations, making it perfect for various settings.
- Full OSD Operation: Enables easy configuration and adjustments through onboard control and UTC (TVI) for user convenience.
- Scenario Presets: Allows quick settings adjustments for different shooting environments, streamlining usage.
- Additional Analog Output: Supports 960H for versatility in connection options.
- 12VDC Voltage Operation: Compatible with standard power supplies, simplifying installation.
Speco HTINT40T8 Detailed Specifications
| Camera Type | Indoor Mini Board Camera |
| Resolution | 1080p |
| Lens | 8mm |
| Sensor Type | Sony CMOS, 2MP |
| Frame Rate | 30fps |
| WDR | True WDR |
| Low-Light Performance | Superior |
| Power Supply | 12VDC |
| Output | Analog with additional 960H |
| Onboard Control | Full OSD operation |
SKU  | HTINT40T8 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range, Intensifier |
| Manufacturer | Speco |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Lens Type | Fixed |
| Lens Size | 8mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | Auto / Manual (1/60 sec. - 1/60,000 sec.) / Flicker |
| Image Device | Sony CMOS Sensor |
| Image Pixels Total | 2001 (H) x 1121 (V) |
| Image Pixels-Effective | .1985 (H) x 1105 (V) |
| Minimum Scene Illumination | 0.01 lux |
| Operating Temperature | -4° F – 140° F |
| Dimensions (W x H) | 1.34” (W) x 1.34” (H) x 1.18” (Dia.) |
| Privacy Zone | On / Off (16 zones) |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p / 75 ohms |
| Digital Noise Reduction | Off / Low / Middle / High |
| Mirror | On / Off |
| Automatic White Balance | Auto / Auto Ext / AWC ‒ SET / Manual |
| Auto Gain Control | 0 - 20 (level adjustable) |
| Motion Detection | On / Off (4 zones) |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
