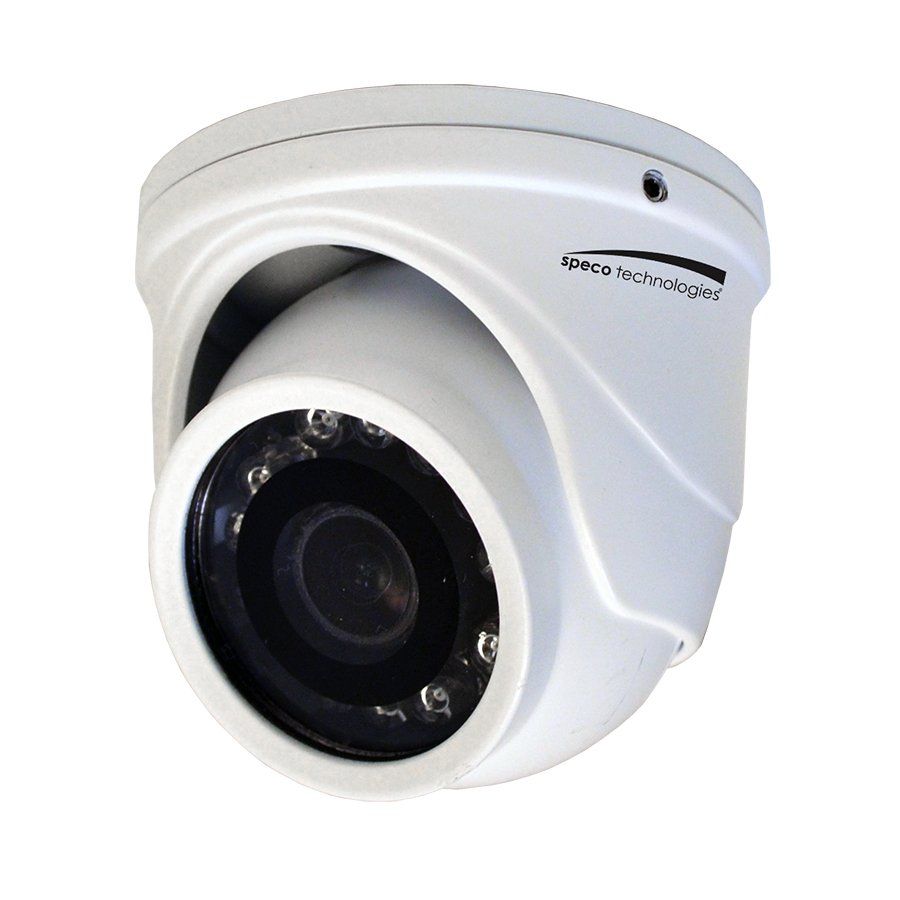

Speco HT471TW 2560 X 1440 HD-TVI Outdoor IR Dome Camera, 2.9mm Lens, White
SKU
HT471TW
Model No
HT471TW
was $127.56 Special Price $126.36
Product Highlights
- 1/3" Progressive Scan CMOS, 4MP
- Compact size - only 2.36" in diameter
- 12 IR LEDs
- Cast aluminum construction
- Signal distance up to 1600 feet
Speak to an expert
The HT471TW from Speco is a 2560 X 1440 HD-TVI Outdoor IR Dome Camera, featuring a 2.9mm lens in a sleek white design. This high-definition camera is built for both performance and durability, offering excellent image quality and robust construction suitable for outdoor use.
Speco HT471TW Camera Features
- Image Sensor: 1/3" Progressive Scan CMOS, 4MP - Ensures high-quality video resolution for clear images.
- Compact Design: Only 2.36" in diameter - Ideal for discreet installation while maintaining aesthetic appeal.
- Night Vision: 12 IR LEDs - Provides superior night visibility, allowing for effective monitoring in low-light conditions.
- Durable Build: Cast aluminum construction - Offers protection against physical damage and harsh weather.
- Long Signal Transmission: Signal distance up to 1600 feet - Facilitates remote installations without compromising signal quality.
- Full OSD Control: Full OSD operation via UTC (TVI output only) - Streamlines camera settings adjustments for user convenience.
- Vandal Resistant: Designed to withstand impact - Ensures long-term reliability in high-risk areas.
- Weatherproof Rating: IP66 compliant - Guarantees protection against dust and water ingress, ideal for outdoor environments.
- Power Supply: 12VDC operation - Compatible with standard power supplies for easy setup.
Detailed Specifications for Speco HT471TW
| Camera Type | HD-TVI Outdoor IR Dome Camera |
| Resolution | 2560 X 1440 |
| Lens | 2.9mm |
| Sensor Type | 1/3" Progressive Scan CMOS |
| Megapixels | 4MP |
| Diameter | 2.36" |
| IR LEDs | 12 |
| Signal Distance | Up to 1600 feet |
| Construction Material | Cast Aluminum |
| Vandal Resistance | Yes |
| Weather Resistance | IP66 |
| Power Requirement | 12VDC |
SKU  | HT471TW |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, On Screen Display Menu, Vandal Resistant, Weather Resistant |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Infrared Distance | 0~60 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto / Manual |
| Image Device | 1/3” Progressive Scan CMOS, 4MP |
| Image Pixels Total | 3096 (H) x 2281 (V) |
| Image Pixels-Effective | 2184 (H) x 2202 (V) |
| IR Distance | 10.66m/35ft |
| Minimum Scene Illumination | 0.00 lux (IR LED on) |
| Operating Temperature | 14° F ‒ 120° F |
| Dimensions (W x H) | 2.36” (Dia.) x 2.15” (H) |
| Power Consumption | 100mA (IR off) / 200mA (IR on) |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p / 75 ohms |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 12 |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
