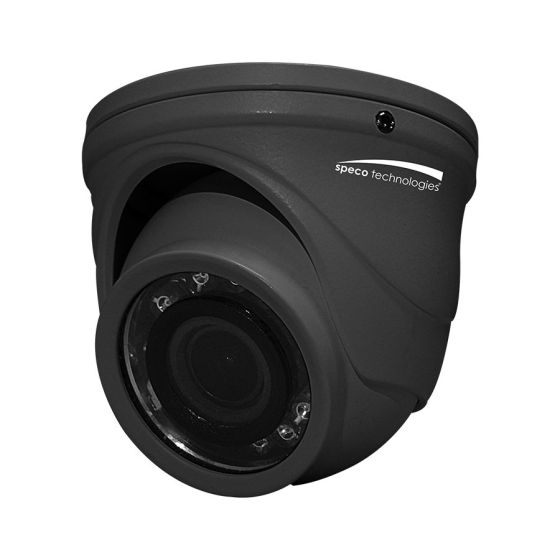

Speco HT471TG 2560 X 1440 HD-TVI Outdoor IR Dome Camera, 2.9mm Lens, Dark Gray
SKU
HT471TG
Model No
HT471TG
$122.24
Product Highlights
- 1/3" Progressive Scan CMOS, 4MP
- Compact size - only 2.36" in diameter
- 12 IR LEDs
- Cast aluminum construction
- Signal distance up to 1600 feet
Speak to an expert
The HT471TG is a Speco 2560 X 1440 HD-TVI Outdoor IR Dome Camera, featuring a 2.9mm lens and a sleek dark gray design. This camera is perfect for high-definition surveillance, equipped with advanced features that ensure top-notch performance in various environmental conditions.
Speco HT471TG Camera Features
- 1/3" Progressive Scan CMOS, 4MP: Captures high-resolution images with exceptional clarity, allowing for detailed monitoring in any lighting conditions.
- Compact Size: Measuring only 2.36" in diameter, it enables discreet installation without compromising on performance.
- 12 IR LEDs: Provides excellent night vision capabilities, ensuring 24/7 surveillance even in complete darkness.
- Cast Aluminum Construction: Built for durability, withstands significant impact and tampering attempts.
- Signal Distance up to 1600 Feet: Offers versatile installation options without loss of video clarity.
- Full OSD Operation via UTC: Streamlines camera management and settings adjustments using the TVI output.
- Vandal Resistant: Designed to deter vandalism, keeping your surveillance system secure.
- IP66 Compliant: Weather-resistant design ensures reliable operation in harsh outdoor conditions.
- 12VDC Operation: Compatible with common power supplies, simplifying setup and integration.
Speco HT471TG Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | Speco HT471TG |
| Resolution | 2560 x 1440 |
| Lens | 2.9mm |
| Sensor Type | 1/3" Progressive Scan CMOS |
| Megapixels | 4MP |
| IR LEDs | 12 |
| Diameter | 2.36 inches |
| Signal Distance | Up to 1600 feet |
| Construction | Cast Aluminum |
| Vandal Resistance | Yes |
| Weather Resistance | IP66 |
| Power Supply | 12VDC |
SKU  | HT471TG |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, On Screen Display Menu, Vandal Resistant, Weather Resistant |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Infrared Distance | 0~60 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto / Manual |
| Image Device | 1/3” Progressive Scan CMOS, 4MP |
| Image Pixels Total | 3096 (H) x 2281 (V) |
| Image Pixels-Effective | 2184 (H) x 2202 (V) |
| IR Distance | 10.66m/35ft |
| Minimum Scene Illumination | 0.00 lux (IR LED on) |
| Operating Temperature | 14° F ‒ 120° F |
| Dimensions (W x H) | 2.36” (Dia.) x 2.15” (H) |
| Power Consumption | 100mA (IR off) / 200mA (IR on) |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p / 75 ohms |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 12 |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
