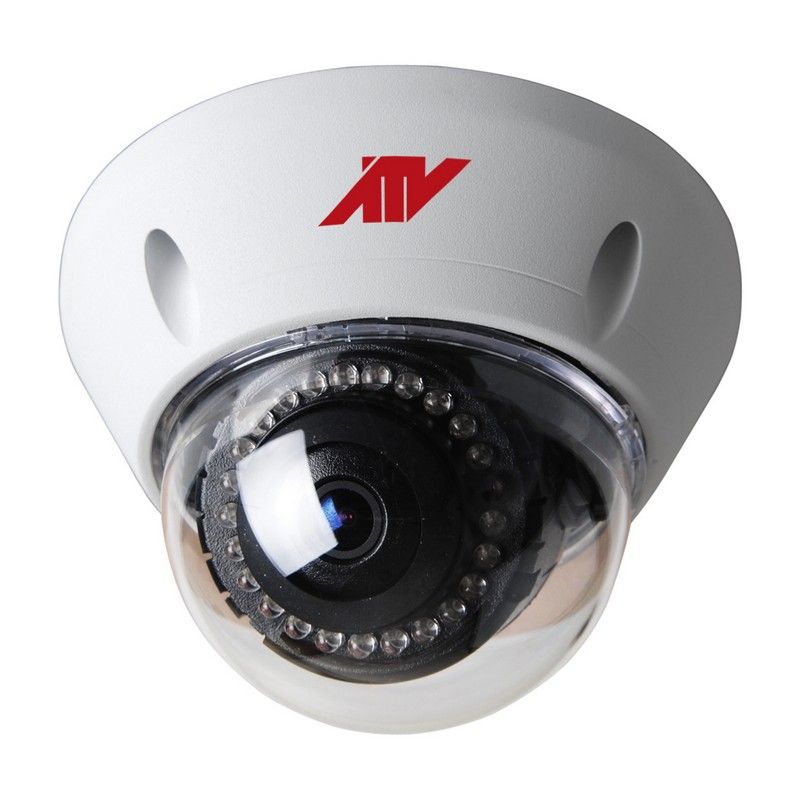

ATV HDV228 2 Megapixel Outdoor Analog IR Vandal Dome Camera, 2.8mm Lens
SKU
HDV228
Model No
HDV228
$100.42
Product Highlights
- 2.8mm Fixed Lens
- AHD and CVBS Protocol selectable --- Engineered to work with ATV's HD Analog and Legacy DVR's for Maximum Stability and Performance
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
Speak to an expert
The HDV228 from ATV is a 2 Megapixel Outdoor Analog IR Vandal Dome Camera featuring a 2.8mm Lens. This camera combines high-definition video quality with robust outdoor capabilities, making it ideal for security applications.
ATV HDV228 Camera Features
- 2.8mm Fixed Lens: Provides a wide field of view, allowing for efficient monitoring of larger areas.
- High Definition Analog Technology: Utilizes existing coax cables and BNC connectors, enabling easy upgrades to megapixel video images without the need for rewiring.
- AHD and CVBS Protocol Selectable: Engineered for compatibility with both ATV’s HD Analog and Legacy DVRs, ensuring maximum stability and performance.
- ATVision Remote Management Software: Includes client software for Windows and Mac, along with mobile applications for Apple and Android, providing convenient remote monitoring capabilities.
ATV HDV228 Detailed Specifications
| Camera Resolution | 2 Megapixels |
| Lens Type | 2.8mm Fixed Lens |
| Protocol | AHD and CVBS Selectable |
| Connectivity | Analog over Coax, BNC Connectors |
| Operating Temperature | -40°C to 60°C |
| Compliance | Vandal-resistant Design |
SKU  | HDV228 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ATV |
Camera Signal  | Analog, HD-AHD |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Fixed |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto, 1/30, 1/60, FLK~1/50,000sec |
| Image Device | 1/2.9” Sony Exmor CMOS |
| IR Distance | Indoor: 25m/82ft, Outdoor: 18.89m/62ft |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 1.0Lux (Color), 0Lux (BW, IR LED On) |
| Operating Humidity | 0~96% (Non-Condencing) |
| Operating Temperature | -4~122°F (-20~+50ºC) |
| Dimensions (W x H) | Ø 5.67 x 3.85 in (Ø144 x 98 mm) |
| Power Consumption | Max. 4.3Watts (360mA) |
| Privacy Zone | Off/On (4 Zone) |
| S/N Ratio | More Than 50dB (AGC O) |
| Scanning System | Progressive |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D / 3D |
| Backlight Compensation | Off/BLC/HSBLC |
| Automatic White Balance | ATW/AWC/Indoor/Outdoor/Manual/AWB |
| Auto Gain Control | 1~15 |
| IR LEDs | 24 |
| Motion Detection | Off/On (4 Zone) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
