ICRealtime Model HDEG-E50F-IR-M1

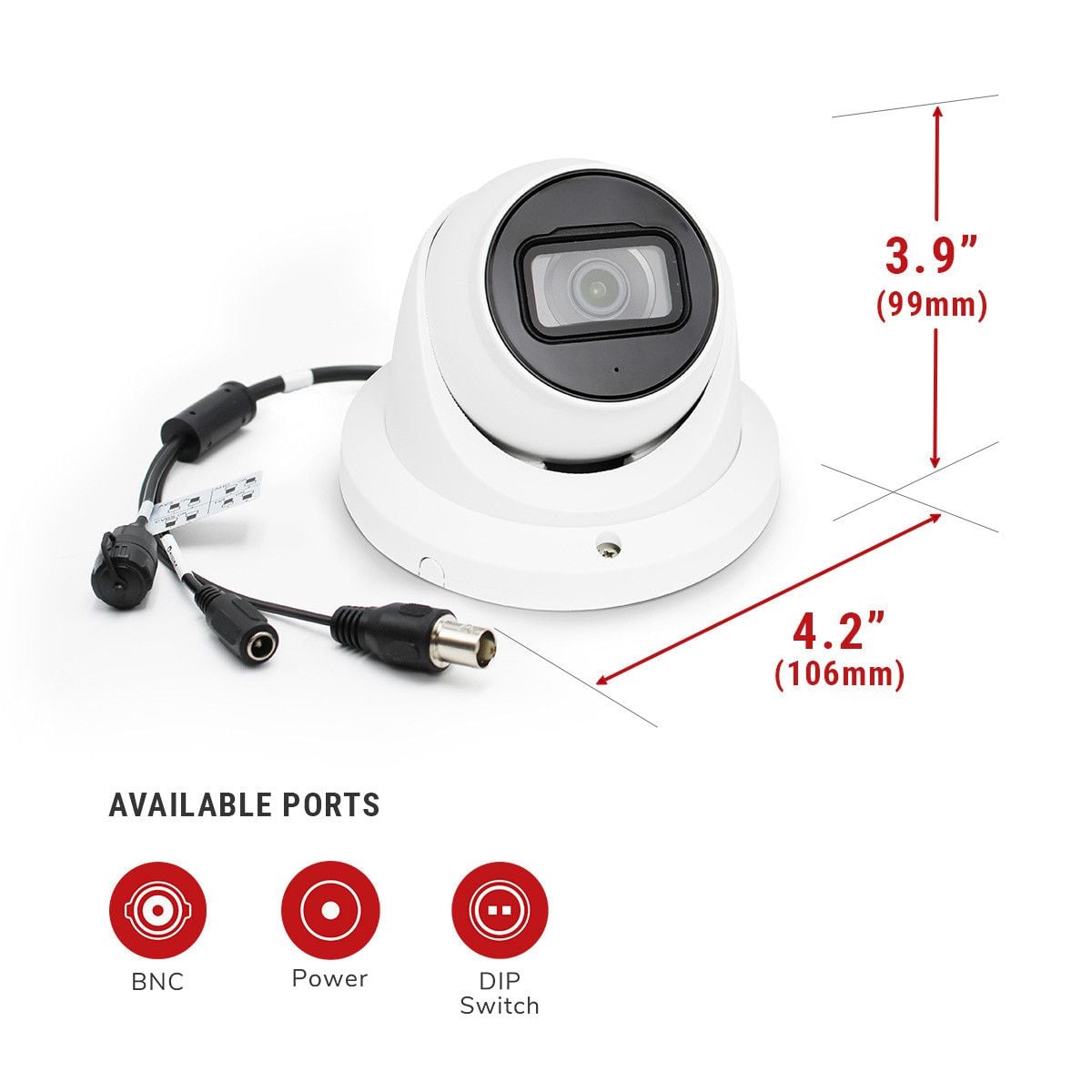

ICRealtime HDEG-E50F-IR-M1 5 Megapixel Network Outdoor Dome Camera with 2.8mm Lens
- 5MP
- 2.8mm
- Night Vision
- Outdoor
- 25 fps@5MP (16:9 video output)
- AVS/ AHD/ TVI/ CVBS multi format output
- Starlight, 120 dB true WDR, 3D NR
- 2.8 mm fixed lens
- Smart IR, Max. IR length 196 feet

Overview
IC Realtime’s HDEG-E50F-IR-M1 is a 5 megapixel HD-AVS eyeball style camera featuring a 16:9 aspect ratio. This eyeball turret style camera is equipped with a 2.8mm fixed lens paired with 120dB true WDR and Starlight support. This enables excellent image quality under the most demanding lighting conditions. The camera also includes Smart IR with a max IR length of 196 feet and audio provided with a built-in microphone, all housed in a tough, IP67 weather protected casing.
The camera offers exceptional installation flexibility with AVS/ AHD/ TVI and CVBS multi format support and HD quality images with the simplicity of reusing existing coaxial infrastructure as well as compatibility with many third party coaxial recorders.
Features
- 25 fps@5MP (16:9 video output) - Provides smooth video playback and clarity for high-resolution needs.
- AVS/ AHD/ TVI/ CVBS multi format output - Ensures compatibility with a variety of recording devices for flexibility in installation.
- Starlight, 120 dB true WDR, 3D NR - Enhances visibility in low light conditions and reduces noise for clearer images.
- 2.8 mm fixed lens - Offers a wide field of view to capture more of the scene.
- Smart IR, Max. IR length 196 feet - Allows for effective night vision capabilities for security monitoring.
- Built-in Mic, IP67, 12V DC ±30% - Provides audio support alongside video and ensures durable performance in various weather conditions.
ICRealtime HDEG-E50F-IR-M1 Detailed Camera Specifications
| Camera Type | 5 Megapixel Network Outdoor Dome Camera |
| Lens | 2.8 mm Fixed Lens |
| Max Resolution | 5 MP |
| Aspect Ratio | 16:9 |
| Infrared Range | Up to 196 feet |
| WDR | 120 dB True WDR |
| Weather Rating | IP67 |
| Power Supply | 12V DC ±30% |
| Multi Format Support | AVS/ AHD/ TVI/ CVBS |
| Frame Rate | 25 fps@5MP |
| Audio | Built-in Microphone |
Built-in Functions
- Audio
- Back Light Compensation
- Automatic White Balance
- Day/Night
- Digital Noise Reduction
- Mirror
- Wide Dynamic Range
- Auto Gain Control
Specifications
