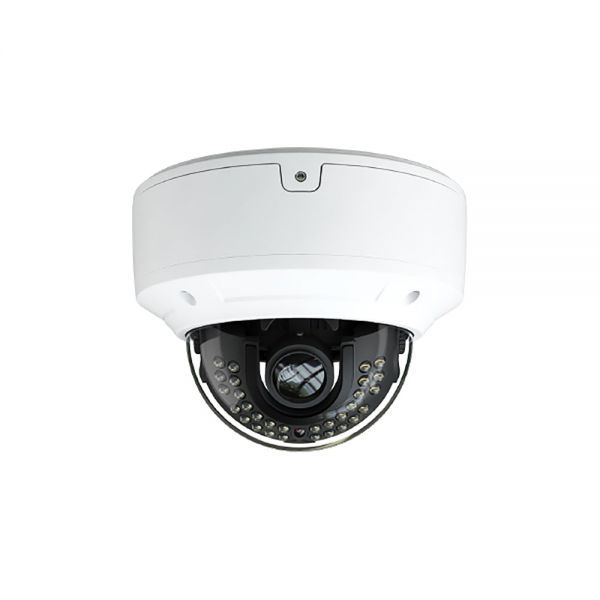

ENS HDC-VPD5AE3-MZ 5 Megapixel Analog Outdoor IR Dome Motorized Security Camera, 2.8-12mm Lens

SKU
HDC-VPD5AE3-MZ
Model No
HDC-VPD5AE3-MZ
$189.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5MP@20fps/4MP@30fps high resolution, true color
  • AHD / TVI / CVI / CVBS standard and lossless video output
  • Up to 1500 TVL resolution
  • CMOS progressive scan, perfectly capture the moving object
  • Support OSD menu

The HDC-VPD5AE3-MZ from ENS is a 5 MP Analog Outdoor IR Dome Motorized Security Camera designed to deliver exceptional surveillance capabilities. With its versatile 2.8-12mm lens and impressive IR night vision up to 98 ft, this camera ensures high-quality filming in various lighting conditions, making it an excellent choice for both commercial and residential security needs.

ENS HDC-VPD5AE3-MZ Camera Features

  • High Resolution: 5MP@20fps/4MP@30fps, providing true color and sharp details for clear image feedback.
  • Versatile Compatibility: Supports AHD, TVI, CVI, and CVBS standards, allowing for lossless video output across various systems.
  • Superior TVL Resolution: Achieves up to 1500 TVL, ensuring clear images and enhanced surveillance capabilities.
  • Advanced Image Capture: Utilizes a CMOS progressive scan to perfectly capture moving objects without blurring.
  • User-Friendly OSD Menu: Supports on-screen display menu for easy camera configuration and settings management.
  • Real-Time Transmission: High-speed, long-distance video transmission ensures reliable monitoring.
  • Automatic Illumination Adjustment: Switches from color to black/white during low light conditions for optimal visibility.
  • Day/Night Functionality: Features an ICR switch for true day/night capabilities and DWDR for improved dynamic range.
  • Noise Reduction: Supports a noise reduction function for clearer video even in challenging environments.
  • Effective Night Vision: Provides a 20-30m IR night view distance for round-the-clock surveillance.
  • Robust Protection: IP66 and IK10 rated for excellent weather resistance and protection against vandalism.
  • Cost-effective Operation: Supports COC for easier installation and maintenance.

Detailed Specifications for ENS HDC-VPD5AE3-MZ

Camera TypeMotorized Analog Dome
Resolution5 Megapixel
Frame Rate20fps at 5MP / 30fps at 4MP
Zoom Lens2.8-12mm
IR DistanceUp to 98 ft
Standard CompatibilityAHD, TVI, CVI, CVBS
Max TVL1500 TVL
Image SensorCMOS Progressive Scan
Night Vision FunctionalityICR switch, true day/night
Weather Resistance RatingIP66
Vandal Resistance RatingIK10
Power Supply12VDC
SKU  HDC-VPD5AE3-MZ
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  ENS
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Resolution    2592 X 1944
Sensor Option    1/2.7" CMOS
Lens Type    Varifocal
Lens Size    2.8-12mm
Infrared Distance    61~100 Feet
Durability    Vandal Resistant, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC )
Image Device    1 / 2.7" CMOS
IR Distance  30m/98ft
Minimum Scene Illumination  Color : 0.01 [email protected], AGC ON; B/W : 0 lux with IR
Operating Humidity    10 % ~ 90 %(relative humidity)
Operating Temperature    - 30 °C ~ 50 °C
Dimensions (W x H)  Ф 114.2 x 150.4mm
Power Consumption  IR OFF : < 1W; IR ON : < 4W
S/N Ratio  ≥52dB ( AGC OFF )
Weatherproof    IP66
Digital Noise Reduction    2D NR
Rotation Angle0°~360°
Automatic White Balance    Auto
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
