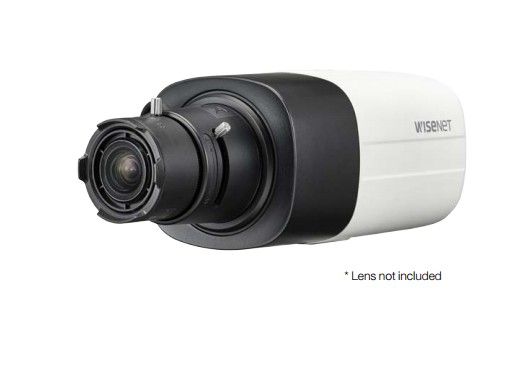

Hanwha Vision HCB-6001 1080p Analog HD Box Camera
SKU
HCB-6001
Model No
HCB-6001
$156.60
Product Highlights
- Full HD(1920 x 1080, 30fps) resolution
- [email protected](Color), [email protected](B/W)
- Day & Night(ICR), WDR(120dB)
- SSNR, Motion detection
- Transmission distance max.500m
Speak to an expert
1080p Analog HD Box Camera
- The HCB-6001 from Hanwha Vision is a WiseNet HD+ 2MP, Full HD(1080p) 30fps box camera that supports AHD/TVI/CVI/CVBS formats. It features 120 dB True WDR, RS485/Coaxial Control, Simple Focus, and True Day/Night functionality, making it an ideal choice for high-quality surveillance in various lighting conditions.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Coaxitron
Day/Night Vision
3D DNR
Motion Detection
On Screen Display Menu
Privacy Masking
WDR
Camera Features
| Full HD (1920 x 1080, 30fps) resolution | SSNR, Motion detection |
| [email protected] (Color), [email protected] (B/W) | Transmission distance max.500m |
| Day Night (ICR), WDR (120dB) | Easy installation (Plug play), Dual power, RS-485 |
Additional Hanwha Vision Products
SKU  | HCB-6001 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Coaxitron, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | Dual Voltage |
| Electronic Shutter | 1sec~ 1/12,000sec |
| Image Device | 1/2.8" 2M CMOS |
| Image Pixels Total | 1,945(H) x 1,109(V) 2.16M pixels |
| Image Pixels-Effective | 1,945(H) x 1,097(V) 2.13M pixels |
| Minimum Scene Illumination | Color : 0.09 Lux(F1.2) B/W : 0.009 Lux(F1.2) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | 73.1× 67.2 × 123.9mm (2.9" × 2.6" × 4.9") |
| OSD Menu | Multi-language Support(16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Power Consumption | Max. 6W |
| Privacy Zone | Off / On (4zones rectangle) |
| Protocols | Coax : Pelco-C(coaxitron), ACP(AHD Coax Protocol) RS-485 : Samsung T/E, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Scanning System | Progressive Scan |
| Video Output | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Digital Noise Reduction | SSNR ( Off / On) |
| Backlight Compensation | Off / User BLC / HLC / WDR |
| Automatic White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Auto Gain Control | Off / Low / Middle / High / Very High |
| Motion Detection | Off / On(4 zones) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
