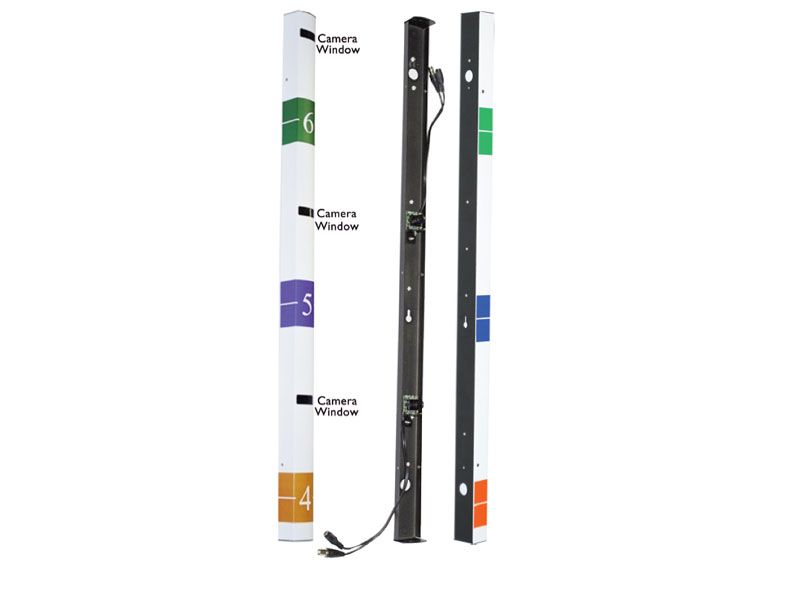

Height Strip cameras can be coupled with ceiling-mounted CCTV cameras to augment businesses’ surveillance capabilities. The ceiling cameras capture the subject’s height as he or she passes the height strip while the camera on-board the Height Strip captures facial images. Businesses that install height strip tape without an on-board camera run the risk of failing to capture facial images of subjects wearing a hat or hood. The Aigis Height Strip Camera was designed with ease of installation and high adjustability in mind. The curved front surface of the unit and tinted viewing windows allow the camera to be rotated for site-specific adjustments. The camera’s 3.0mm IR corrected wide-angle lens provides a 78° horizontal field of view. The camera can be turned 22° left and right of center to capture the desired view. Cable entry through the top, bottom, or rear of the unit allows the unit to be installed in a wide variety of environments. Equip the unit with an additional accessory camera and mount the Height Strip Camera between two doors to cover both entrance and exit with a single unit. Side-facing cameras can be installed to provide a profile shot across a doorway while the other on-board cameras face into the business.
Linear HC1CH30-6N Height Strip Camera Features
Onboard CCTV camera: included with base model for immediate surveillance capability.
High-Resolution Imaging: 650TVL Color Hi-Res Camera with a 3.0mm wide-angle lens for clear, detailed images.
Energy Efficiency: Low power consumption of less than 3W, reducing operational costs.
Sturdy Build: Durable aluminum construction ensures longevity and reliability.
Multi-Camera Capability: Accepts up to five cameras, allowing for extensive coverage options.
Covert Design: Cameras mount discreetly behind half-foot markers for a sleek appearance.
Standard Compatibility: Fits most standard door frames (1.75” thickness) for versatile installation.
