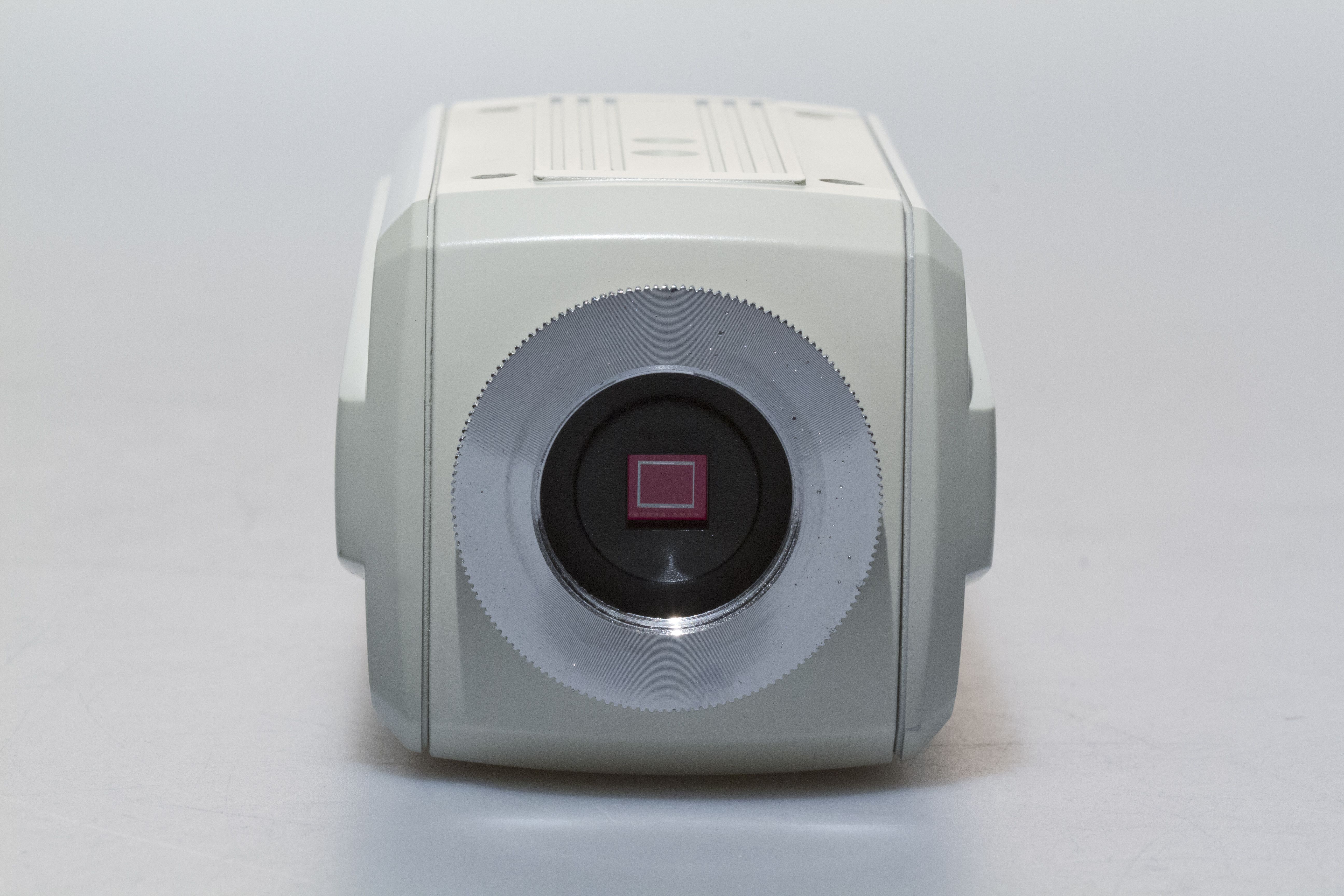

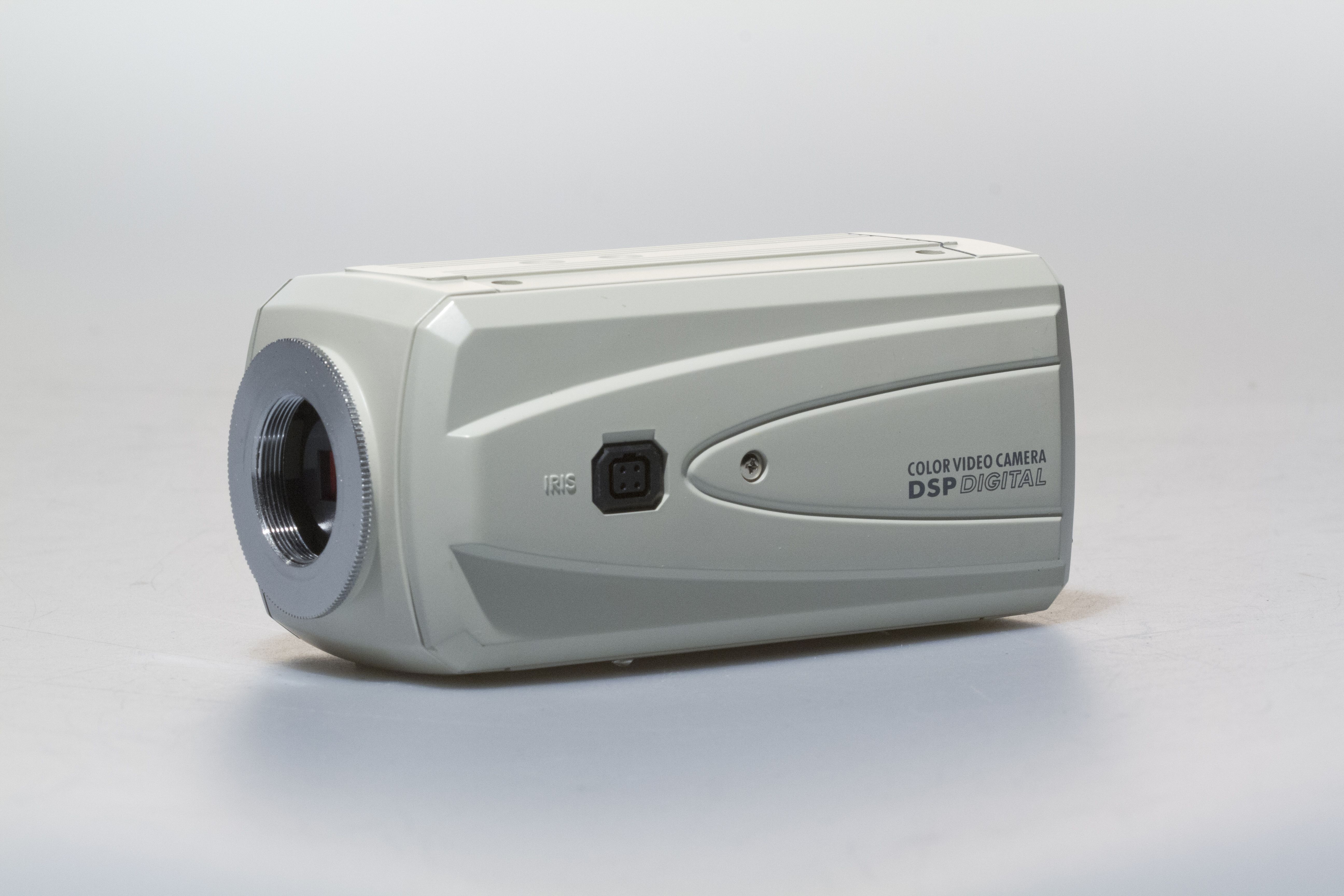

CNB GN685CA UC2 480 TVL Analog Indoor Box Camera, No Lens
SKU
GN685CA UC2
Model No
GN685CA UC2
$20.96
Product Highlights
- 480 TVL analog indoor box camera
- No lens
Speak to an expert
The GN685CA UC2 from CNB is a 480 TVL analog indoor box camera featuring a sleek design and reliable performance, making it an ideal choice for indoor surveillance applications. With its exceptional image clarity and ease of installation, you can trust the GN685CA UC2 to provide quality monitoring for your space.
CNB GN685CA UC2 Camera Features
- Resolution: 480 TVL - Ensures clear and detailed images for effective monitoring.
- Design: Indoor box camera - Compact design allows for easy placement in various indoor environments.
- Compatibility: No lens included - Offers flexibility to choose the perfect lens that fits your specific needs.
- Durability: Built for longevity - Manufactured with high-quality materials to withstand indoor conditions.
Detailed Camera Specifications for CNB GN685CA UC2
| Model | GN685CA UC2 |
| Type | Analog Indoor Box Camera |
| Resolution | 480 TVL |
| Lens | No lens included |
| Operating Environment | Indoor |
| Dimensions | Compact Design |
SKU  | GN685CA UC2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Wide Dynamic Range |
| Manufacturer | CNB |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | NTSC: 1/60 ~ 1/10000 ; PAL 1/50 ~ 1/10000 |
| Image Device | 2:1 Interalce Transfer 1/3 Inch Double Scan CCD |
| Image Pixels-Effective | NTSC: 768(H) x 494(V), PAL: 752(H) x 582(V) |
| Minimum Scene Illumination | 0.1 Lux(DSS 2FLD, Color), 0.001 Lux(DSS Max, Color), 0.0003 Lux(DSS Max, BW) |
| Operating Temperature | -10°C~+50°C (Recommendation: -5°C~+40°C) |
| Dimensions (W x H) | 65 x 59.6 x 122.5mm |
| Power Consumption | 600 mA 7.2W (Max) |
| S/N Ratio | More than 50dB (AGC Off / BW Mode) |
| Signal System | NTSC/PAL |
| Video Output | Composite: 1.0V p-p, 75Ω, Unbalanced |
| Synchronization | Internal / External Sync. |
| Backlight Compensation | On/Off Selectable |
| Automatic White Balance | AWB (AUTO, HOLD, USER) |
| Auto Gain Control | Off / Low / Mid / High Selectable |
| Flickerless | On/Off Selectable |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
