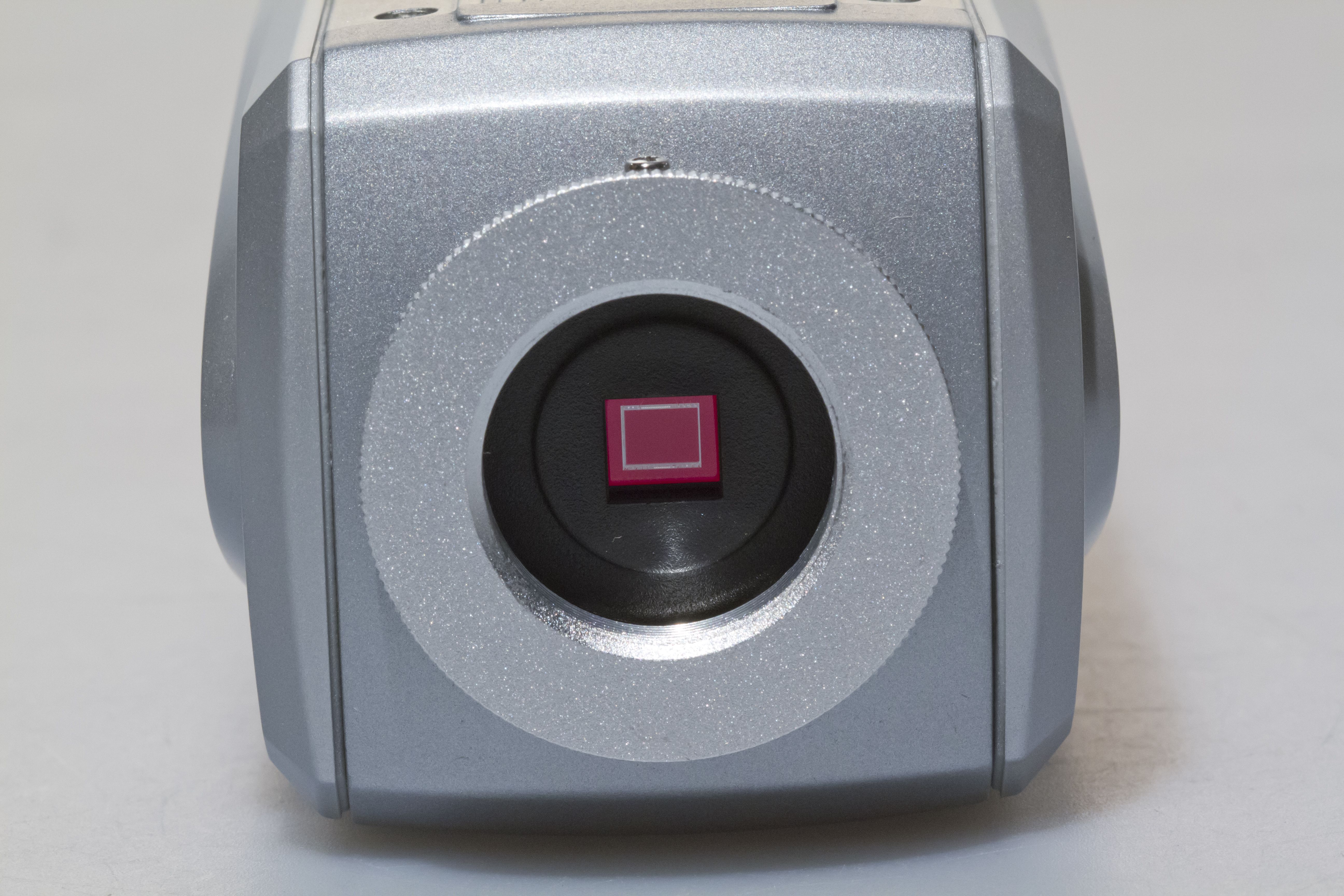

CNB GN685CA KC1 480 TVL Analog Indoor Box Camera, No Lens
SKU
GN685CA KC1
Model No
GN685CA KC1
$20.96
Product Highlights
- 480 TVL analog indoor box camera
- No lens
Speak to an expert
The GN685CA KC1 from CNB is a 480 TVL analog indoor box camera, no lens. This reliable camera combines affordability with performance, ensuring you capture high-quality video for security needs. Designed for easy integration in various indoor settings, it offers solid features that enhance your surveillance experience.
CNB GN685CA KC1 Camera Features
- Resolution: 480 TVL - Provides clear images to aid in the identification of subjects.
- Analog Output: Simplified installation with compatibility for existing analog systems, reducing setup complexity.
- Indoor Use: Optimized for indoor environments, making it ideal for homes, offices, and retail spaces.
- No Lens: Allows flexibility to choose a compatible lens based on specific monitoring needs.
- Compact Design: Fits discreetly into various locations without occupying much space.
Detailed Specifications for CNB GN685CA KC1
| Camera Type | Analog indoor box camera |
| Resolution | 480 TVL |
| Lens | No lens included |
| Installation Location | Indoor only |
| Output Type | Analog |
| Dimensions | Compact size for versatile mounting |
SKU  | GN685CA KC1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Flickerless |
| Manufacturer | CNB |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | NTSC: 1/60 ~ 1/100,000 ; PAL 1/50 ~ 1/100,000 |
| Image Device | 2:1 Interalce Transfer 1/3 Inch SUPER HAD CCD |
| Image Pixels-Effective | High Resolution: NTSC - 768(H) x 494(V), PAL - 752(H) x 582(V); Normal Resolution: NTSC - 510(H) x 492(V), PAL - 500(H) x 582(V) |
| Minimum Scene Illumination | High Resolution: 0.3Lux (F1.4, 30IRE, AGC On) ; Normal Resolution: 0.1Lux (F1.4, 30IRE, AGC On) |
| Operating Temperature | -10°C~+50°C (Recommendation: -5°C~+40°C) |
| Dimensions (W x H) | 124 x 62 x 57mm |
| Power Consumption | 2.8W (Max.) |
| S/N Ratio | More than 48dB (AGC Off) |
| Signal System | NTSC/PAL |
| Video Output | Composite: 1.0V p-p, 75Ω, Unbalanced |
| Synchronization | High Resolution: Internal/External ; Normal Resolution: Internal |
| Backlight Compensation | On/Off Selectable |
| Automatic White Balance | AWB |
| Auto Gain Control | High Resolution: On / Off Selectable (20dB), Normal Resolution: On / Off Selectable (28dB) |
| Flickerless | On/Off Selectable |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
