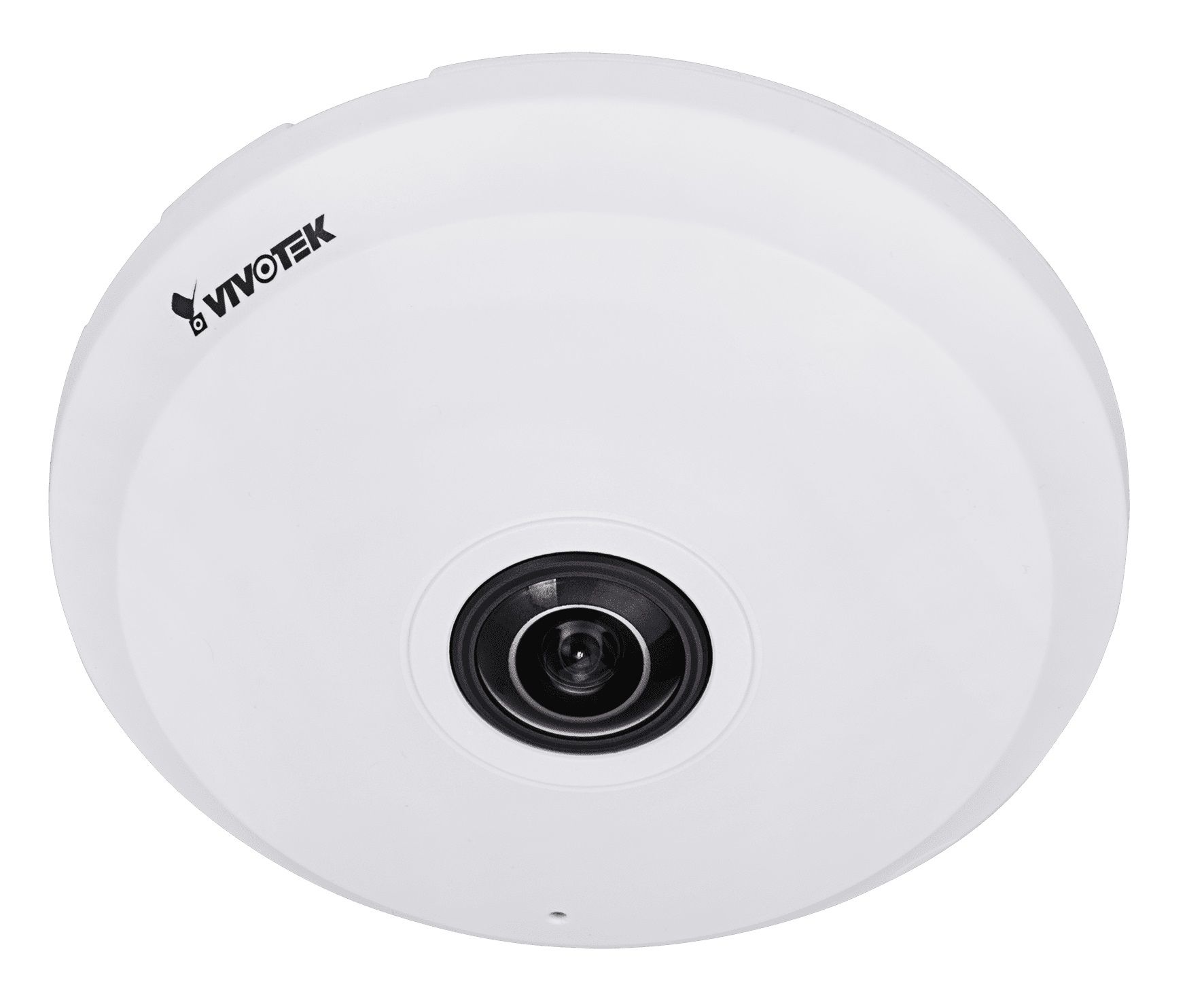

Vivotek FE9191 12 Megapixel Network IR Indoor 360° Camera, 1.29mm Lens

SKU
FE9191
Model No
FE9191
$838.46
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 12-Megapixel CMOS Sensor
  • Real-time H.265, H.264 and MJPEG Compression (Triple Codec)
  • 20 fps @ 2816x2816
  • 1.29 mm Panomorph Lens for 180° Panoramic View and 360° Surround View
  • Removable IR-cut Filter for Day & Night Function

The FE9191 from Vivotek is next generation of market-leading 12-Megapixel 360° panomorph network cameras, both featuring a detailed 12-Megapixel CMOS sensor which guarantees superb image quality. Utilizing the latest in panomorph lens technology for 180° panoramic view (wall mount) or 360° surround view (ceiling/wall mount) with zero blind spots, these cameras are able to provide comprehensive coverage of open areas such as airports, shopping malls, parking lots, retail stores, offices and more.

3D Noise Reduction technology enables the cameras to capture clear, polished video under low-light conditions. The FE9191 use of the latest in panomorph lens technology has led to much improved image quality with a huge drop in edge distortion.

The FE9191 will also be the first to include a new wave of advanced Video Content Analyses (VCA), including better object detection in order to reduce false alarms. Through advanced Video Content Analyses functions including crowd detection features the FE9191 is the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.

Vivotek FE9191 Camera Features

  • 12-Megapixel CMOS Sensor: Guarantees superb image quality for detailed surveillance footage.
  • Real-time H.265, H.264 and MJPEG Compression: Supports triple codec for efficient video storage and transmission.
  • 20 fps @ 2816x2816: Provides high frame rates for smooth video playback, essential for identifying movements clearly.
  • 1.29 mm Panomorph Lens: Offers 180° panoramic view or 360° surround view, ensuring comprehensive coverage with no blind spots.
  • Removable IR-cut Filter: Enables day and night functionality for clear video at all times.
  • Panoramic PTZ Function: Allows monitoring of detailed regional views, combining pan-tilt-zoom capabilities in one device.
  • Trend Micro IoT Security: Enhances cybersecurity within the standard warranty period, protecting sensitive footage.
  • ePTZ for Data Efficiency: Provides electronic PTZ functionality, allowing users to zoom in on important areas without sacrificing image quality.
  • Client Side Dewarping: Enables users to adjust the view of the video feed for best angles and perspectives.
  • Pixel Calculator: Measures image clarity, aiding users in ensuring optimal image quality.
  • 802.3at PoE Compliance: Simplifies installation by allowing power and data to be delivered over a single cable.
  • Built-in MicroSD/SDHC/SDXC Card Slot: Offers on-board storage for easy video recording management.

Vivotek FE9191 Detailed Specifications

Camera TypeNetwork IR Indoor Camera
Sensor Type12 Megapixel CMOS
Viewing Angle180° Panoramic or 360° Surround
Compression FormatsH.265, H.264, MJPEG
Resolution2816x2816
Framerate20 fps
Lens Type1.29 mm Panomorph Lens
IR-cut FilterRemovable for Day & Night Use
Power Supply802.3at PoE Compliant
StorageMicroSD/SDHC/SDXC Card Slot
Security FeaturesTrend Micro IoT Security
ePTZ SupportYes
SKU  FE9191
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    12 Megapixel
Lens Type    Fixed
Mount Type  Ceiling
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  Ø 139 x 37 mm
Electronic Shutter    1/5 sec. to 1/16,000 sec.
Image Device    1/1.7" Progressive CMOS
Minimum Scene Illumination  0.18 Lux @ F2.2 (Color) <0.001 Lux @ F2.2 (B/W)
Operating Humidity    90%
Operating Temperature    Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) , Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 6.49 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X ,SSL/ TLS, ARP, CIFS/SMB
S/N Ratio  42.9 dB
Angle of View    180° (horizontal) , 180° (vertical) , 180° (diagonal)
Motion Detection Tracking    Five-window video motion detection
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
