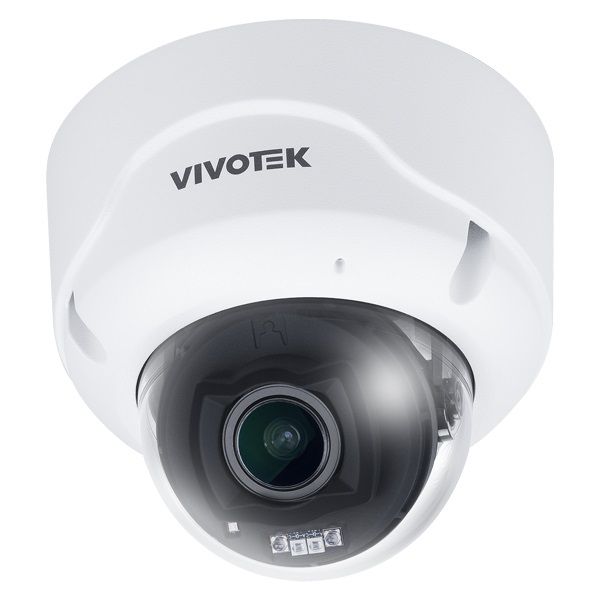

Vivotek FD9399-EHTV 8 Megapixel Outdoor Fixed Dome Camera with 4.3-9.8mm Lens
SKU
FD9399-EHTV
Model No
FD9399-EHTV
$658.73
Product Highlights
- AI-powered Smart Motion Detection and Smart VCA
- Real Sight Engine for unparalleled visibility
- Built-in IRs up to 40M
- IP66/IK10/NEMA 4X Protection
- Signed Firmware, Secure Boot, TPM 2.0
Speak to an expert
The Vivotek FD9399-EHTV is an advanced 8 megapixel outdoor fixed dome camera equipped with a versatile 4.3-9.8mm lens. It provides exceptional image clarity, enhanced security features, and robust environmental protection, making it an ideal choice for comprehensive surveillance in various settings.
Vivotek FD9399-EHTV Camera Features
- AI-powered Detection: Incorporates Smart Motion Detection and Smart VCA for precise object tracking and real-time alerts, enhancing overall security.
- Real Sight Engine: Ensures crystal-clear images even in motion, eliminating blur without manual adjustments for superior image quality.
- Built-in IR LEDs: Offers night vision capabilities up to 40 meters, ensuring reliable operation in low light conditions.
- Weatherproof & Vandal-proof: Compliant with IP66, IK10, and NEMA 4X standards, ensuring durability in harsh environments and protection against tampering.
- Secure Firmware: Features Signed Firmware, Secure Boot, and TPM 2.0 to safeguard sensitive data and prevent unauthorized access.
Vivotek FD9399-EHTV Detailed Specifications
| Camera Type | Outdoor Fixed Dome |
| Megapixels | 8 MP |
| Lens Type | 4.3-9.8mm Varifocal Lens |
| IR Distance | Up to 40 meters |
| Weather Resistance | IP66, IK10, NEMA 4X |
| AI Features | Smart Motion Detection, Smart VCA |
| Security Features | TPM 2.0, Secure Boot, Signed Firmware |
| Video Compression | H.265, H.264 |
SKU  | FD9399-EHTV |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
Camera Signal  | Network IP |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.3-9.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Dimensions (W x H) | ø 134 x 116 mm |
| Image Device | 1/1.8" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.02 lux @ F1.6 (Color), <0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 54 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D-DNR |
| Rotation Angle | 350° |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
