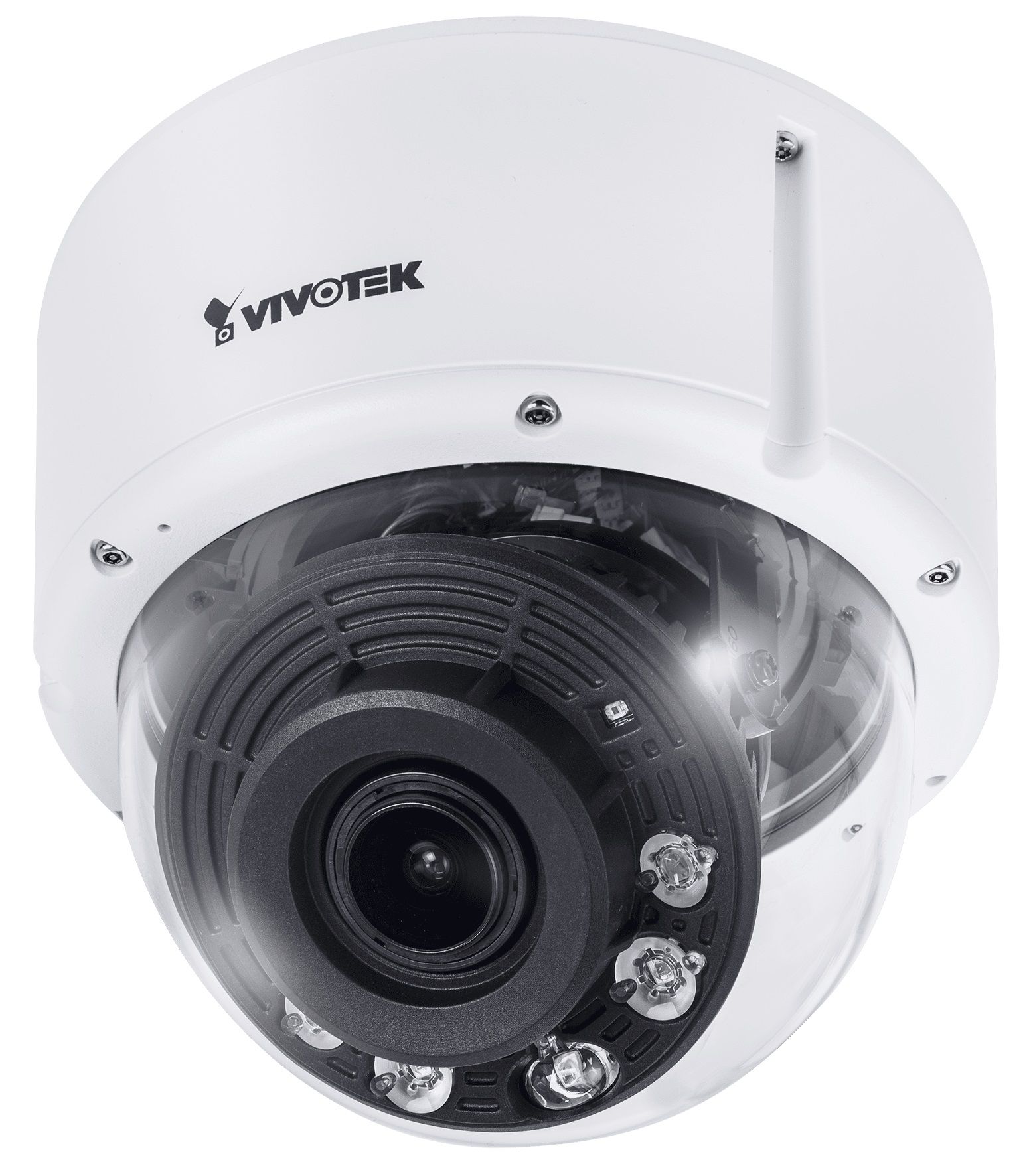

Vivotek FD9391-EHTV 2 Megapixel 4K Outdoor IR Fixed Dome Network Camera, 3.9-10mm
SKU
FD9391-EHTV

Vivotek Model FD9391-EHTV

Vivotek FD9391-EHTV 2 Megapixel 4K Outdoor IR Fixed Dome Network Camera, 3.9-10mm

  • 2MP
  • 3.9–10mm
  • Night Vision
  • Outdoor
Free shipping
Model No
FD9391-EHTV
$919.82
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 30 fps @ 3840x2160 (WDR Pro on)
  • 120 fps @ 1920x1080 (WDR Pro off)
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in IR Illuminators, Effective up to 50 Meters

Overview

The FD9391-EHTV from Vivotek is the new flagship outdoor dome network camera, equipped with a 4K ultra HD sensor capable of 3840 x 2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the FD9391-EHTV is capable of capturing the highest quality images in high contrast environments.

The FD9391-EHTV also supports standard 1920x1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the FD9391-EHTV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth of more than 90%* while still maintaining excellent image quality. Protecting all these features is the FD9391-EHTV's IP66, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.

Vivotek FD9391-EHTV Camera Features

  • H.265 Compression Technology: Reduces bandwidth by over 90% while maintaining excellent image quality.
  • 30 fps @ 3840x2160 (WDR Pro on): Captures clear and detailed images at ultra HD resolution.
  • 120 fps @ 1920x1080 (WDR Pro off): Ideal for tracking fast-moving subjects with fluid motion.
  • Smart Stream III: Optimizes bandwidth efficiency without compromising image quality.
  • Built-in IR Illuminators: Effective up to 50 meters, ensuring visibility in complete darkness.
  • Smart IR II Technology: Prevents overexposure by adjusting the IR intensity based on the scene.
  • WDR Pro: Provides unparalleled visibility in scenes with extreme brightness or darkness.
  • SNV (Supreme Night Visibility): Enhances night performance in low light conditions for clearer images.
  • Weather-proof IP66-rated: Protects against dust and heavy rain, suitable for outdoor use.
  • Vandal-proof IK10 and NEMA4X-rated Housing: Designed for durability in harsh environments.
  • -50°C ~ 60°C Wide Temperature Range: Operates effectively in extreme weather conditions (IR Off).
  • Trend Micro IoT Security: Ensures the camera is secure from cyber threats during the standard warranty period.
  • Smart Motion Detection: Minimizes false alarms by intelligently analyzing motion.

Vivotek FD9391-EHTV Detailed Specifications

Camera Sensor2 Megapixel 4K Ultra HD
Resolution3840 x 2160 pixels
Frame Rate30 fps @ 4K, 120 fps @ 1080p
Lens3.9-10mm
Weatherproof RatingIP66
Vandal-proof RatingIK10
Operating Temperature-50°C to 60°C
IR RangeUp to 50 meters
Video CompressionH.265, H.264
Smart FeaturesSmart Stream III, Smart Motion Detection
Security FeaturesTrend Micro IoT Security

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  FD9391-EHTV
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  Ø 155 x 138 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2" Progressive CMOS
Minimum Scene Illumination  0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W), 0 Lux with IR illumination on
Operating Humidity    90%
Operating Temperature    Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F), Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
Power Consumption  Max: 25 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS/SSL
S/N Ratio  60.5 dB
Weatherproof    IP66
Digital Noise Reduction    3D DNR
Angle of View    45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
Rotation Angle180°
IR Distance  50m/164ft
