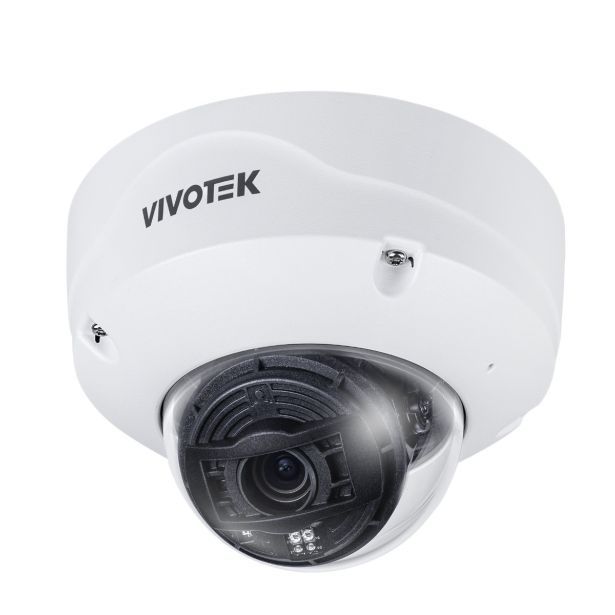

Vivotek FD9391-EHTV-v2 8 Megapixel 4K Outdoor IR Fixed Dome Network Camera, 4.4-10.2mm Lens
SKU
FD9391-EHTV-v2
Model No
FD9391-EHTV-v2
$1,329.04
Product Highlights
- 30 fps @ 3840x2160
- H.265 Compression Technology with Smart Stream III
- Installation-friendly Design
- Weather-proof IP66, IP67, IP6K9K and Vandal-proof IK10+, NEMA 4X-rated Protection
- SNV (Supreme Night Visibility) for Low Light Conditions
Speak to an expert
The FD9391-EHTV-v2 is a newly revamped outdoor fixed dome network camera that delivers 3840x2160 (4K/8MP) resolution at up to 30 fps. This well-designed, outdoor-ready camera features a built-in microphone, I/O functionality, the most up to date VIVOTEK SNV, WDR Pro, and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IP6K9K, IK10+, NEMA 4X and wide temperature range from -40°C to 60°C without heaters making it ideal for wide-ranging outdoor surveillance scenarios.
Vivotek FD9391-EHTV-v2 Camera Features
- 30 fps @ 3840x2160: Experience high-quality video with stunning clarity and detail, essential for effective surveillance.
- H.265 Compression Technology with Smart Stream III: Reduces bandwidth and storage requirements while maintaining excellent video quality.
- Installation-friendly Design: Simplifies the installation process, saving time and reducing labor costs.
- Weather-proof IP66, IP67, IP6K9K and Vandal-proof IK10+, NEMA 4X-rated Protection: Ensures durability and reliability in harsh outdoor environments.
- SNV (Supreme Night Visibility) for Low Light Conditions: Enhances night surveillance, providing visibility in dimly lit areas.
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments: Delivers clear images in challenging lighting conditions.
- Built-in IR Illuminators up to 50M with Smart IR III: Facilitates nighttime surveillance with adjustable illumination.
- Signed Firmware and Secure Boot: Enhances security, protecting the camera from unauthorized access.
- AI-powered Smart Motion Detection and Smart VCA: Increases accuracy in identifying and tracking moving objects, minimizing false alarms.
- Cyber Protection via Trend Micro IoT Security: Offers robust cybersecurity, safeguarding camera data and privacy.
Vivotek FD9391-EHTV-v2 Detailed Specifications
| Model | FD9391-EHTV-v2 |
| Resolution | 3840x2160 (4K/8MP) |
| Frame Rate | Up to 30 fps |
| Lens | 4.4-10.2mm |
| Weatherproof Rating | IP66, IP67, IP6K9K |
| Vandal-proof Rating | IK10+, NEMA 4X |
| Operational Temperature | -40°C to 60°C |
| IR Range | Up to 50M |
| Compression Technology | H.265 with Smart Stream III |
| Cybersecurity | Trend Micro IoT Security |
SKU  | FD9391-EHTV-v2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.4-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | ø 174 x 123 mm |
| Electronic Shutter | 1 sec. to 1/100,000 sec. |
| Image Device | 1/1.8" Progressive CMOS |
| Minimum Scene Illumination | 0.01 lux @ F1.38 (Color) <0.005 lux @ F1.38 (B/W) 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F) (IR of f ), -50°C ~ 50°C (-58°F ~ 122°F) (IR on) |
| Power Consumption | PoE: Max. 14.25/10.81 W (IR on/of f ), DC 12V: Max. 14.40/10.96 W (IR on/of f ), AC 24V: Max. 11.64/8.20 W (IR on/of f ) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 58 dB |
| Weatherproof | IPP/IP67 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 110° ~ 43° (Horizontal), 57° ~ 24° (Vertical), 133° ~ 49° (Diagonal) |
| Rotation Angle | ±175° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
