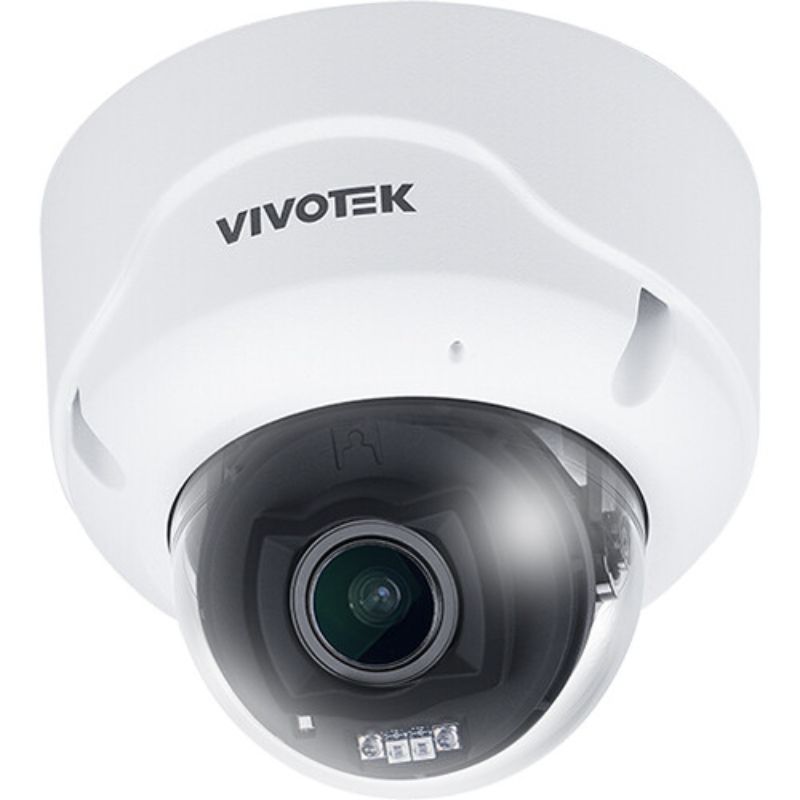

Vivotek FD939-EHTV 8 Megapixel Network IR 4K Outdoor AI Dome Camera with 4.3-9.8mm Lens
- Premium Series
- 8 MP
- 4.3~9.8mm
- WDR Pro
- IP66/IK10
Vivotek's Premium Dome AI Camera makes surveillance effortless with no NVR required. No more complex setups—just scan the QR code to connect instantly and stream live footage from any device, anywhere. Enjoy clear imaging, AI-powered insights, and seamless scalability with a simple, plug-and-play experience.
Monitor Anywhere, Anytime, Any Device
Vivotek unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.
AI Analytics for Comprehensive Surveillance
Vivotek provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.
Capture with Incredible Clarity
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.
Excel in harsh environments
Premium Dome AI Cameras support IK10 impact resistance and IP66 weatherproofing, ensuring durability in harsh conditions.
Features
- Premium Series
- 8 MP
- 4.3~9.8mm
- WDR Pro
- IP66/IK10
- FCC/CE/UL/NDAA/TAA
SKU  | FD939-EHTV |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Day/Night, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.3-9.8mm |
| Mount Type | Ceiling, Wall |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | ø 134 x 116 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Image Device | 1/1.8" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4,NTP,RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UD |
| Weatherproof | IP66, IK10 |
| Angle of View | 110.4° ~ 45.1° (Horizontal) 57.9° ~ 25.4° (Vertical) 133.9° ~ 51.8°(Diagonal) |
| Rotation Angle | 350° |
| IR Distance | 40m/131ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
Premium_Bullet_Dome-Specsheet FD839-EHTV-V2-Quick-Installation-Guide
