Vivotek FD9389-EHTV-V3 5 Megapixel Outdoor Fixed Dome Camera with 2.8-12 mm Lens
SKU
FD9389-EHTV-V3
Model No
FD9389-EHTV-V3
$567.57
Product Highlights
- AI-powered Smart Motion Detection and Smart VCA
- Real Sight Engine for unparalleled visibility
- Built-in IRs up to 40M
- IP66/IK10/NEMA 4X Protection
- Signed Firmware, Secure Boot, TPM 2.0
Speak to an expert

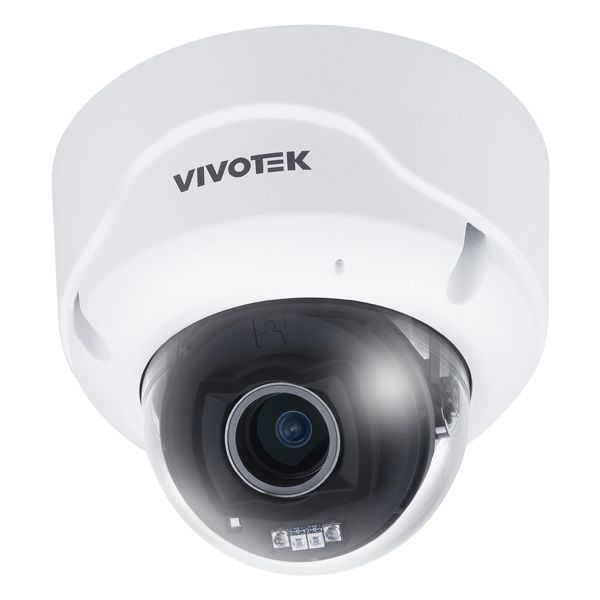

The FD9389-EHTV-V3 from Vivotek is a 5 megapixel network IP outdoor IR fixed dome camera equipped with a versatile 2.8-12mm lens, delivering exceptional image clarity and security performance for various outdoor environments.
Vivotek FD9389-EHTV-V3 Camera Features
- AI-powered Smart Motion Detection: Enhances security by accurately identifying and tracking moving objects to reduce false alarms.
- Real Sight Engine: Eliminates motion blur for clear details in dynamic scenes, ensuring high-quality images without manual adjustments.
- Built-in IR LEDs up to 40M: Provides excellent night vision capabilities, allowing for effective surveillance even in low-light conditions.
- IP66/IK10/NEMA 4X Protection: Ensures the camera is weather-resistant, vandal-proof, and anti-corrosive, making it suitable for harsh environments.
- Signed Firmware and Secure Boot with TPM 2.0: Offers robust data protection and system integrity, safeguarding sensitive information against unauthorized access.
Vivotek FD9389-EHTV-V3 Detailed Specifications
| Camera Type | 5 Megapixel Network IP Outdoor IR Fixed Dome |
| Lens | 2.8-12 mm Variable Lens |
| Resolution | 5 Megapixels |
| IR Distance | Up to 40M |
| Weather Resistance | IP66, IK10, NEMA 4X |
| Encryption | TPM 2.0, Signed Firmware, Secure Boot |
| Audio Support | Two-way audio available |
| Installation | Easy cabling with interchangeable components |
SKU  | FD9389-EHTV-V3 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
Camera Signal  | Network IP |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Dimensions (W x H) | ø 134 x 116 mm |
| Image Device | 1/2.8" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 55 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D-DNR |
| Rotation Angle | 350° |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
