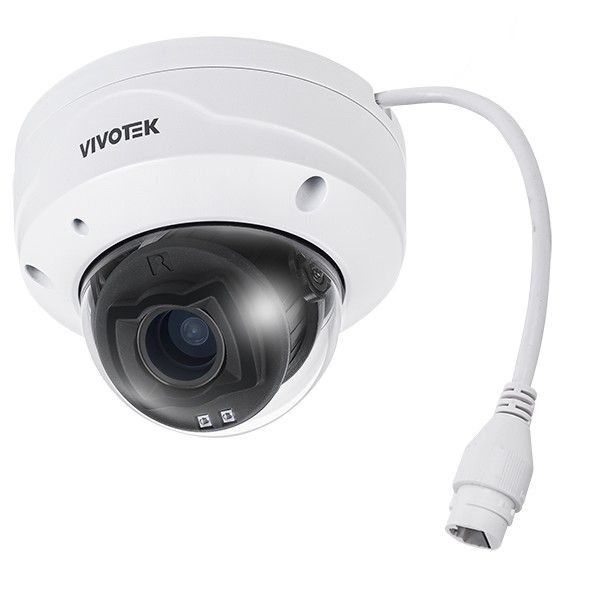

Vivotek FD9383-HTV 5 Megaapixel Outdoor Fixed Dome AI Camera with 2.8-12mm Lens

SKU
FD9383-HTV
Model No
FD9383-HTV
$401.15
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • WDR Pro for Unparalleled Visibility
  • Built-in IRs up to 30M with Smart IR III
  • AI-powered Smart Motion Detection and Smart VCA
  • Cyber Protection via Trend Micro IoT Security
  • Signed Firmware and Secure Boot

The Vivotek FD9383-HTV is a state-of-the-art 5 Megaapixel Outdoor Fixed Dome AI Camera that combines cutting-edge imaging technology and robust outdoor durability. Featuring a 2.8-12mm vari-focal lens, this camera delivers superior image quality through advanced AI analytics, providing unmatched security solutions for any environment.

Vivotek FD9383-HTV Camera Features

  • Imaging Performance: Experience class-leading image performance with Sony image sensor and STARVIS 2 technology; ensures clarity and precision across lighting conditions.
  • Daylight Clarity: Captures stunning visuals with vibrant colors, providing optimal surveillance performance during the day.
  • Enhanced Visibility in Harsh Lighting: Maintains clear images in challenging light conditions with WDR technology, reducing glare and shadowing.
  • Nighttime Vision: Exceptional low-light color performance delivers well-exposed images in dim environments.
  • AI Powerhouse: Offers advanced analytics to enhance security solutions; efficient object identification by attributes such as color, gender, and type.
  • Object Detection Performance: Effortlessly manages over 25 detection objects for advanced AI analytics.
  • Smart VCA: AI-Powered Video Analytics minimize bandwidth and storage usage while improving scene awareness data collection.
  • Vision Object Analytics: Simplifies user judgment through automated investigation for improved efficiency.
  • Design: Meticulously designed to deliver a comprehensive surveillance solution across hardware and software domains.
  • Vari-Focal Model: Offers 4.3x zoom capability to adapt to various surveillance needs.
  • IP66 + IK10: Weather-resistant and vandal-proof, ensuring durability in extreme conditions.

Specifications

Camera ModelVivotek FD9383-HTV
Resolution5 MegaPixels
Lens Type2.8-12mm Vari-Focal
Weather-ResistanceIP66 Rating
Vandal ResistanceIK10 Rating
Night VisionIR Range up to 30M with Smart IR III
AI FeaturesSmart Motion Detection, Smart VCA
Cyber ProtectionTrend Micro IoT Security
Firmware SecuritySigned Firmware and Secure Boot
SKU  FD9383-HTV
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Connection Type  Wired
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  ø133.7mm x 103.8mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.8" Progressive CMOS
IR LEDs  2
Minimum Scene Illumination  0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on
Operating Humidity    90%
Operating Temperature    Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F), Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off), -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Power Consumption  Max. 9.7 W/ 7.2 W
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
S/N Ratio  59 dB
Weatherproof    IP66|IK10
Zoom Ratio    4x on IE plug-in, 12x built-in
Digital Noise Reduction    3DNR
Angle of View    95.4° ~ 28.7° (Horizontal), 68.8° ~ 21.5° (Vertical), 129.6° ~ 35.9°(Diagonal)
Rotation Angle350°
Motion Detection Tracking    Motion Detection (Five-window video motion detection)
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
