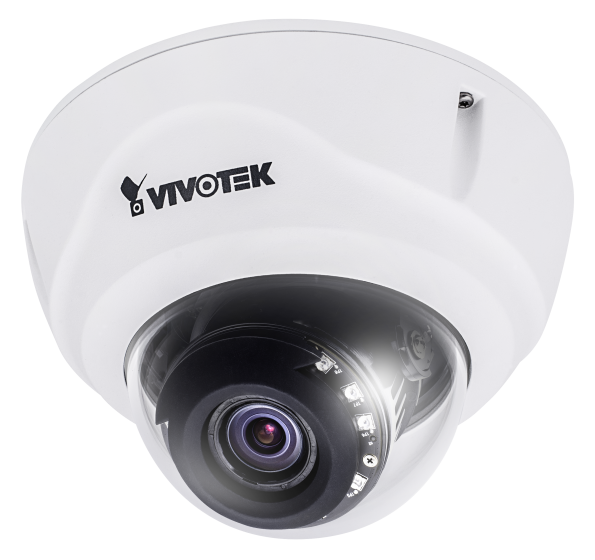

Vivotek FD9381-EHTV 5 Megapixel Dome Network IR Camera, 4 -9 mm

SKU
FD9381-EHTV
Model No
FD9381-EHTV
$779.52
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • H.265 Compression Technology
  • 1/1.8" Progressive CMOS Sensor
  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • Smart Stream II to Optimize Bandwidth Efficiency
  • WDR Pro for Unparalleled Visibility in High Contrast Environments

The FD9381-EHTV from Vivotek is a brand-new professional H.265 high-efficiency outdoor dome network camera, offering 30 fps @ 5-Megapixel or 60 fps @ 1080p with outstanding image quality. By employing H.265 technology, the camera is able to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II technology enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the FD9381-EHTV can reduce bandwidth and storage consumption by up to 80%* while retaining exceptional 5-Megapixel image quality.

Vivotek FD9381-EHTV Camera Features

  • H.265 Compression Technology: This advanced compression technique provides better image quality while significantly reducing bandwidth usage.
  • 1/1.8" Progressive CMOS Sensor: Ensures high-quality imaging with improved light sensitivity for better performance in various lighting conditions.
  • 30 fps @ 2560x1920, 60 fps @ 1920x1080: High-frame rates deliver smooth video, ideal for capturing fast-moving subjects.
  • Smart Stream II to Optimize Bandwidth Efficiency: Dynamically adjusts quality based on scene requirements, maintaining efficiency without sacrificing performance.
  • WDR Pro for Unparalleled Visibility in High Contrast Environments: Enhanced wide dynamic range capability ensures clear images even in challenging lighting situations.
  • Built-in IR Illuminators, Effective up to 30 Meters: Ensures clear night-time surveillance, extending visibility beyond usual limits.
  • Remote Focus for Easy Focus Adjustments: Provides user-friendly operation for maintaining optimal focus without physical adjustments.
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Durable construction ensures reliability in harsh outdoor environments.
  • Extreme Weather Support with PoE: Allows installation in extreme conditions, utilizing Power over Ethernet for simplified setup.
  • SNV (Supreme Night Visibility) for Low Light Conditions: Delivers exceptional performance during low-light scenarios, ensuring detailed imaging.
  • P-iris Lens: Offers precise control over aperture settings for improved depth of field and image clarity.
  • Video Rotation for Corridor View: Flexible viewing options allow for effective monitoring of narrow spaces.
  • DIS (Digital Image Stabilization): Reduces blurriness caused by vibrations, providing sharp and clear footage.

Vivotek FD9381-EHTV Detailed Specifications

Camera TypeDome Network IR Camera
Max Resolution5 Megapixels
Compression FormatH.265, H.264
Field of View4 - 9 mm Lens
IR RangeEffective up to 30 Meters
Power InputPower over Ethernet (PoE)
Waterproof RatingIP66
Dustproof RatingIK10
Operating Temperature-40°C to 60°C
Digital ZoomYes
DimensionsØ 120 x 110 mm
WeightApprox. 1.3 kg
SKU  FD9381-EHTV
Features  Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    4-9mm
Mount Type  Wall
Compression Method    H.265
Durability    Weather Resistant
Voltage  PoE
Dimensions (W x H)  Ø 155 x 103 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec
Image Device    1/1.8" Progressive CMOS
Minimum Scene Illumination  0.04 Lux @ F1.3 (Color), 0.001 Lux @ F1.3 (B/W)
Operating Temperature    -40°C ~ 50°C (-40°F ~ 122°F)
Power Consumption  Max. 25.5 W (Heater on)
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
S/N Ratio  57 dB
Weatherproof    IP66
Digital Noise Reduction    3D
Angle of View    45° ~ 93° (Horizontal), 34° ~ 68° (Vertical), 64° ~ 121° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
IR Distance  30m/98.42ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
