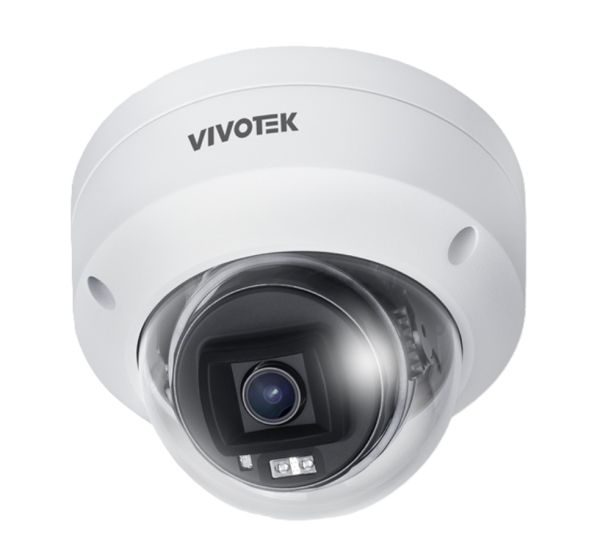

Vivotek FD9380-HV-V2 5 Megapixel Network IP Outdoor IR Dome Camera with 2.8mm Lens
SKU
FD9380-HV-V2
Model No
FD9380-HV-V2
$195.00
Product Highlights
- 5 Megapixel high-resolution video quality
- Outdoor IR capability for low-light conditions
- 2.8mm lens for wide-angle viewing
- Durable dome design for enhanced protection
- Network IP for easy remote access
Speak to an expert
The Vivotek FD9380-HV-V2 is a high-performance 5 megapixel network IP outdoor IR dome camera designed for robust surveillance. With exceptional image quality, advanced analytics, and durable construction, this camera provides reliable security solutions for various environments.
Vivotek FD9380-HV-V2 Camera Features
- 5MP Resolution: Capture sharp, detailed footage at 30 fps, ensuring no frame loss for enhanced visibility and evidence collection.
- WDR Pro Technology: Equipped with Wide Dynamic Range Pro to deliver high-quality images in challenging lighting conditions, ensuring no important details are lost.
- Smart IR Technology: Automatically adjusts infrared intensity for optimal exposure in low-light conditions, with an effective range of up to 30M for reliable nighttime vision.
- IK10 Certified Metal Housing: Vandal-resistant design ensures the camera can withstand impacts while maintaining a polished appearance over time.
- Trend Micro IoT Security: Provides enhanced cyber protection, safeguarding the camera from potential threats and unauthorized access.
Detailed Specifications of Vivotek FD9380-HV-V2
| Camera Type | 5 Megapixel Outdoor IR Dome Camera |
| Resolution | 2560 x 1920 pixels |
| Frame Rate | 30 fps |
| Lens | 2.8mm |
| IR Range | Up to 30M |
| Housing Material | Metal with IK10 certification |
| Analytics Feature | Vision Object Analytics |
| Cybersecurity | Trend Micro IoT Security |
SKU  | FD9380-HV-V2 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 117.2 x 89.6 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Image Device | 1/2.7" Progressive CMOS |
| Minimum Scene Illumination | 0.055 lux @ F1.6 (Color) , 0.005 lux @ F1.6 (B/W) , 0 lux with IR illumination on |
| Operating Humidity | 90% RH (non-condensing) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | DC12V: Max. 6.24W , PoE: Max. 6.38W, typical 3.6 W |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 58 dB |
| Weatherproof | IP66 , IP67 , IK10 |
| Angle of View | 111.0° (Horizontal) , 59.0° (Vertical) , 133.0° (Diagonal) |
| Rotation Angle | 350° |
| Motion Detection Tracking | Motion Detection (Five-window video motion detection) |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
