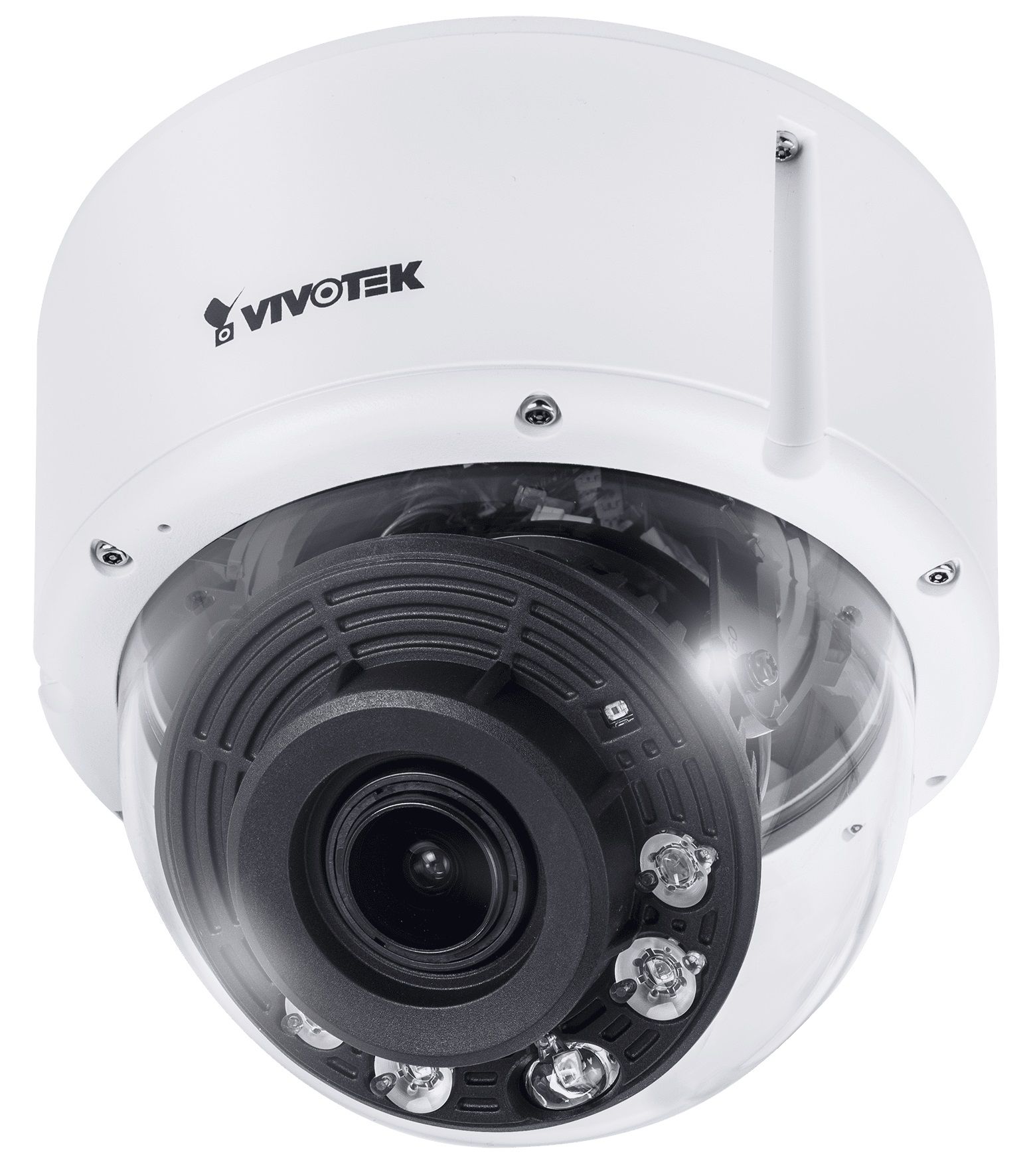

Vivotek FD9365-HTV 2 Megapixel Network IR Outdoor Dome Camera, 4-9mm Lens

SKU
FD9365-HTV
Model No
FD9365-HTV
$574.74
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 60 fps @ 1920x1080
  • H.265 Compression Technology
  • 4 ~ 9 mm, Remote Focus, P-iris Lens
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV II (Supreme Night Visibility) for Low Light Conditions

The FD9365-HTV from Vivotek is the new flagship outdoor dome network camera from Vivotek, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated Vivotek SNV and WDR Pro technology, the FD9365-HTV is capable of capturing the highest quality images in both low light and high contrast environments.

The FD9365-HTV also offers the best in night time surveillance technology. By adopting Smart IR II technology from Vivotek speed domes, the FD9365-HTV IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.

Additionally, the FD9365-HTV employs Vivotek's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the Vivotek VADP (Vivotek Application Development Platform) allows users to add customized programs for various applications and user scenarios.

Vivotek FD9365-HTV Camera Features

  • 60 fps @ 1920x1080: Experience smooth and detailed Full HD video for clear surveillance.
  • H.265 Compression Technology: Reduce bandwidth consumption by over 90% while retaining outstanding image quality.
  • 4 ~ 9 mm, Remote Focus, P-iris Lens: Enjoy flexibility in focal length with enhanced image clarity.
  • Smart Stream III to Optimize Bandwidth Efficiency: Maximize storage and bandwidth savings without sacrificing video quality.
  • SNV II (Supreme Night Visibility) for Low Light Conditions: Capture clear images in complete darkness, ensuring reliable surveillance at night.
  • WDR Pro II for Unparalleled Visibility in Extremely Bright and Dark Environments: Achieve perfectly balanced images even with challenging lighting conditions.
  • Built-in IR Illuminators, Effective up to 50 Meters: Enhance night vision capabilities for expansive outdoor coverage.
  • Smart IR II Technology to Avoid Overexposure: Get well-lit images without glaring or distortion during nighttime.
  • Smart Motion Detection to Reduce False Alarms: Increase security accuracy with reliable motion detection features.
  • Trend Micro IoT Security within Standard Warranty Period: Safeguard your devices and data with top-tier security measures.
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Ensure camera durability against harsh weather and physical impacts.

Detailed Camera Specifications

FeatureDetails
ModelFD9365-HTV
Resolution1920x1080
Frame Rate60 fps
Lens Type4-9 mm, Remote Focus, P-iris
Compression TechnologyH.265
IR RangeUp to 50 meters
WeatherproofingIP66-rated
Vandal ResistanceIK10-rated
Smart TechnologiesSmart Stream III, SNV II, WDR Pro II
Security FeaturesTrend Micro IoT Security
SKU  FD9365-HTV
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    4-9mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø 155 x 138 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2" Progressive CMOS
Image Pixels-Effective5
Minimum Scene Illumination  0.04 Lux @ F1.3 (Color), 50IRE , 0.002 Lux @ F1.3 (Color), 30IRE , 0 Lux with IR LED on
Operating Humidity    90%
Operating Temperature    Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) , Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Power Consumption  Max. 11.9 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
S/N Ratio  66 dB
Weatherproof    IP66
Angle of View    46° ~ 120° (Horizontal) , 26° ~ 60° (Vertical) , 53° ~ 152° (Diagonal)
Rotation Angle180°
Motion Detection Tracking    Five-window video motion detection, human detection, time filter
IR Distance  50m / 164.04 ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
