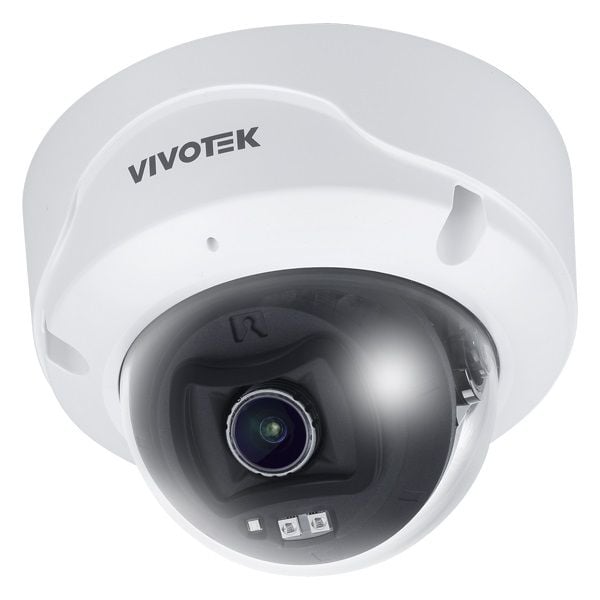

Vivotek FD9199-H 8 Megapixel Indoor Fixed Dome Camera with 4.2mm Lens
SKU
FD9199-H
Model No
FD9199-H
$642.04
Product Highlights
- HDMI output for public display
- AI-powered Smart Motion Detection and Smart VCA
- Real Sight Engine for unparalleled visibility
- Built-in IRs up to 30M
- Signed Firmware, Secure Boot, TPM 2.0
Speak to an expert
The Vivotek FD9199-H is an advanced 8 Megapixel indoor fixed dome camera designed to deliver exceptional image quality and enhanced security features. With its innovative Real Sight Engine and AI-powered analytics, it captures crisp, clear images while providing robust monitoring capabilities. The built-in HDMI output allows for seamless live streaming to external displays, making it a versatile addition to any security system.
Vivotek FD9199-H - Camera Features
- HDMI Output: Display live footage directly on a monitor, eliminating the need for additional workstations.
- AI-Powered Analytics: Utilizes Smart Motion Detection and Smart VCA for precise object tracking and faster search capabilities.
- Real Sight Engine: Solves motion blur issues, ensuring clear images of moving subjects without compromising shutter speed.
- Built-in IR Range: Offers infrared illumination up to 30 meters for effective night-time surveillance.
- Enhanced Security Features: Includes signed firmware, secure boot, and TPM 2.0 chip for hardware encryption and system integrity.
Vivotek FD9199-H - Detailed Specifications
| Camera Type | Indoor Fixed Dome |
| Megapixels | 8 Megapixels |
| Lens | 4.2mm |
| IR Range | Up to 30 meters |
| AI Features | Smart Motion Detection, Smart VCA |
| HDMI Output | Yes |
| Security Features | TPM 2.0, Signed Firmware, Secure Boot |
SKU  | FD9199-H |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Vivotek |
Camera Signal  | Network IP |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Dimensions (W x H) | ø 120 x 89.6 mm |
| Image Device | 1/1.8" Progressive CMOS |
| Minimum Scene Illumination | 0.015 lux @ F1.6 (Color), <0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 90% RH (non-condensing) |
| Operating Temperature | Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F) Working Temperature: 0°C ~ 45°C (32°F ~ 113°F) (IR off) 0°C ~ 40°C (32°F ~ 104°F) (IR on) |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 54 dB |
| Weatherproof | IP67 |
| Rotation Angle | 350° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
FD9199-H-Specsheet FD9199-H-Spec-sheet FD9199-H-Manual
