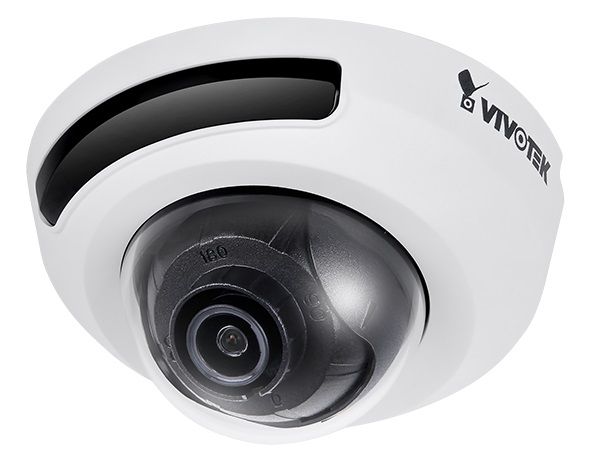

Vivotek FD9166-HNF3 2 Megapixel Network IR Dome Camera, 3.6mm Lens

SKU
FD9166-HNF3
Model No
FD9166-HNF3
$237.60
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 30 fps @1920x1080
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in 940nm Invisible IR Illuminators up to 10 Meters

The FD9166-HNF3 from Vivotek is a high-performance 2 megapixel network IR dome camera equipped with a 3.6mm lens, designed to deliver exceptional video clarity and efficiency while seamlessly integrating with modern surveillance systems.

Vivotek FD9166-HNF3 Camera Features

  • H.265 Compression Technology: Reduces bandwidth usage and storage requirements while maintaining high video quality.
  • 30 fps @1920x1080: Provides clear and smooth video playback, ensuring details are not missed during recordings.
  • WDR Pro for Unparalleled Visibility in High Contrast Environments: Enhances image quality in bright and dark areas, making it ideal for diverse lighting conditions.
  • Smart Stream III to Optimize Bandwidth Efficiency: Dynamically adjusts the video quality and streaming to maximize bandwidth savings while preserving essential details.
  • Built-in 940nm Invisible IR Illuminators up to 10 Meters: Offers discreet night vision capabilities without visible light interference, allowing for covert surveillance.
  • Built-in 802.3af Compliant PoE: Supports Power over Ethernet, simplifying installation and reducing cabling needs.
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage: Provides the flexibility for local storage, allowing for continuous recording without relying solely on network storage.
  • Video Rotation for Corridor Scenario: Tailors video output for enhanced surveillance in narrow spaces, improving coverage and detail.
  • Compact and Stylish Design: Blends seamlessly into various environments while occupying minimal space.

Vivotek FD9166-HNF3 Detailed Specifications

ModelFD9166-HNF3
Megapixels2 MP
Lens3.6mm
Video CompressionH.265
Frame Rate30 fps @1920x1080
IR Illuminators940nm, up to 10m
PoE Compliance802.3af
Storage SupportMicroSD/SDHC/SDXC
Rotation FeatureVideo Rotation for Corridor Scenario
DesignCompact and Stylish
SKU  FD9166-HNF3
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor
Voltage  PoE
Dimensions (W x H)  90 x 50 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.9" Progressiv e CMOS
IR LEDs  IR LED*4
IR Wavelength  940nm
Minimum Scene Illumination  0.16 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on
Operating Humidity    90%
Operating Temperature    Starting Temperature: 0°C ~ 40°C(32°F~ 104°F), Working Temperature: -10°C ~ 55°C(14°F~ 131°F)(IR of f ) -10°C ~ 50°C(14°F~ 122°F)(IR on)
Power Consumption  Max. 5.5 W/2.8 W (IR on/of f )
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
S/N Ratio  66 dB
Digital Noise Reduction    3DNR
Angle of View    89° (Horizontal), 47° (Vertical), 105° (Diagonal)
Motion Detection Tracking    Five-window v ideo motion detection
IR Distance  10m/32.80ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
