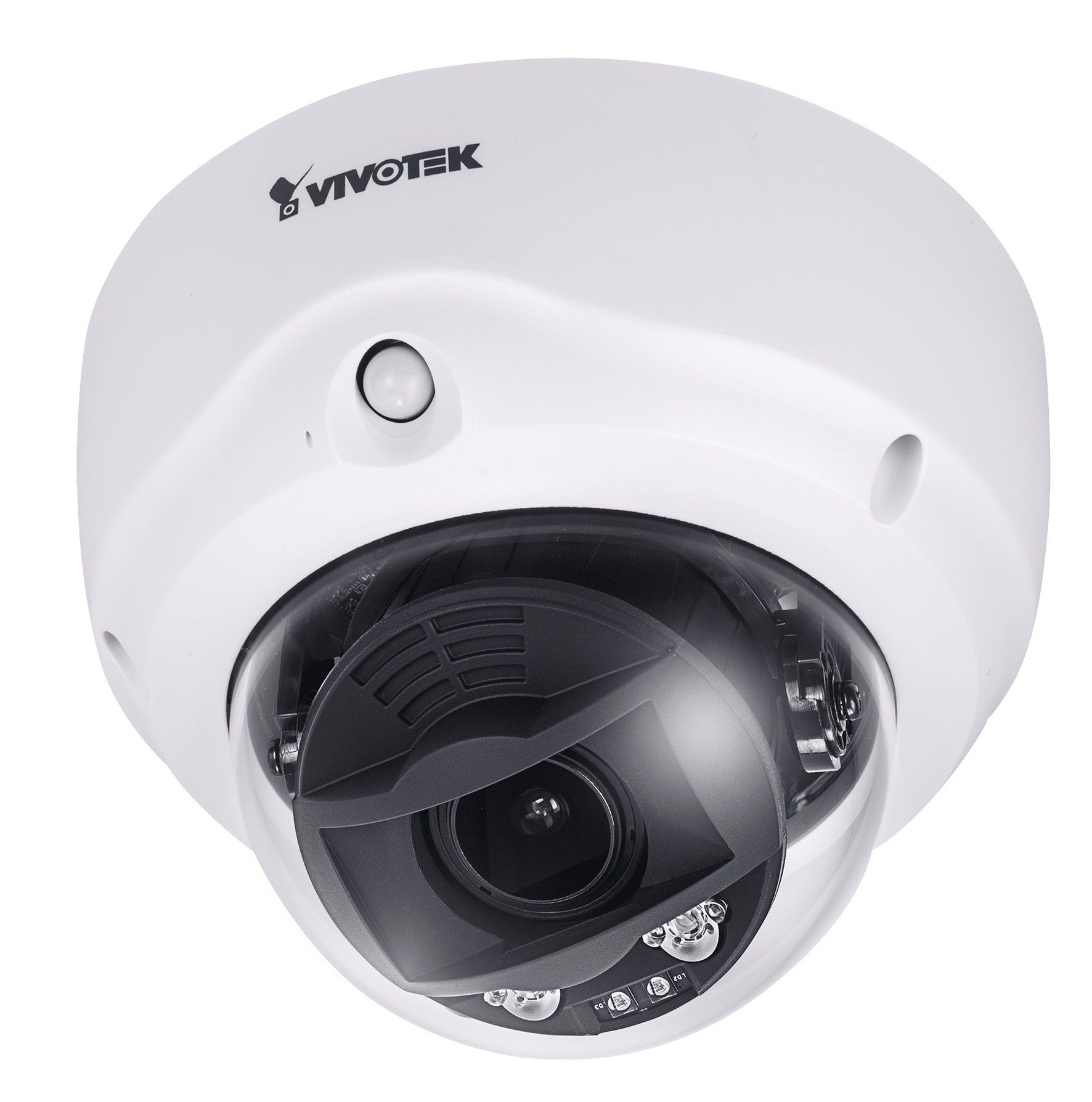

The FD9165-HT from Vivotek is the new flagship indoor dome network camera from Vivotek, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated Vivotek SNV and WDR Pro technology, the FD9165-HT is capable of capturing the highest quality images in both low light and high contrast environments.
The FD9165-HT also offers the best in night time surveillance technology. By adopting Smart IR II technology from Vivotek speed domes, the FD9165-HT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.
Additionally, the FD9165-HT employs Vivotek's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the Vivotek VADP (Vivotek Application Development Platform) allows users to add customized programs for various applications and user scenarios. The FD9165-HT also includes a PIR sensor as well as a built-in microphone, enabling further detection of unexpected events.
Vivotek FD9165-HT Key Features
60 fps @ 1920x1080: Ensures smooth video playback and clear image detail for accurate surveillance monitoring.
H.265 Compression Technology: Provides significant bandwidth savings, allowing for efficient storage and streaming of high-quality footage.
4 ~ 9 mm, Remote Focus, P-iris Lens: Offers versatile focal lengths for various surveillance applications with precise focus adjustments.
Smart Stream III to Optimize Bandwidth Efficiency: Enhances video quality while minimizing bandwidth usage, ideal for network-constrained environments.
SNV II (Supreme Night Visibility) for Low Light Conditions: Ensures high-quality imaging even in dimly lit areas, improving nighttime security.
WDR Pro II for Unparalleled Visibility in Extremely Bright and Dark Environments: Allows for the capture of clear images in complex lighting conditions, enhancing overall scene visibility.
Built-in IR Illuminators, Effective up to 50 Meters: Facilitates night surveillance by illuminating areas up to 50 meters, ensuring comprehensive coverage.
Smart IR II Technology to Avoid Overexposure: Adjusts IR intensity to produce balanced images, preventing bright spots and loss of detail.
Smart Motion Detection to Reduce False Alarms: Minimizes unnecessary alerts, enhancing reliability of surveillance alerts.
Trend Micro IoT Security within Standard Warranty Period: Provides enhanced cybersecurity features to protect your device from potential hacks and vulnerabilities.
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer
Vivotek
NDAA
Compliant
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
101 Feet +
Resolution
2 Megapixel
Lens Type
Varifocal
Lens Size
4-9mm
Mount Type
Ceiling, Wall
Compression Method
H.264, M-JPEG, H.265
Durability
Indoor
Voltage
12vDC, 24vAC, PoE
Dimensions (W x H)
Ø 139 x 104 mm
Electronic Shutter
1/5 sec. to 1/32,000 sec.
Image Device
1/2" Progressive CMOS
Image Pixels-Effective
5
Minimum Scene Illumination
0.04 Lux @ F1.3 (Color), 50IRE , 0.002 Lux @ F1.3 (Color), 30IRE , 0 Lux with IR LED on
