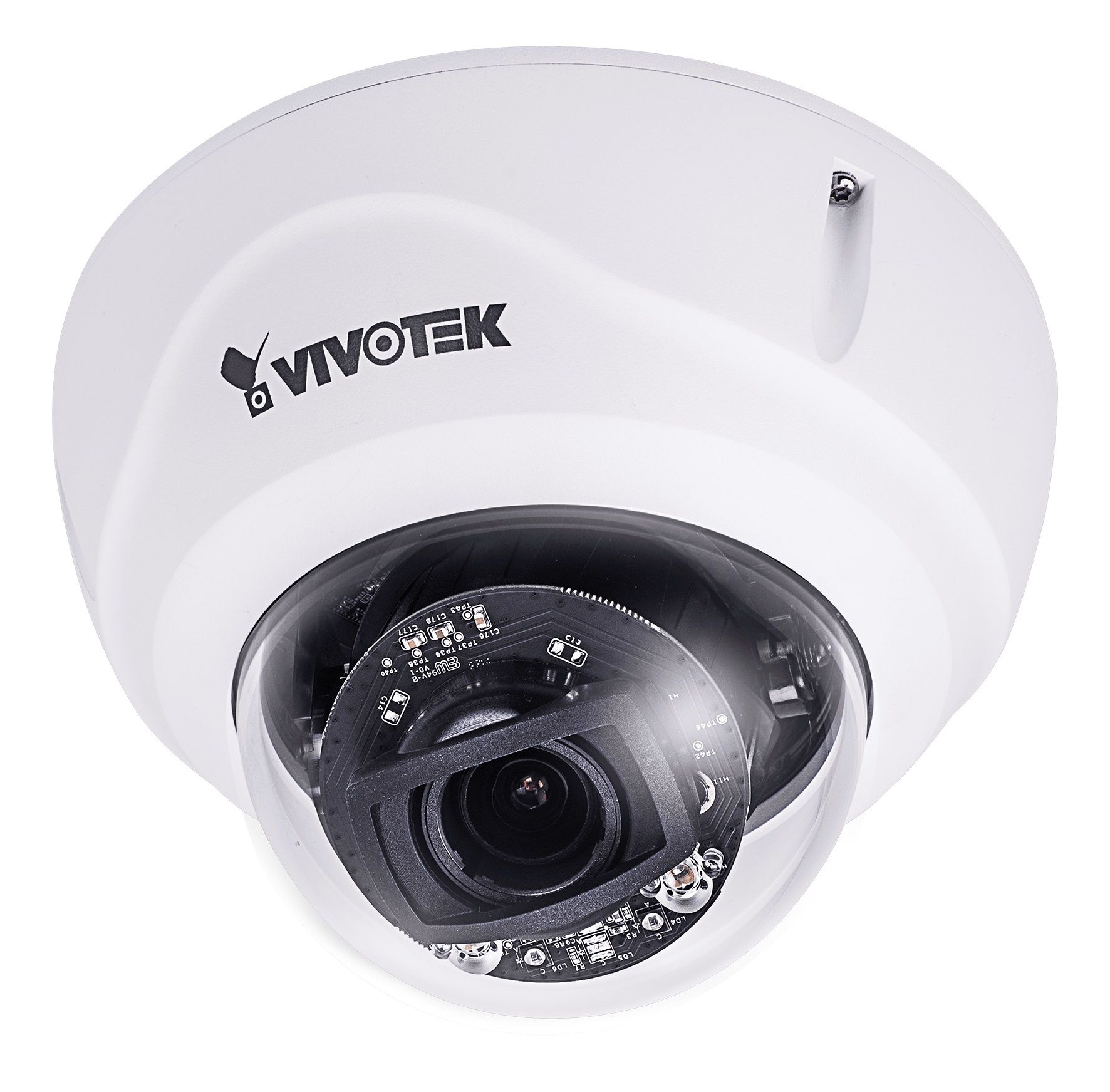

The FD8377-EHTV from Vivotek is a series of outdoor dome network cameras equipped with a 4MP sensor enabling resolution of 2688x1520 at 30 fps. Featuring Vivotek SNV and WDR Pro technology, the FD8377-(E)HTV series is capable of capturing high quality images whether in high contrast or low light environments. The FD8377-EHTV includes a remote focus lens for different monitoring range demands and is equipped with 30-meter IR illuminators for improved night visibility. For harsh outdoor environments, the FD8377-(E)HTV series is encased in an IP66 and IK10-rated housing, capable of operating from -50°C to 50°C (FD8377-EHTV). Through employing Vivotek's Smart Stream II technology, the FD8377-EHTV provides great image quality while still maintaining low bandwidth. Additionally, VADP (Vivotek Application Development Platform) allows users to add customized applications for various user scenarios.
Vivotek FD8377-EHTV Camera Features
Frame Rate: 30 fps @ 2688x1520 for smooth video quality.
Compression: Real-time H.264, MJPEG Compression (Dual Codec) for flexibility in storage and bandwidth.
Lens Type: 2.8 ~ 12 mm, Remote Focus, P-iris Lens for customizable monitoring range.
Day & Night Function: Removable IR-cut Filter for optimal imaging in varying lighting conditions.
IR Range: IR Illuminators up to 30M with Smart IR II for excellent visibility in darkness.
Low Light Performance: SNV (Supreme Night Visibility) for enhanced image quality in low light conditions.
Dynamic Range: WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments (supports up to 3.6MP, 24 fps @ 2560x1440).
Bandwidth Optimization: Smart Stream II to Optimize Bandwidth Efficiency without compromising image quality.
Noise Reduction: 3D Noise Reduction for clearer images in low-visibility conditions.
Durability: Weather-proof IP66-rated and Vandal-proof IK10-rated Housing for reliability in harsh environments.
On-board Storage: Built-in MicroSD/SDHC/SDXC Card Slot for convenient local storage options.
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Bright Light Masking, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer
Vivotek
NDAA
Compliant
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
61~100 Feet
Resolution
4 Megapixel
Lens Type
Varifocal
Lens Size
2.8-12mm
Mount Type
Ceiling, Wall
Compression Method
H.264, M-JPEG
Durability
Vandal Resistant, Weather Resistant
Voltage
12vDC, PoE
Dimensions (W x H)
Ø 155 x 104 mm
Electronic Shutter
1/5 sec. to 1/16,000 sec
Image Device
1/3" Progressive CMOS
Image Pixels-Effective
4
Minimum Scene Illumination
0.1 Lux @ F1.4 (Color) , 0.01 Lux @ F1.4 (B/W) , 0 Lux with IR illumination on
