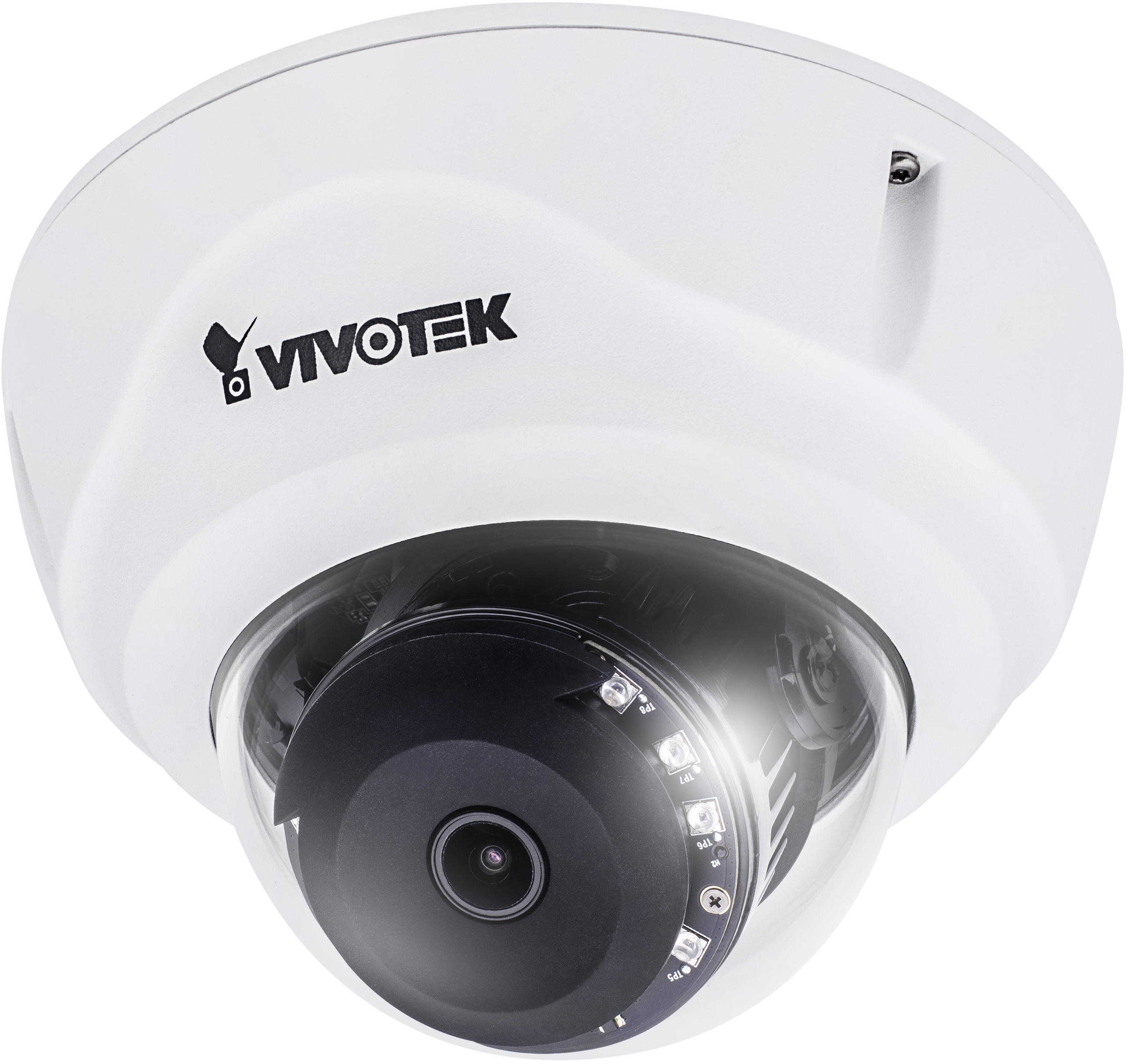

Vivotek FD836BA-HVF2 2MP Outdoor Fixed Dome Network Camera, 2.8mm Lens
SKU
FD836BA-HVF2
Model No
FD836BA-HVF2
$262.16
Product Highlights
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
Speak to an expert
Vivotek's FD836BA-HVF2 is an outdoor-ready Full HD fixed dome network camera that offers superb video quality with up to 30 fps at 1920x1080. Equipped with Vivotek’s WDR and SNV technology, this camera captures high-quality, high-visibility video even in contrasting or low-light environments. With flexible focus options, immediate adaptations to lighting changes, and robust weather-proof housing, the FD836BA-HVF2 ensures reliable performance and durability for any outdoor surveillance application.
Vivotek FD836BA-HVF2 Key Features
- 2-Megapixel CMOS Sensor: Delivers high-resolution images for clear surveillance.
- 30 fps @ 1920x1080: Ensures smooth video playback for effective monitoring.
- Removable IR-cut Filter for Day & Night Function: Provides optimal performance in both daylight and nighttime conditions.
- Built-in IR Illuminators, Effective up to 30 Meters: Enhances nighttime visibility with a powerful illumination range.
- Smart IR Technology to Avoid Overexposure: Automatically adjusts light intensity for balanced images in varying conditions.
- SNV (Supreme Night Visibility) for Low Light Conditions: Guarantees clear video quality during twilight or low-light scenarios.
- WDR for Unparalleled Visibility in Extremely Bright and Dark Environments: Ensures clarity and detail in challenging lighting situations.
- 3D Noise Reduction: Enhances image quality by reducing visual noise, especially at night.
- Real-time H.264 and MJPEG Compression: Optimizes video storage and bandwidth without sacrificing quality.
- Two-way Audio: Facilitates effective communication via built-in microphone and speaker.
- Video Rotation for Corridor View: Supports vertical surveillance to cover narrow areas effectively.
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Protects the camera from harsh environmental conditions and vandalism.
- Support Installation with AM-713 Outdoor Conduit Box: Simplifies outdoor mounting and enhances installation versatility.
- Vivotek VCA (Video Content Analysis) Support: Provides advanced analytics for improved security monitoring.
Vivotek FD836BA-HVF2 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Fixed Dome Network Camera |
| Sensor Type | 2-Megapixel CMOS |
| Video Resolution | 1920x1080 |
| Frame Rate | 30 fps |
| IR Illuminators Range | Up to 30 Meters |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Compression Formats | H.264, MJPEG |
| Audio Support | Two-way audio |
| Operating Temperature | -30°C to 50°C |
| Power Supply | PoE (Power over Ethernet) |
SKU  | FD836BA-HVF2 |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Non-Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Ø 155 x 103 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.7" Progressive CMOS |
| IR LEDs | 8 |
| Minimum Scene Illumination | 0.15 Lux @ F1.8 (Color) 0.01 Lux @ F1.8 (B/W) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | Max. 9 W |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| S/N Ratio | 66dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 122° (Horizontal) 66° (Vertical) 142° (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
