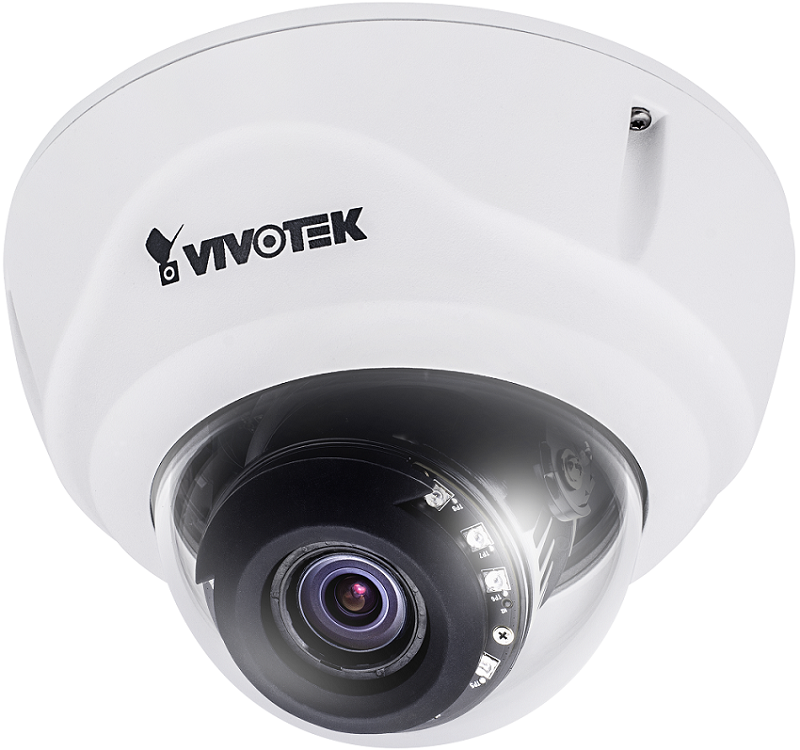

Vivotek FD836BA-EHTV 2 Megapixel Fixed Dome Network Camera, 2.8 -12mm Lens
SKU
FD836BA-EHTV
Model No
FD836BA-EHTV
$419.23
Product Highlights
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm, Remote Focus, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
Speak to an expert
The FD836BA-EHTV from Vivotek is an outdoor-ready Full HD fixed dome network camera offering superb video quality with up to 30 fps at 1920x1080. Armed with VIVOTEK’s WDR and SNV technology, it captures high-quality, high-visibility video in high contrast or low-light environments. Offering flexible options for focus and precise adjustments remotely, this camera features a removable IR-cut filter and effective IR illuminators. Its Smart IR technology reduces overexposure, ensuring top-notch visibility around the clock.
Vivotek FD836BA-EHTV Camera Features
- 2-Megapixel CMOS Sensor: Delivers clear and detailed images for better surveillance and monitoring.
- 30 fps @ 1920x1080: Provides smooth video playback for enhanced viewing experiences.
- 2.8 ~ 12 mm, Remote Focus, P-iris Lens: Allows for precise lens adjustments with remote focus capabilities for added convenience.
- Removable IR-cut Filter for Day & Night Function: Ensures optimal image quality regardless of lighting conditions.
- Built-in IR Illuminators, Effective up to 30 Meters: Enables effective night vision, enhancing security in low light situations.
- Smart IR Technology to Avoid Overexposure: Automatically adjusts IR lighting intensity to maintain balanced exposure.
- WDR for Unparalleled Visibility in Extremely Bright and Dark Environments: Enhances video clarity in challenging lighting conditions.
- SNV (Supreme Night Visibility) for Low Light Conditions with 3D Noise Reduction: Provides superior image quality in low light environments.
- Two-way Audio: Enables communication through the camera, enhancing interactive surveillance capabilities.
- Video Rotation for Corridor View: Offers customizable viewing modes suitable for narrow spaces.
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Ensures durability and reliability in various outdoor conditions.
- Support Installation with AM-713 Outdoor Conduit Box: Facilitates easy and secure installation for outdoor applications.
- VIVOTEK VCA (Video Content Analysis) Support: Allows for enhanced video analytics functionalities to improve surveillance efficiency.
Vivotek FD836BA-EHTV Detailed Specifications
| Camera Type | Fixed Dome Network Camera |
| Image Sensor | 2-Megapixel CMOS Sensor |
| Resolution | 1920x1080 |
| Frame Rate | 30 fps |
| Lens | 2.8 ~ 12 mm, Remote Focus, P-iris |
| IR Illuminators | Effective up to 30 Meters |
| IR Cut Filter | Removable for Day/Night Functionality |
| WDR | Yes |
| SNV | Yes, with 3D Noise Reduction |
| Audio Support | Two-way Audio |
| Weather Resistance | IP66-rated |
| Vandal Resistance | IK10-rated |
| Video Rotation | Yes |
| Installation Support | AM-713 Outdoor Conduit Box |
| VCA Support | Yes |
SKU  | FD836BA-EHTV |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Non-Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Ø 155 x 103 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Image Device | 1/2.7" Progressive CMOS |
| IR LEDs | 8 |
| Minimum Scene Illumination | 0.1 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W) |
| Operating Temperature | -50°C ~ 50°C (-58°F ~ 122°F) |
| Power Consumption | Max. 25 W (Heater on) |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| S/N Ratio | 66dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | 34° ~ 107° (Horizontal), 19° ~ 56° (Vertical), 39° ~ 133° (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
