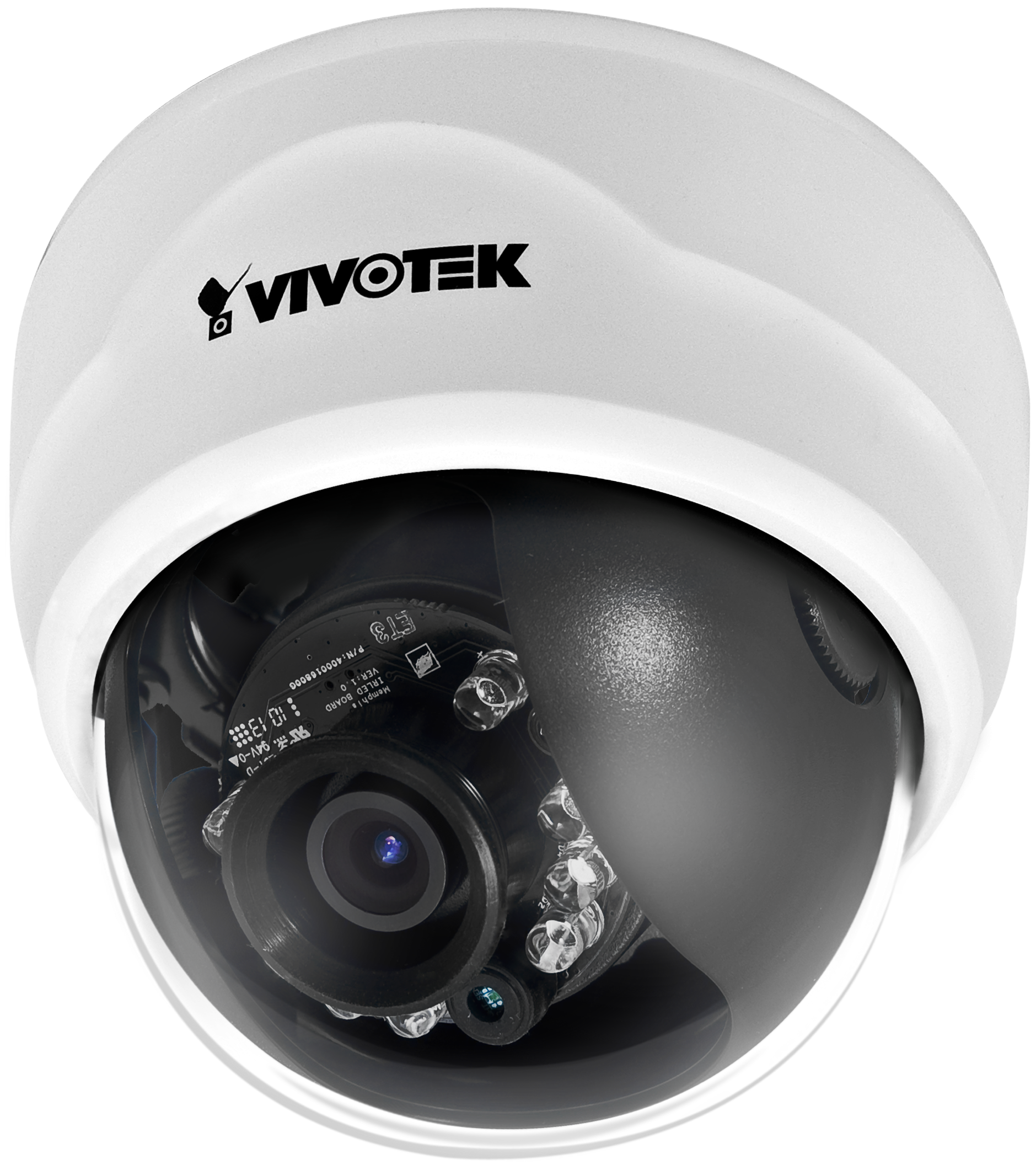

Vivotek FD8134 1 Megapixel Compact Day/Night Network Dome Camera, PoE, 3.6mm Lens
SKU
FD8134
Model No
FD8134
$120.00
Product Highlights
- Easy and Flexible Installation
- Compact, Elegant Designs
- 1/4" CMOS Sensor in 1280 X 800 resolution
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 10 Meters

Speak to an expert
The FD8134 from Vivotek is an indoor day/night network dome camera designed as a compact stylish unit ideal for banks, offices, ATMs, and other commercial applications. The FD8134 features a removable IR-cut filter for day/night functions, an inbuilt IR illuminator for effective monitoring up to 10 meters, triple codec real-time MPEG-4, H.264, and JPEG compression, plus multiple simultaneous streams. With PoE capability, a 3.6mm lens, tamper detection, and a high-performance 1/4" CMOS sensor, this user-friendly camera is perfect for various monitoring needs.
Vivotek FD8134 Camera Features
- Easy and Flexible Installation: Simplifies setup process to save time and effort.
- Compact, Elegant Design: Fits seamlessly into any environment without being obtrusive.
- 1/4" CMOS Sensor in 1280 X 800 resolution: Provides high-quality video for clear surveillance.
- Removable IR-cut Filter for Day & Night Function: Ensures optimal performance in varying lighting conditions.
- Built-in IR Illuminators, effective up to 10 Meters: Enhances visibility in low-light scenarios for comprehensive monitoring.
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec): Offers versatile video encoding options for efficient storage use.
- Multiple Simultaneous Streams: Allows several devices to access video feeds at once for greater flexibility.
- Activity Adaptive Streaming for Dynamic Frame Rate Control: Optimizes bandwidth usage while maintaining video quality.
- Tamper Detection for Unauthorized Changes: Alerts users to potential security threats, enhancing surveillance integrity.
- Built-in 802.3af Compliant PoE: Simplifies wiring and reduces installation costs by using existing network cabling.
- Built-in MicroSD/SDHC Card Slot for On-board Storage: Supports local video storage for added reliability.
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation: Provides flexible mounting options to suit various environments.
- Supports ONVIF Standard: Simplifies integration and enhances interoperability with other devices.
Vivotek FD8134 Detailed Specifications
| Camera Type | Indoor Day/Night Network Dome Camera |
| Resolution | 1280 x 800 |
| Lens Type | 3.6mm |
| IR Illuminator Range | Effective up to 10 Meters |
| Compression Formats | MPEG-4, H.264, MJPEG |
| Features | Removable IR-cut Filter, Tamper Detection, Activity Adaptive Streaming |
| Power Supply | PoE (802.3af compliant) |
| Storage | MicroSD/SDHC Card Slot |
| Operating System | Linux 2.6 embedded OS |
| Shutter Time | 1/5 to 1/25,000 second |
| Mounting Type | Ceiling/Wall Mount |
| Dimensions | Compact and lightweight design |
