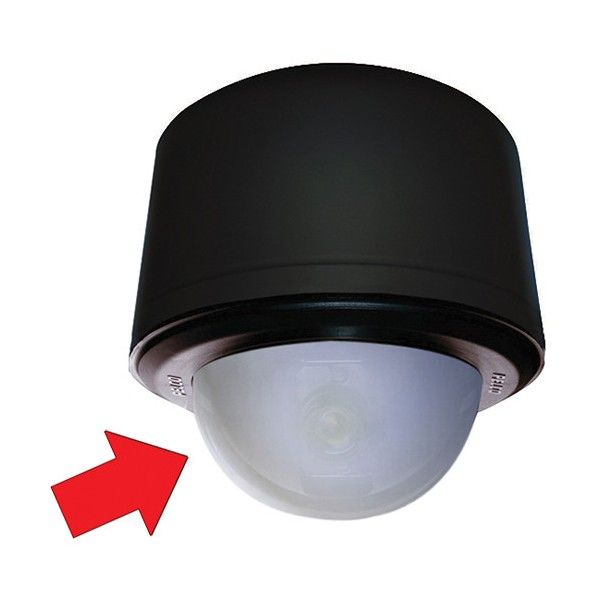

Pelco FD1-IRV9-4XC 540 TVL Analog IR Indoor Dome Camera, 3-9mm Lens, Include Components: DD423, BB4E-PG, LD53PB-2
SKU
FD1-IRV9-4XC
Model No
FD1-IRV9-4XC
$233.00
Product Highlights
- Sony® 1/3-Inch Super HAD CCD II™760H
- NextChip Digital Signal Processor (DSP)
- Color Indoor Dome
- Shipped Completely Assembled, Easy to Install
- 12 VDC Power with Internal Synchronization
Speak to an expert
540 TVL Analog IR Indoor Dome Camera Systems
- The FD1-IRV9-4XC is Pelco's entry-level indoor fixed dome camera. It integrates a camera and lens package into a small, versatile indoor enclosure that can be mounted directly to a ceiling and positioned using a 2-axis gimbal. The FD1-IRV9-4XC integrates fixed and varifocal lenses with supplemental IR lighting. This camera can be mounted to a ceiling or wall and positioned using a 3-axis gimbal.
- The DD423 from Pelco is a 23x spectra IV SL dome drive with ¼" EXview HAD image sensor delivers clear images at a resolution of 540TVL. The camera has a varifocal lens with a focal length of 3.6-82.8 mm at f/1.6 and offers a 23x optical zoom and 12x digital zoom. The on-screen compass, tilt, and zoom display feature helps in determining positions when required.
- The BB4E-PG is a high quality Spectra IV IP H.264 standard pendant gray back box from Pelco that is able to offer outdoor use with its highly ucted BB4E-PG spectra back box comes with an aluminium construction, 1.5 NPT cable entry, quick disconnect function to dome drive, as well as an inbuilt memory for storing camera and dome settings, and a 18 to 32VAC input voltage.
- The LD53PB-2 is a Spectra III lower dome manufactured by Pelco that can be used to offer high replacement of the existing dome when it has become worn or damaged. The LD53PB-2 lower dome comes with a chrome dome appearance, a pendant mount, a black colored finish, as well as lightweight handling, and a simple installation.
Camera Functions
Auto Gain Control
Auto White Balance
Day/Night Vision
3D DNR
Camera Features
| 540 TV Lines | Rotating Discreet Liner with Sealed Fixed Bubble |
| Sony 1/3-Inch Super HAD CCD II 760H | 8 Zones (configurable in size) Can Be Labelled with up to 20 Characters Each or Set to Output Blank Video |
| NextChip Digital Signal Processor (DSP) | Configurable Locations of Labels and On-Screen Displays |
| Shipped Completely Assembled, Easy to Install | Variable Scan Speed Scan Speed Can Be Configurable Between 1 to 40°/sec |
| 12 VDC Power with Internal Synchronization | Pan Motion Allows 0.1 to 150°/sec Pan Speed |
| 64 Presets | Configurable Limit Stops for Auto/Random/Frame Scan Modes |
| ±0.1° Preset Accuracy | Digital Position and Zoom Control and Feedback Using D Protocol |
| Multilingual Menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech) | Built-in Menu System for Setup of Configurable Functions |
| RJ-45 Data Port for Software Update and Setup | Auto Flip Rotates Dome 180° at Bottom of Tilt Travel |
| On-Screen Compass, Tilt, and Zoom Display | Window Blanking Up to 4 Four-Sided, User-Defined Shapes |
| Password Protection | 1 Alarm Input |
| 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed | 1 Auxiliary (Form C) Relay Output |
Pelco FD1-IRV9-4XC Camera Demo from Surveillance-Video.Com
The FD1-F Series is Pelco's entry-level indoor fixed dome camera. It integrates a camera and lens package into a small, versatile indoor enclosure that can be mounted directly to a ceiling and positioned using a 2-axis gimbal. The FD1 Series is shipped completely assembled, making installation fast and easy. To surface-mount the unit, remove it from the box, attach it to the mounting surface, and connect video and power.
Additional Pelco Products
SKU  | FD1-IRV9-4XC |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor |
| Mount Type | Pendant |
| Voltage | 12vDC |
| Electronic Shutter | Auto 1/50 ~ 1/10,000 sec |
| Image Device | Sony 1/3-Inch Super HAD CCD II 760H |
| Image Pixels-Effective | 752 (H) x 582 (V) |
| IR Distance | 20m/65.61ft |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | f/1.2; 2,850°K; 30 IRE Color 0.13 lux Mono (with IR) 0.0 lux |
| Operating Humidity | 20% to 80%, noncondensing |
| Operating Temperature | –10° to 50°C (14° to 122°F) |
| Power Consumption | 2.7 W |
| S/N Ratio | 48 dB |
| Scanning Horizontal | 15.625 kHz |
| Scanning System | 625 lines, 2:1 interlace |
| Scanning Vertical | 50.00 Hz |
| Signal System | PAL |
| Video Output | 1.0 Vp-p, NTSC/PAL composite, 75 ohms, BNC connector |
| Synchronization | Internal |
| Digital Noise Reduction | 2D |
| Angle of View | 85.3° at 3.0 mm wide zoom; 31.5° at 9.0 mm telephoto zoom |
| Rotation Angle | 180° |
| Automatic White Balance | Auto |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Auto Gain Control | Yes |
