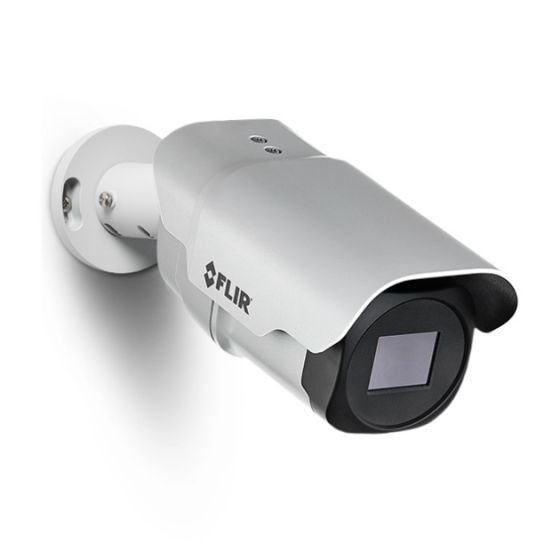

Flir FB-618-ID-EU 640 X 480 Network IP Thermal Analytics Security Camera, 25HZ, EU with 24mm Lens
SKU
FB-618-ID-EU
Model No
FB-618-ID-EU
$4,699.00
Product Highlights
- Multiple lens options offer flexible coverage of fence lines and building perimeters
- The Elara FB-Series ID’s high contrast thermal Imaging is ideal for use with analytics
- The Elara FB-Series ID is fully integrated and certified by 3rd party video management systems
- FLIR United VMS enables such features as thermal and video analytic configuration and alarm management
- Elara FB-Series ID offers IP and analog outputs for easy deployment with current or legacy systems
Speak to an expert
The Flir FB-618-ID-EU 640 X 480 Network IP Thermal Analytics Security Camera is designed for enhanced security and surveillance, featuring high-resolution thermal imaging and flexible lens options. With its robust analytics capabilities, this camera provides comprehensive coverage for perimeters and critical areas, making it an ideal choice for both modern and legacy systems.
Flir FB-618-ID-EU Camera Features
- Multiple Lens Options: Choose from various lens sizes for tailored coverage, ensuring optimal monitoring of fence lines and building perimeters.
- High Contrast Thermal Imaging: Delivers exceptional image quality, enhancing the effectiveness of security analytics for improved threat detection.
- 3rd Party Integration: Seamless compatibility with various video management systems, ensuring a flexible and robust security infrastructure.
- FLIR United VMS Compatibility: Enables advanced features like thermal and video analytic configuration, streamlining alarm management and system responsiveness.
- Flexible Outputs: Provides both IP and analog output options, making it simple to integrate with existing or legacy surveillance systems.
Flir FB-618-ID-EU Detailed Specifications
| Resolution | 640 x 480 |
| Frame Rate | 25Hz |
| Lens Type | 24mm |
| Output Types | IP and Analog |
| Integration | Certified by third-party video management systems |
| Analytics Capability | Supports thermal and video analytics |
SKU  | FB-618-ID-EU |
|---|---|
| Features | Auto Gain Control, ONVIF, Weather Resistant |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 480 |
| Lens Type | Fixed |
| Lens Size | 24mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 285 x 96 x 94 mm/11.1” x 3.8” x 3.7” with sunshield and fully extended mounting arm |
| Operating Humidity | 10%-90% relative humidity |
| Operating Temperature | -40° to 50° C (-40° to 122° F) Cold Start |
| Power Consumption | 12V DC: 17 W (maximum with heaters) / 24V AC : 13 VA (maximum with heaters)/24V DC : 13 W (maximum with heaters) / PoE: 13 W |
| Protocols | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
| Weatherproof | IP66 |
| Angle of View | 18° |
| Auto Gain Control | Yes |
| ONVIF | Yes |
