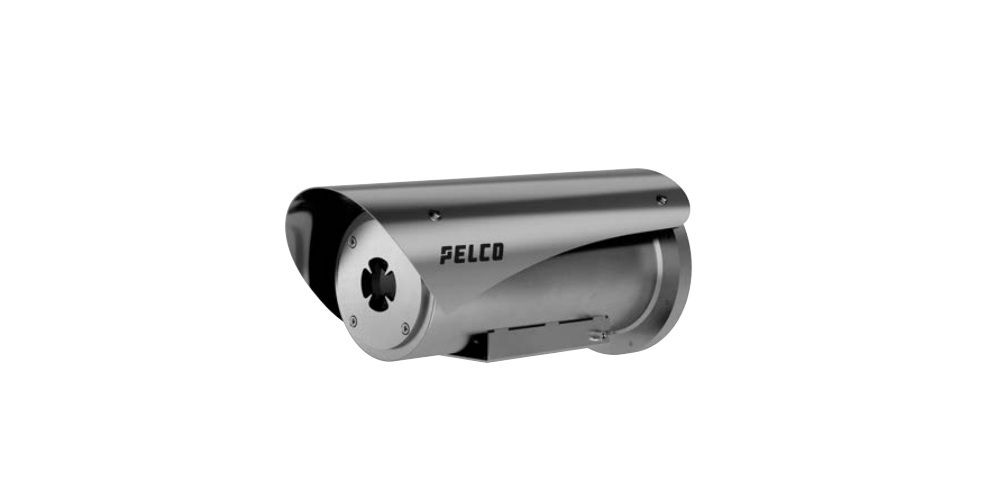

Pelco EXTE2-VF36-E0A00 Exsite Camera ENH 2 Fixed Thermal Camera with 36mm 30HZ

SKU
EXTE2-VF36-E0A00
Model No
EXTE2-VF36-E0A00
$10,652.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • heavy-duty stainless steel, offering hazardous sites a durable security camera with global explosion-proof
  • total darkness, fog, smoke or dense foliage
  • built-in direct camera-to-cloud technology that enhances performance and detection accuracy
  • IP66/67/68/69 weather rating for maximum durability in tough environments
  • easy integration with leading video management software to maximize

Uncover hidden threats in any conditions Hazardous facilities need reliable video security solutions that meet their unique constraints, comply with strict requirements, and survive harsh environmental conditions. The ExSite Enhanced Thermal 2 Series Fixed is encased in heavy-duty stainless steel, offering hazardous sites a durable security camera with global explosion-proof certifications. Ideal for monitoring targeted areas such as access points and fences, this camera offers precise thermal views to accurately detect a target in most environmental conditions, including fog, darkness and foliage.

Pelco EXTE2-VF36-E0A00 Camera Features

  • Thermal Detection: Detect and identify people from a long distance via their heat signature, even in low visibility, such as total darkness, fog, smoke or dense foliage.
  • Explosion-Proof: The heavy-duty housing meets stringent explosionproof and dust-ignition-proof requirements while complying with international standards (UL, CSA, ATEX, IECEx, UKCA. Pending INMETRO and KCs).
  • Trusted And Secure: Meet high data security standards with built-in cybersecurity features that safeguard your security system.
  • Smart Analytics: Stay a step ahead of critical events with built-in analytics providing enhanced object detection and classification.
  • Radiometrics: Receive real-time temperature data with radiometric capabilities* and reduce potential hazards by detecting overheating equipment early on.
  • Ready For Harsh Conditions: Safe within a wide temperature range, from -50°C to +60°C (-58°F to 140°F), plus Type 4X/6P and IP66/67/68/69 weather rating for maximum durability in tough environments.
  • Expect More From Your Camera: Unlock your camera’s full potential by enabling Elevate, Pelco’s built-in direct camera-to-cloud technology that enhances performance and detection accuracy.
  • ONVIF® Conformant: ONVIF Profile S, G, T and M conformance for easy integration with leading video management software to maximize your existing investment.

Detailed Camera Specifications

ModelPelco EXTE2-VF36-E0A00
TypeFixed Thermal Camera
Lens36mm
Frame Rate30Hz
Temperature Range-50°C to +60°C (-58°F to 140°F)
Weather RatingType 4X/6P, IP66/67/68/69
CybersecurityBuilt-in features for data protection
AnalyticsEnhanced object detection and classification
ConformanceONVIF Profile S, G, T, M
SKU  EXTE2-VF36-E0A00
Features  Audio, Auto Gain Control, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Connection Type  Wired
Resolution    640 X 512
Lens Type    Fixed
Lens Size    36mm
Mount Type  Bracket Required
Compression Method    H.264, JPEG, H.265
Durability    Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø155.5 mm x 269.0 mm; Ø6.12" x 10.4" (dimensions without sunshield)
Image Device    640 x 512 Uncooled VOx Microbolometer
Operating Humidity    10% - 95% non-condensing
Operating Temperature    -50 °C to +65 °C (-58 °F to 149 °F)
Power Consumption  10W
Privacy Zone    Up to 64 Zones
Protocols  IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, QoS, DSCP
Weatherproof    IP66/IP67/IP68/IP69
Motion Detection Tracking    Pixel and Classified Objects
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
