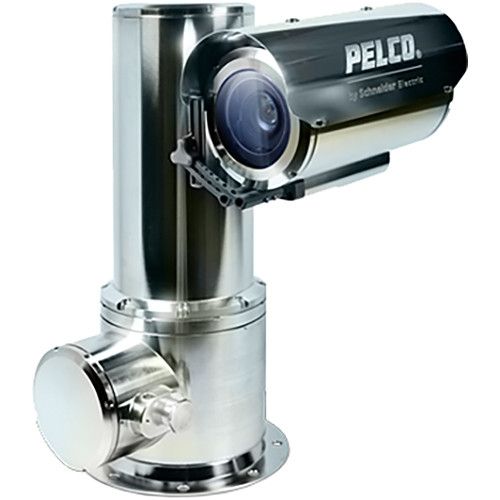

Pelco EXP1230-4N 2 Megapixel ExSite Enhanced PTZ Camera 48vDC, 30X Lens

The Pelco EXP1230-4N 2 Megapixel ExSite Enhanced PTZ Camera is engineered for demanding environments such as oil and LNG facilities, refineries, and offshore drilling applications. With rugged 316L stainless steel construction, this camera can withstand extreme temperatures and harsh conditions. It delivers high-definition 1080p video quality, a powerful 30x zoom, and advanced Surevision 3.0 technology for superior low-light performance, ensuring that you capture clear images even in challenging lighting situations.

Pelco EXP1230-4N Camera Features

• High Resolution: Up to 1920 x 1080p resolution with Wide Dynamic Range (WDR) and low-light performance down to .03 lux for clear images day and night.
• Advanced Zoom: 30x zoom lens allows for detailed remote viewing, essential for security in vast industrial settings.
• Robust Temperature Range: Operates from -60 to +60° C, compliant with T6 Surface Temperature specifications, making it reliable in extreme environments.
• Durable Construction: Made from 316L billet stainless steel with electro-polished finish, providing excellent resistance to corrosion and harsh conditions.
• Reliable Motion Control: Direct drive pan/tilt system ensures quick and accurate camera positioning with minimal latency.
• Versatile Installation: Can be installed upright or inverted with automatic orientation detection for flexibility.
• Integrated Connectivity: Standard IP Ethernet connection with options for fiber and coax transmission simplifies setup.
• Built-In Analytics: Features like AutoTracker and adaptive motion detection enhance security monitoring capabilities.
• Image Stabilization: Electronic image stabilization reduces blur caused by vibrations, preserving image clarity.
• Onvif Compliance: Conformance with Onvif Profiles S, G, and Q ensures interoperability with other IP video products.
• Separate Cable Entry: Dual cable entry ports allow for organized cable management separating data and power connections.
• Efficient Installation: Safety attach point and simple wire termination methods expedite the installation process.
• Optional IR Illuminator: Vari-zoom IR illuminator with a range of 200 meters enhances night vision capabilities.
• Regulatory Certifications: Complies with FCC Part 15, CE, UL/cUL, and other necessary safety standards.
• Hazardous Location Certifications: IECEx, ATEX, and UL/cUL certified for safe operation in explosive atmospheres.
• Marine Certification: DNV certification ensures suitability for marine environments.

Pelco EXP1230-4N Detailed Specifications
