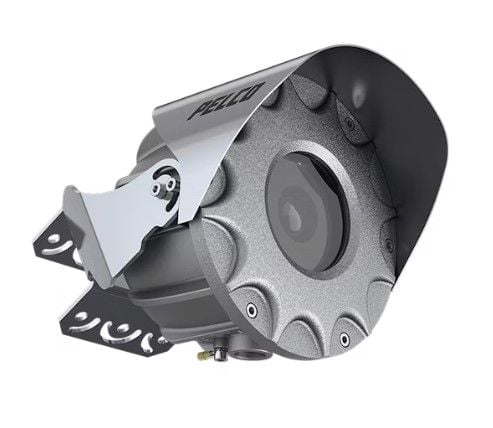

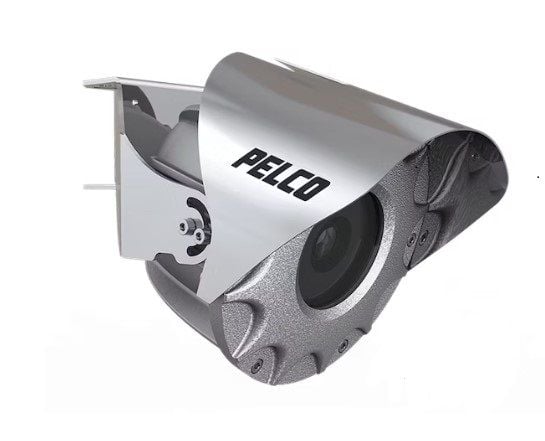

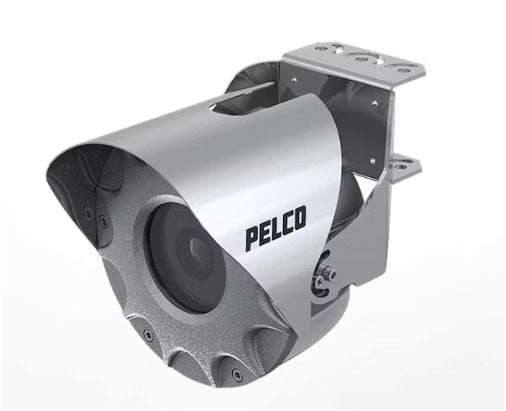

Pelco EXC2602-62-A0 6 MP ExSite Enhanced 2 Explosionproof Fixed Compact Camera System, 4.9-8 mm Lens, 10m Armored Cable
- Up to 3200 x 1800 Resolution Wide Dynamic Range (WDR)
- Multi-Stream H.264 and H.265 IP Video with Smart Compression
- Rated to Operate from -40 °C to +60 °C (-40 °F to 140 °F), with ambient convection
- AISI 316L Stainless Steel Electro Polished Construction
- Standard IP Ethernet Connection
ExSite Enhanced 2 Series is purpose-built to monitor operations and control processes in hazardous locations with risks of explosion due to the presence of flammable liquids, gases or dust. Rugged outdoor cameras available in fixed, fixed compact, and PTZ, it meets stringent explosion proof and dust-ignition proof requirements while complying with international standards (UL, CSA, ATEX, IECEx, EACEx).
It provides to operators crisp and clear evidence with zoom, with true WDR, and low light capabilities for challenging lighting conditions common to hazardous areas. The ExSite Enhanced 2 Series is built to survive in the harshest conditions, rated IP69 it protects from water, high wind, high and low temperatures with an operating range of -40°to +60°C. Holding a Marine certification: Lloyd's Register, it is also resistant to corrosive elements.
ExSite Enhanced 2 Series cameras are easy to install and adaptable to most operational needs. ExSite Enhanced 2 Series cameras support a range of input power options. ExSite Enhanced 2 Series cameras also come standard with wipers and sun shrouds, capturing desired video regardless of the weather.
The ExSite Enhanced 2 Series provides industry-leading image quality using a Full HD 1080p camera producing up to 60 images per second. The camera’s image defog capability increases video quality in poor visibility conditions and 3D noise filtering is available.
Features
- Up to 3200 x 1800 Resolution Wide Dynamic Range (WDR)
- Multi-Stream H.264 and H.265 IP Video with Smart Compression
- Rated to Operate from -40 °C to +60 °C (-40 °F to 140 °F), with ambient convection
- AISI 316L Stainless Steel Electro Polished Construction
- Standard IP Ethernet Connection
- Full Suite of Built-In Analytics
- Onvif Profiles S, G, and T Conformant
- Certifications: FCC Part 15, CE, UL/cUL, ICES003, RCM
- Hazardous Location Certifications: IECEx, ATEX, INMETRO, EAC Ex, UL/cUL
- Marine Certification: Lloyds Register
SKU  |
EXC2602-62-A0 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Pelco |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
Non Infrared |
| Resolution |
6 Megapixel |
| Lens Type |
Varifocal |
| Mount Type |
Bracket Required |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Explosion Proof, Weather Resistant |
| Voltage |
24vDC, 24vAC, PoE |
| Dimensions (W x H) |
Camera and bracket: 254.4 mm × 177 mm × 177.5 mm; 10.0” × 6.97” × 6.99” |
| Electronic Shutter |
Automatic, Manual (1/7 to 1/8,196 sec) |
| Image Device |
1/1.8” progressive scan CMOS |
| Minimum Scene Illumination |
Color (33 ms); 0.055 lux, Mono (33 ms); 0.028 lux |
| Operating Humidity |
10% - 95% non-condensing |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption |
20 W with 24 VDC (0.9A), 21 W with 24 VAC (1.32A) or with IEEE802.3at |
| Privacy Zone |
Up to 64 zones |
| Protocols |
IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP, SNMP v2c, SNMP v3 |
| Weatherproof |
IP69 |
| Digital Noise Reduction |
3D Noise Filtering |
| Angle of View |
Horizontal Angle of View (16:9) 50°-91°, Vertical Angle of View (16:9) 29°-51° |
| Back Light Compensation |
Adjustable |
| Automatic White Balance |
Automatic, Manual |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| On Screen Display Menu |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| ONVIF |
Yes |
