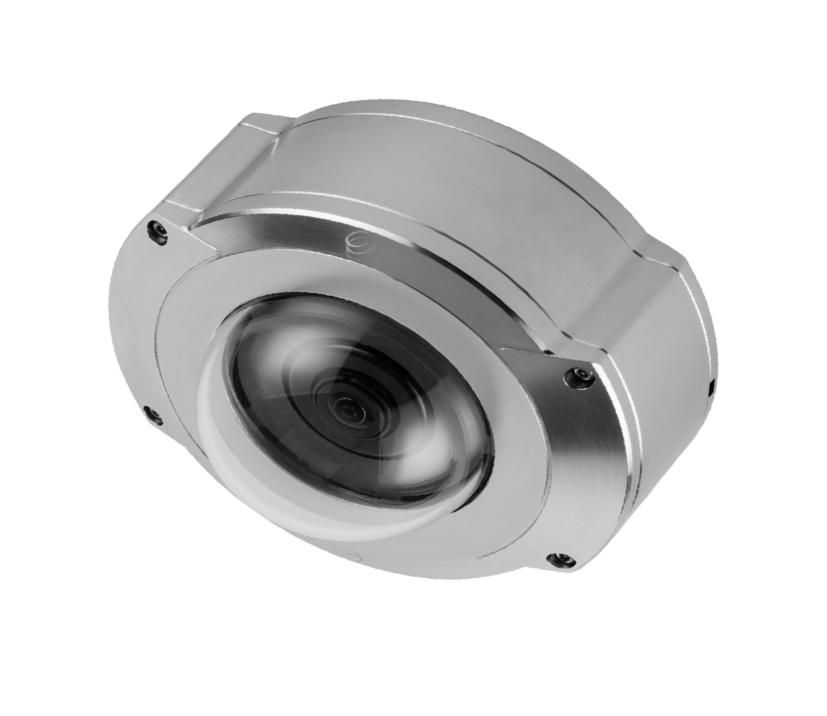

Pelco EVO-05-PSK 5 Megapixel Evolution Mini 360° Pendant Mount Camera
SKU
EVO-05-PSK
Model No
EVO-05-PSK
$2,214.19
Product Highlights
- Up to 30 fps video stream at 1 MP and ¼ MP
- 0.2 lux minimum illumination and electronic WDR
- Constant 360° surveillance with no blind spots
- No moving parts, no maintenance and silent operation
- PoE or 12 VDC powered
Speak to an expert
5 Megapixel Evolution Mini 360° Pendant Mount Camera
- The EVO-05-PSK from Pelco is a 5 megapixel evolution mini 360° pendant mount camera, no lens.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
Digital Zoom
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 5MP sensor and no moving parts | Uniquely suited for extreme environments |
| Up to 30 fps video stream at 1 MP and ¼ MP | Electropolished marine grade 316 stainless steel |
| 0.2 lux minimum illumination and electronic WDR | Withstands high pressure washes and corrosion |
| Constant 360° surveillance with no blind spots | IP69K rated for dust and water protection |
| No moving parts, no maintenance and silent operation | IK10 rated for vandalism protection |
| PoE or 12 VDC powered | Certified by NSF to NSF/ANSI Standard 169 |
| Advanced features | HCV EU marked for HACCP environments |
| Local SD card slot for event recording | Two mounting options available, surface and pendant |
| Configurable privacy regions | Extensive VMS/NVR platform integration with Oncam SDK |
| Polygonal video motion detection regions | Market leading Oncam 3D dewarping software |
| Local alarm digital input and output | Full Live and retrospective dewarping available |
| Audio microphone input | Camera features are accessible through VMS platforms |
Introduction to Evolution 360 Degree IP Cameras
The Evolution range consists of a 5 megapixel camera and exciting features, including high frame rate, H.264, on-board SD card, supports POE, digital input and output and audio capabilities. Evolution also comes with a range of accessories including pole, pendant and wall mount. This new approach for 360-degree surveillance cameras greatly enhances the ease and speed of installation and does not limit the 360 to wall or ceiling mounts. A differentiating strength of the new Evolution range is its innovative modular design, capable of being mounted on a range of available housings to allow for indoor, outdoor, surface mount and concealed applications.
Additional Pelco Products
SKU  | EVO-05-PSK |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Not Included |
| Mount Type | Pendant |
| Compression Method | H.264 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 195 x 161 x 146 mm (7.7 x 6.3 x 5.7 in.) |
| Image Device | 1/2.5-Inch CMOS Sensor |
| Minimum Scene Illumination | 0.2 lux = 50 IRE F/2.0 |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Consumption | 4.05 W (PoE 48 VDC) / 3.19 W (DC 12 VDC) |
| Privacy Zone | 10 configurable privacy regions |
| Weatherproof | IP69 |
| Angle of View | 180º Horizontal, 168º Vertical |
| Motion Detection Tracking | 8 configurable regions |
| Automatic White Balance | Auto White Balance (Range = approximately 2500 K ~ 8000 K) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
