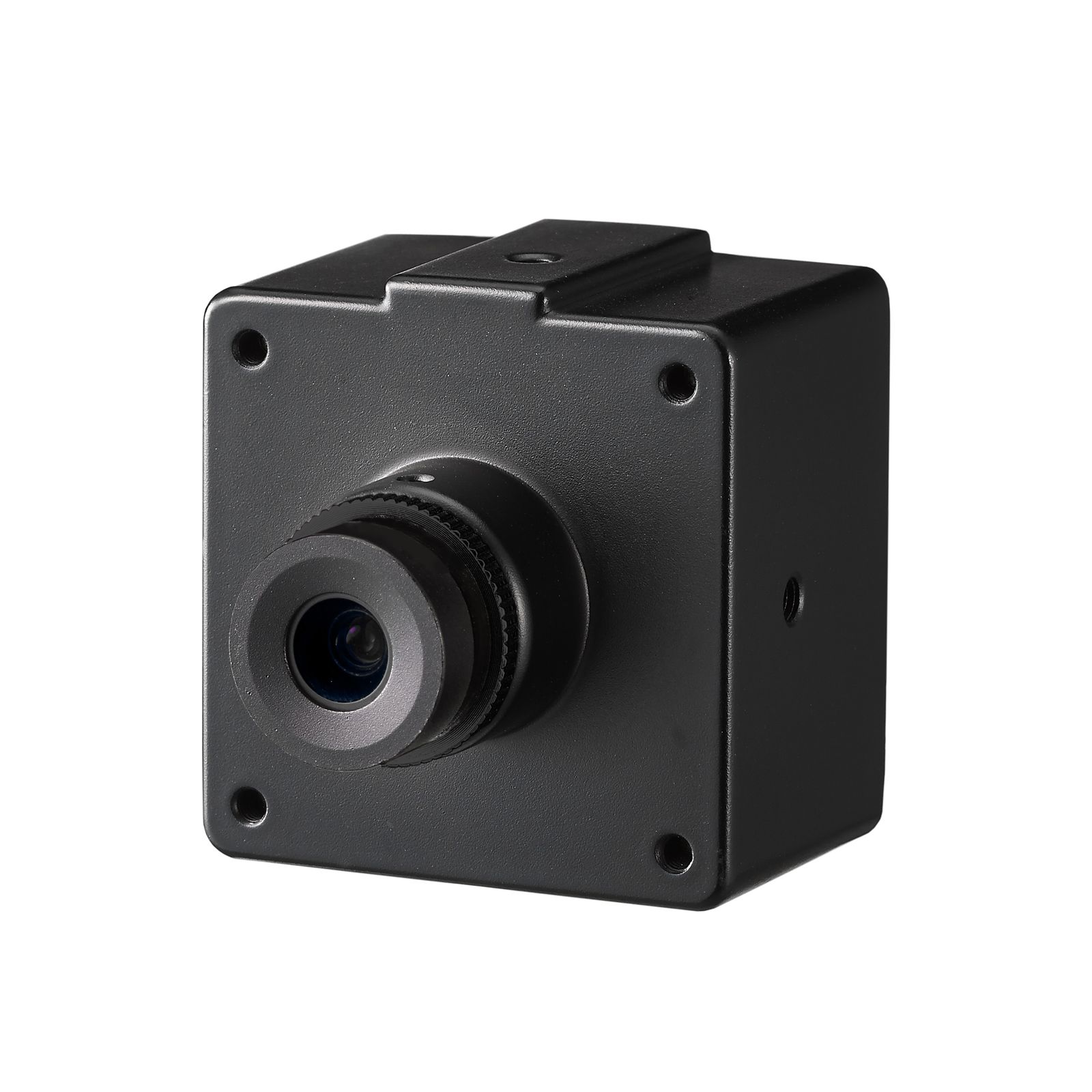

EverFocus EQN100 1.3 Megapixel Mini IP Cube Network Camera, 3.6mm Lens
SKU
EQN100
Model No
EQN100
$229.99
Product Highlights
- 1/3″ progressive CMOS image sensor delivers 1.3MP resolution
- 30fps@ 1280x1024
- Compact design
- Easy and flexible installation
- Multi-streaming from H.264 / MJPEG
Speak to an expert
The EQN100 from EverFocus is a 1.3 megapixel mini IP cube network camera, featuring a 3.6mm lens that delivers high-quality imaging with advanced capabilities. This compact device offers seamless integration with various systems, ensuring flexible installation and live monitoring via mobile applications. Its compatibility with ONVIF standards enhances its operability with a range of network devices, making it a versatile choice for diverse environments.
EverFocus EQN100 Camera Features
- 1/3” Progressive CMOS Sensor: Delivers 1.3MP resolution for clear and crisp image quality.
- 30fps at 1280x1024: Ensures smooth video playback, reducing the chances of lag or stutter.
- Compact Design: Allows for easy installation in limited spaces, ideal for small to medium-sized environments.
- Easy Installation: Flexible mounting options simplify the setup process, catering to various installation needs.
- Multi-streaming Support: Dual streams from H.264 and MJPEG formats provide versatile video compression options.
- 12 VDC Power Supply: Standard power requirement enhances compatibility with typical setups.
- Mobile Monitoring: Access live video feeds remotely through MobileFocus and MobileFocus Plus apps on iOS and Android.
- ONVIF Compliance: Guarantees compatibility with a broad range of network video devices, ensuring interoperability.
EverFocus EQN100 Detailed Specifications
| Image Sensor | 1/3” Progressive CMOS |
| Resolution | 1.3 Megapixels (1280 x 1024) |
| Frame Rate | 30fps |
| Lens | 3.6mm |
| Power Supply | 12 VDC |
| Compression Formats | H.264 / MJPEG |
| Mobile Access | MobileFocus / MobileFocus Plus (iOS and Android) |
| Compliance | ONVIF |
SKU  | EQN100 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1.3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC |
| Dimensions (W x H) | 38 x 36.5 x 42.8mm / 1.5” x 1.4” x 1.7” |
| Electronic Shutter | 1/25 ~ 1/8000sec |
| Image Device | 1/3” progressive CMOS sensor |
| Minimum Scene Illumination | Color: 0.05 Lux @F1.2 / Black: 0.01 Lux @F1.2 |
| Operating Humidity | 20% ~ 80% not condensing |
| Operating Temperature | 0°C ~ 50°C / 32°F~122°F |
| Power Consumption | 2.18W |
| Protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, RTP, RTSP, RTCP, ONVIF |
| S/N Ratio | > 50dB |
| Digital Noise Reduction | 3D DNR |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
