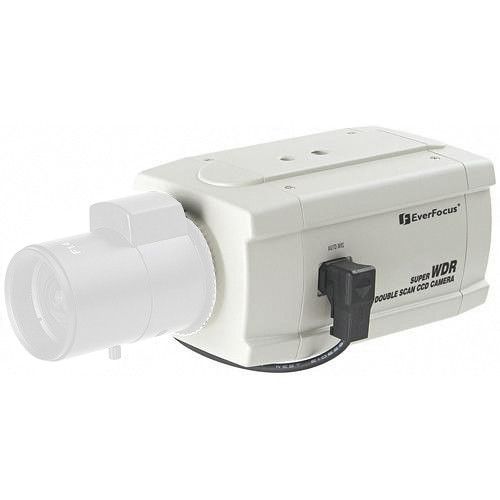

Everfocus EQ650A/N Wide Dynamic Range Camera
SKU
EQ650A/N
Model No
EQ650A/N
$97.21
Product Highlights
- Sony Double Density CCD
- 550 Lines
- 0.001 Lux (DSS On)
- Auto Iris DC
- Motion Detection
Speak to an expert
The EQ650A/N from Everfocus is a high performance security box camera equipped with a sophisticated Wide Dynamic Range function, making it ideal for both low-light and high-contrast environments. This camera is designed to deliver exceptional image clarity and reliability, ensuring top-notch security monitoring.
Everfocus EQ650A/N Camera Features
- Sony Double Density CCD: Provides enhanced image quality and superior low-light performance.
- 550 Lines: Ensures high resolution for clear and detailed images.
- 0.001 Lux (DSS On): Delivers exceptional low-light performance, making it effective even in near darkness.
- Auto Iris DC: Automatically adjusts to varying lighting conditions, providing optimal exposure at all times.
- Motion Detection: Offers the ability to detect movement, enhancing security monitoring capabilities.
- C/CS Lens Mount: Flexible lens compatibility allows for a variety of lens options based on specific needs.
- AC/DC: Versatile power options allow for ease of installation and use in different environments.
Detailed Camera Specifications for Everfocus EQ650A/N
| Image Sensor | Sony Double Density CCD |
| Resolution | 550 Lines |
| Minimum Illumination | 0.001 Lux (DSS On) |
| Lens Type | C/CS Lens Mount |
| Power Supply | AC/DC |
| Special Features | Wide Dynamic Range, Motion Detection, Auto Iris DC |
SKU  | EQ650A/N |
|---|---|
| Features | Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | Analog |
| Resolution | 550 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 24vAC |
| Electronic Shutter | NTSC / 1/60 ~ 1/100,000sec Auto |
| Gamma Correction | Y=0.45 / 1 / Active Mode 1 / Active Mode 2 |
| Image Device | Sony 1/3” Vertical Double-Density CCD |
| Image Pixels-Effective | NTSC / 768 (H) x 494 (V) |
| Operating Temperature | -10o C ~ +45o C / 14o ~ 113o F |
| Dimensions (W x H) | 65 x 59 x 115mm / 2.6 x 2.3 x 4.5in |
| OSD Menu | Available |
| Power Consumption | DC12V+ 10% Max 680mA / AC24V+ 10% / Max 8.6W) |
| S/N Ratio | More than 48dB (AGC Off / DSS Off) |
| Scanning System | 2:1 Interlace |
| Signal System | NTSC |
| Video Output | Composite 1 [Vp-p} 75 (Ω) unbalanced |
| Synchronization | Internal / Line Lock (AC24v Only) |
| Backlight Compensation | Off / On Level Adjustment, Area Selection |
| Automatic White Balance | ATW / Push / Push Lock / User |
| Auto Gain Control | MIN/AWT/MAX |
| Flickerless | Off / On (WDR On) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
