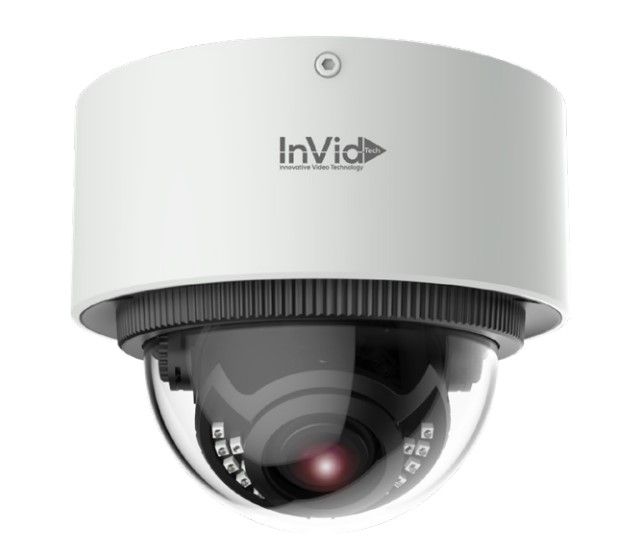

InVid ELEV-P5DRXIRAF2812 5 Megapixel IP Plug & Play IR Outdoor Dome Camera, 2.8-12mm Lens
SKU
ELEV-P5DRXIRAF2812
Model No
ELEV-P5DRXIRAF2812
$188.00
Product Highlights
- 5 Megapixel (2592x1944) Resolution
- Motorized Auto-Focus 2.8-12mm Lens
- H.265/H.265+/H.264/H.264+ Compression
- True Day/Night
- True WDR 120dB
Speak to an expert
The InVid ELEV-P5DRXIRAF2812 is a high-performance 5 Megapixel IP plug & play IR outdoor dome camera that combines advanced technology with ease of setup. Featuring a versatile 2.8-12mm motorized lens and a robust set of functionalities such as 98’ IR range, true WDR, and smart analytics, this camera is designed to deliver exceptional video quality and detailed surveillance in various conditions.
InVid ELEV-P5DRXIRAF2812 Camera Features
- 5 Megapixel (2592x1944) Resolution: Ensures high-definition clarity for detailed image capture.
- Motorized Auto-Focus 2.8-12mm Lens: Provides flexible viewing options and adjustable focal length for various surveillance needs.
- H.265/H.265+/H.264/H.264+ Compression: Reduces bandwidth usage while maintaining image quality, maximizing storage efficiency.
- True Day/Night: Delivers superior performance in low-light conditions, enhancing visibility at all times.
- True WDR 120dB: Minimizes overexposure and underexposure in challenging lighting environments.
- Smart IR Range up to 98’: Ensures clear visibility in dark environments with infrared illumination.
- TF Card Local Storage, 128GB: Offers convenient local storage for recorded footage, allowing for easy access and retrieval.
- Audio Input/Output: Enables two-way communication for enhanced monitoring capabilities.
- Built-In Mic: Captures audio along with video for a complete surveillance experience.
- IP66 Weather Resistant: Designed for outdoor use, protecting against dust and water ingress.
- IK10 Vandal Resistant: Offers high resilience to physical impacts, ensuring durability in high-risk areas.
- 12VDC/PoE Operation: Provides flexible installation options with power over Ethernet support.
- ONVIF: Compatible with a variety of third-party software and hardware for expanded versatility.
- Smart Analytics: Implements advanced features for intelligent video analysis, improving security measures.
- Free iOS & Android Apps: Manage your camera remotely from your smartphone or tablet for convenience.
- Free Central Management Software (CMS): Easily manage multiple units and sites from a single platform for operational efficiency.
- Free MAC Client Software: Available for Apple users to manage their system seamlessly.
InVid ELEV-P5DRXIRAF2812 Detailed Camera Specifications
| Camera Type: | 5 Megapixel IP Outdoor Dome |
| Resolution: | 2592x1944 |
| Lens: | 2.8-12mm Motorized Auto-Focus |
| IR Range: | Up to 98 Feet |
| WDR: | 120dB True WDR |
| Compression: | H.265/H.265+/H.264/H.264+ |
| Audio Input/Output: | Yes |
| Local Storage: | TF Card Slot (up to 128GB) |
| Weather Resistance: | IP66 |
| Vandal Resistance: | IK10 |
| Power Supply: | 12VDC or PoE |
| Compatibility: | ONVIF |
SKU  | ELEV-P5DRXIRAF2812 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø5.55" x 1.72" |
| Electronic Shutter | Auto/Manual, 1/3~1/10000s |
| Image Device | 1/1.8" Progressive scan CMOS Sensor |
| Minimum Scene Illumination | 0.01lux(Color), 0lux(IR on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | MAX. 10W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour |
| Video Output | RJ45 |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D/3D DNR |
| Angle of View | Horizontal: 108°~29°, Vertical: 56°~17° |
| Back Light Compensation | Support |
| IR Distance | 29.87m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
