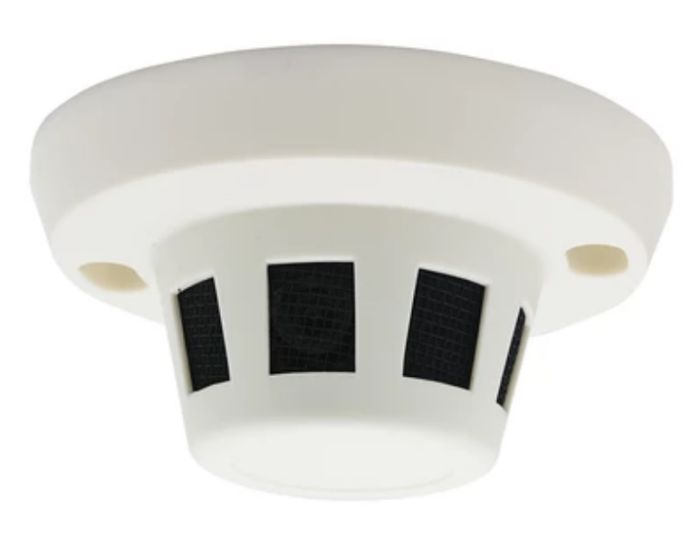

InVid ELEV-ALLSMOKE5 5 Megapixel TVI / AHD / CVI / CVBS Indoor Covert Smoke Detector Housing, 2.8mm Lens

SKU
ELEV-ALLSMOKE5
Model No
ELEV-ALLSMOKE5
$109.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5 Megapixel Resolution (2592 x 1944)
  • All-in-One Technology (TVI/AHD/CVI/Analog 960h)
  • Fixed Lens
  • Day/Night
  • D-WDR

The ELEV-ALLSMOKE5 from InVid is a 5 megapixel TVI / AHD / CVI / CVBS indoor covert smoke detector housing, equipped with a 2.8mm lens. This advanced security solution combines high-resolution imaging with an unobtrusive design, making it perfect for discreet surveillance while ensuring reliable performance and versatility across various systems.

InVid ELEV-ALLSMOKE5 Camera Features

  • 5 Megapixel Resolution: Provides crystal clear images with 2592 x 1944 resolution for detailed surveillance.
  • All-in-One Technology: Compatible with TVI/AHD/CVI/Analog 960h for easy integration into existing systems.
  • Fixed Lens: The 2.8mm lens optimizes field of view, ensuring expansive coverage in indoor settings.
  • Day/Night Functionality: Automatically adjusts to lighting conditions for round-the-clock monitoring.
  • D-WDR: Enhanced Wide Dynamic Range allows for better visibility in high-contrast environments.
  • Up The Cable (UTC) Function: Simplifies installation with the ability to control the camera through the same cable used for video transmission.
  • Extreme Operating Range: Withstands temperatures as low as -40° for reliable performance in harsh conditions.
  • Indoor Only: Specifically designed for indoor environments, ensuring covert surveillance.
  • OSD Remote: Easy on-screen display access via a remote attached to the cable for convenient settings adjustments.
  • 12VDC Only Operation: Standardizes power requirements for easy integration into existing setups.
  • Through InVid Tech DVR: Enjoy a free app, CMS, and MAC client to manage your surveillance system efficiently.

InVid ELEV-ALLSMOKE5 Detailed Specifications

ModelELEV-ALLSMOKE5
Resolution5 Megapixel (2592 x 1944)
Lens TypeFixed 2.8mm Lens
Video OutputTVI/AHD/CVI/CVBS
Operating Temperature-40° to +60°C
Power Supply12VDC Only
Indoor/Outdoor UseIndoor Only
Additional FeaturesDay/Night, D-WDR, OSD Remote, UTC Function
SKU  ELEV-ALLSMOKE5
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Wide Dynamic Range
Manufacturer  InVid
NDAACompliant
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Resolution    2592 X 1944
Lens Type    Fixed
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/2.8" Sony CMOS Sensor
Image Pixels-Effective2592 (H) x 1944 (V)
Minimum Scene Illumination  0.01Lux
Operating Temperature    -40°F ~ 140°F (-40~+60℃)
Dimensions (W x H)  120 x 58 (H)mm
OSD Menu    English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic
Power Consumption  < 5W
S/N Ratio  >55dB
Signal System    NTSC/PAL
Video Output    AHD / TVI / CVI / CVBS (960H)
Digital Noise Reduction    2D & 3D DNR
Angle of View    Horizontal: 94 Degree
Automatic White Balance    Auto / Manual
Auto Gain Control    Auto
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
