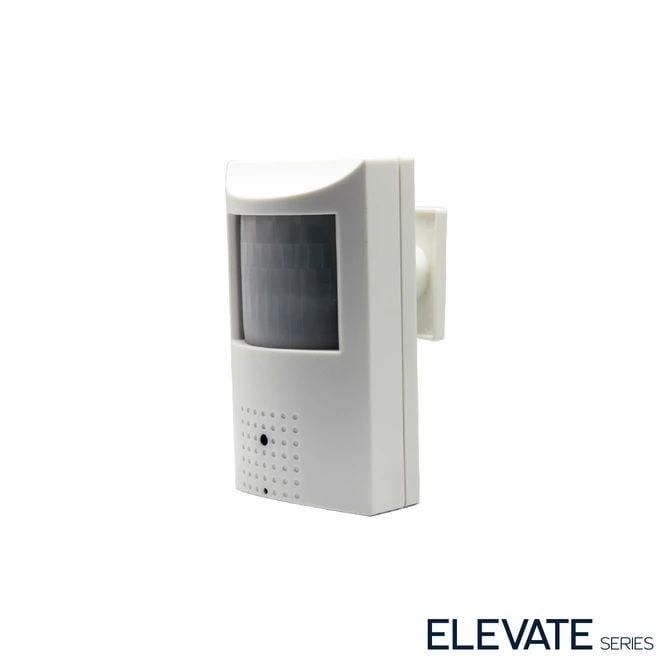

InVid ELEV-ALLPIR5 5 Megapixel TVI / AHD / CVI / CVBS Indoor Day/Night Covert Camera, 3.7mm Lens
SKU
ELEV-ALLPIR5
Model No
ELEV-ALLPIR5
$127.00
Product Highlights
- 5 Megapixel Resolution (2592 x 1944)
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Fixed Lens
- Day/Night
- D-WDR
Speak to an expert
The ELEV-ALLPIR5 from InVid is a cutting-edge 5 megapixel TVI / AHD / CVI / CVBS indoor day/night covert camera featuring a 3.7mm lens. It combines advanced imaging technology with user-friendly features to provide superior surveillance solutions for indoor environments.
InVid ELEV-ALLPIR5 Camera Features
- 5 Megapixel Resolution: Offers stunning image clarity at 2592 x 1944 pixels, ensuring detailed visual evidence.
- All-in-One Technology: Compatible with multiple formats (TVI/AHD/CVI/Analog 960h) for versatile integration.
- Fixed Lens: Ensures a constant field of view, perfect for covert monitoring.
- Day/Night Functionality: Automatically adjusts to varying lighting conditions, providing dependable performance at all times.
- D-WDR: Enhanced dynamic range technology minimizes overexposure in bright areas, capturing clear images in complex lighting.
- Built-In Mic: Records audio alongside video footage, adding another layer of detail to surveillance.
- Up The Cable (UTC) Function: Simplifies installation and adjustments through the existing cable, ideal for user convenience.
- Temperature Resilience: Designed to withstand temperatures as low as -40°, making it suitable for challenging indoor environments.
- OSD Remote: Conveniently adjusts settings via an attached remote, enhancing usability.
- Indoor Use Only: Specifically designed for indoor applications with functioning PIR for movement detection.
- 12VDC Only Operation: Operates efficiently on a standard power supply, ensuring easy compatibility.
- InVid Tech DVR Integration: Compatible with a free app, CMS, and MAC client, providing flexible access and management options.
Detailed Specifications for InVid ELEV-ALLPIR5
| Model | ELEV-ALLPIR5 |
| Camera Type | Indoor Covert Camera |
| Resolution | 5 Megapixel (2592 x 1944) |
| Lens | 3.7mm Fixed Lens |
| Operating Temperature | -40° to 50° C |
| Power Supply | 12VDC |
| Weight | Lightweight design |
| Audio | Built-In Microphone |
| Compatibility | TVI/AHD/CVI/Analog 960h |
| Special Features | D-WDR, UTC Function, OSD Remote |
SKU  | ELEV-ALLPIR5 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.8" Sony CMOS Sensor |
| Image Pixels-Effective | 2592(H) x 1944(V) |
| Operating Temperature | -40° ~ 140°F (-40 ~ +60℃ ) |
| Dimensions (W x H) | 2.75 x 3.03 x 4.72” (70 x 77 x 120mm) |
| OSD Menu | English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic |
| Power Consumption | ＜5W |
| S/N Ratio | >55dB |
| Signal System | NTSC/PAL |
| Video Output | CVBS (960H) |
| Digital Noise Reduction | 2D&3D DNR |
| Angle of View | Horizontal: 66.6 Degree |
| Automatic White Balance | Auto / Manual |
| Auto Gain Control | Auto |
| Audio | Yes |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
