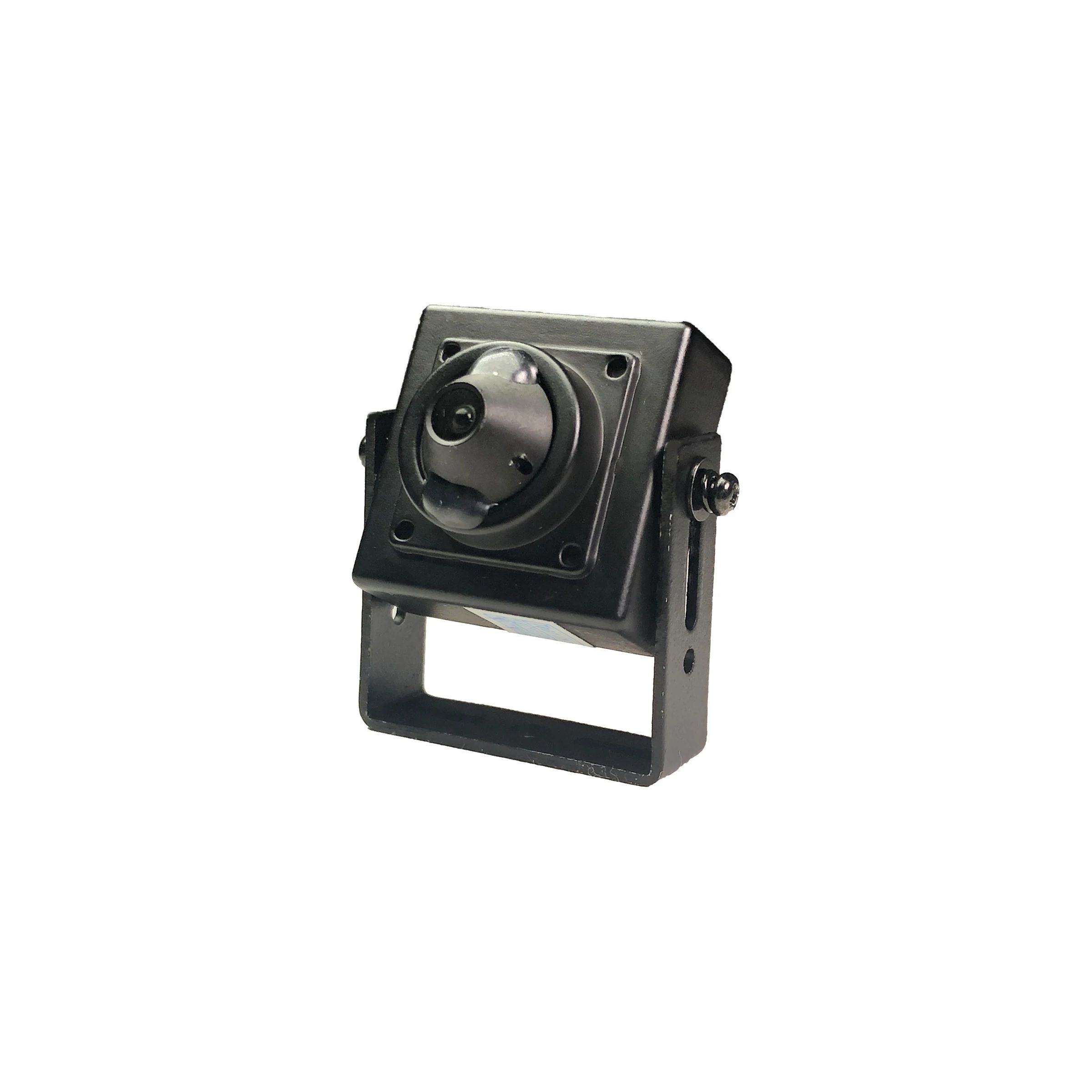

InVid ELEV-ALL5MIP28 5 Megapixel Pinhole Metal Case Camera, 2.8mm Lens
SKU
ELEV-ALL5MIP28
Model No
ELEV-ALL5MIP28
$127.00
Product Highlights
- 5MP, 1/2.8″ Sony CMOS Sensor
- AHD / TVI / CVI / CVBS Output Selectable from UTC Control
- 2.8mm Pinhole Lens
- D-WDR
- Withstand up to -40°C operation
Speak to an expert
The ELEV-ALL5MIP28 from InVid is a high-performance 5 megapixel pinhole camera designed for versatility and durability. With its compact design and advanced features, it provides exceptional video quality, excellent low-light performance, and the ability to operate in extreme temperatures, making it perfect for a variety of surveillance applications.
InVid ELEV-ALL5MIP28 Camera Features
- 5MP Sensor: Equipped with a 1/2.8” Sony CMOS sensor for superior image quality and clarity.
- Multi-Output Compatibility: AHD / TVI / CVI / CVBS output selectable from UTC control allows for flexible integration with various systems.
- Compact Pinhole Design: 2.8mm pinhole lens offers discreet monitoring without compromising on performance.
- Dynamic Wide Range (D-WDR): Ensures optimal image quality in challenging lighting conditions, enhancing visibility in bright and dark areas.
- Extreme Temperature Resistance: Withstands temperatures as low as -40°C, making it suitable for outdoor and harsh environments.
- Simple Power Requirements: Operates on 12VDC, making installation straightforward.
- Seamless Integration: Compatible with Invid Tech DVR systems, featuring a free app, CMS & Mac client for easy access and control.
Detailed Camera Specifications
| Model: | ELEV-ALL5MIP28 |
| Megapixels: | 5 Megapixels |
| Sensor Type: | 1/2.8” Sony CMOS |
| Lens Type: | 2.8mm Pinhole |
| D-WDR: | Yes |
| Operating Temperature: | Up to -40°C |
| Power Supply: | 12VDC |
| Output Types: | AHD / TVI / CVI / CVBS |
SKU  | ELEV-ALL5MIP28 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2592 X 1944 |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.8" Sony CMOS Sensor |
| Image Pixels-Effective | 2592 (H) x 1944 (V) |
| Minimum Scene Illumination | 0.01Lux |
| Operating Temperature | -40°F ~ 140°F(—40~+60℃) |
| Dimensions (W x H) | 25*25mm |
| OSD Menu | English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic |
| Power Consumption | 5W |
| S/N Ratio | >55dB |
| Signal System | NTSC/PAL |
| Video Output | AHD / TVI / CVI / CVBS (960H) |
| Digital Noise Reduction | 2D & 3D DNR |
| Angle of View | 83.8 Degree |
| Automatic White Balance | Auto / Manual |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
