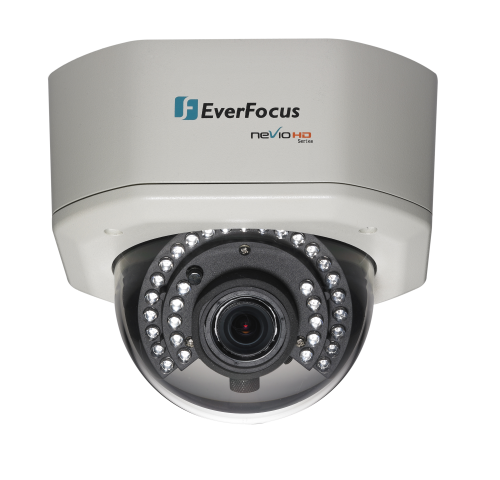

EverFocus EHN3340 3 Megapixel Full HD Network Outdoor IR Dome Camera
SKU
EHN3340
Model No
EHN3340
$552.63
Product Highlights
- 1/2.8″ Full HD color CMOS image sensor delivers high resolution, and supports both H.264 and M-JPEG in full 30fps frame rate
- P-IRIS Lens with a stepper motor for exact positioning to improves the IRIS performance
- Provides True Day/Night functionality with automatic IR filter operation
- Multi profiles settings for allows choice of image quality to fit the environment
- High Performance Noise Filter improves image quality
Speak to an expert
EverFocus EHN3340 Camera Features
The EHN3340 is a 3 Megapixel high-definition (HD) network camera which delivers high definition image quality. EHN3340 support both H.264 and M-JPEG multi-streaming. The camera has built-in slot for a SDHC card, providing local recording when the event was triggered. Power over Ethernet (IEEE 802.3at) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EHN3340 optimizes the IRIS opening under all lighting conditions with a motorized Vari-focal P-IRIS lens and as well as our own algorithm. EHN3340 is ideal for outdoor applications that require super image detail and IP68 supported. EHN3340 conforms to ONVIF / PSIA for compatibility with diverse network video devices.
Features
- 1/2.8” Full HD CMOS Sensor: delivers high resolution and supports both H.264 and M-JPEG with full 30fps frame rate.
- P-IRIS Lens: implements a stepper motor for exact positioning, improving IRIS performance in varying light conditions.
- True Day/Night Functionality: automatic IR filter operation enhances visibility at night.
- Multi Profiles Settings: allows for customizable image quality settings to suit different environments.
- High Performance Noise Filter: enhances image quality by reducing background noise.
- IP68 Weather Proof: ensures durability and reliability in outdoor conditions.
- Extended IR Range: up to 30M / 98.4 ft. with 33 infrared LEDs for better night vision.
- Dual Power Capability: supports PoE or 12VDC providing flexibility in installation options.
- ONVIF / PSIA Compliance: ensures compatibility with a broad range of network video devices.
- Built-in SDHC Slot: enables local storage for recorded events.
- Local Alarm Inputs and Outputs: facilitates integration with alarm systems.
- Two Way Audio Transport: allows for audio input and output for enhanced interaction.
- Support for EverFocus’ CMS and Mobile Applications: provides easy access and management of footage.
EverFocus EHN3340 Detailed Specifications
| Image Sensor | 1/2.8” Full HD Color CMOS |
| Max Resolution | 3 Megapixels |
| Lens Type | P-IRIS Vari-focal |
| IR Range | Up to 30M / 98.4 ft. |
| Power Supply | PoE (IEEE 802.3at) or 12VDC |
| Weather Resistance | IP68 |
| Vandal Resistance | IK10 |
| Recording Storage | Built-in SDHC slot |
| Audio Support | Two Way Audio Transport |
| Compliance | ONVIF / PSIA |
SKU  | EHN3340 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | EverFocus |
| Connection Type | Wired |
Infrared Distance  | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 166 x 138mm/6.5" x 4.5" |
| Electronic Shutter | 1~1/10,000sec |
| Image Device | 1/2.8" Full HD progressive scan CMOS sensor |
| IR LEDs | 33 LEDs |
| Minimum Scene Illumination | Color: 0.1 [email protected], B/W:[email protected] , 0 Lux @F1.2 (IR LEDs on) |
| Operating Humidity | 20% ~ 80% not condensing |
| Operating Temperature | 12 VDC: -40°C~55°C/-40°F~131°FPoE: -20°C~55°C/-4°F~131°F |
| Power Consumption | 12VDC 10.08W(IR LEDs on) , PoE 12.28W(IR LEDs on) |
| Protocols | TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP,HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP,SSL, IGMP,ICMP, ARP, ONVIF, PSIA |
| S/N Ratio | >50dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | On/Off |
| Angle of View | Horizontal 96.4~31.7, Vertical 69.6~23.7, Diagonal 128.2~39.7" |
| IR Distance | 30m/98.4ft. |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
