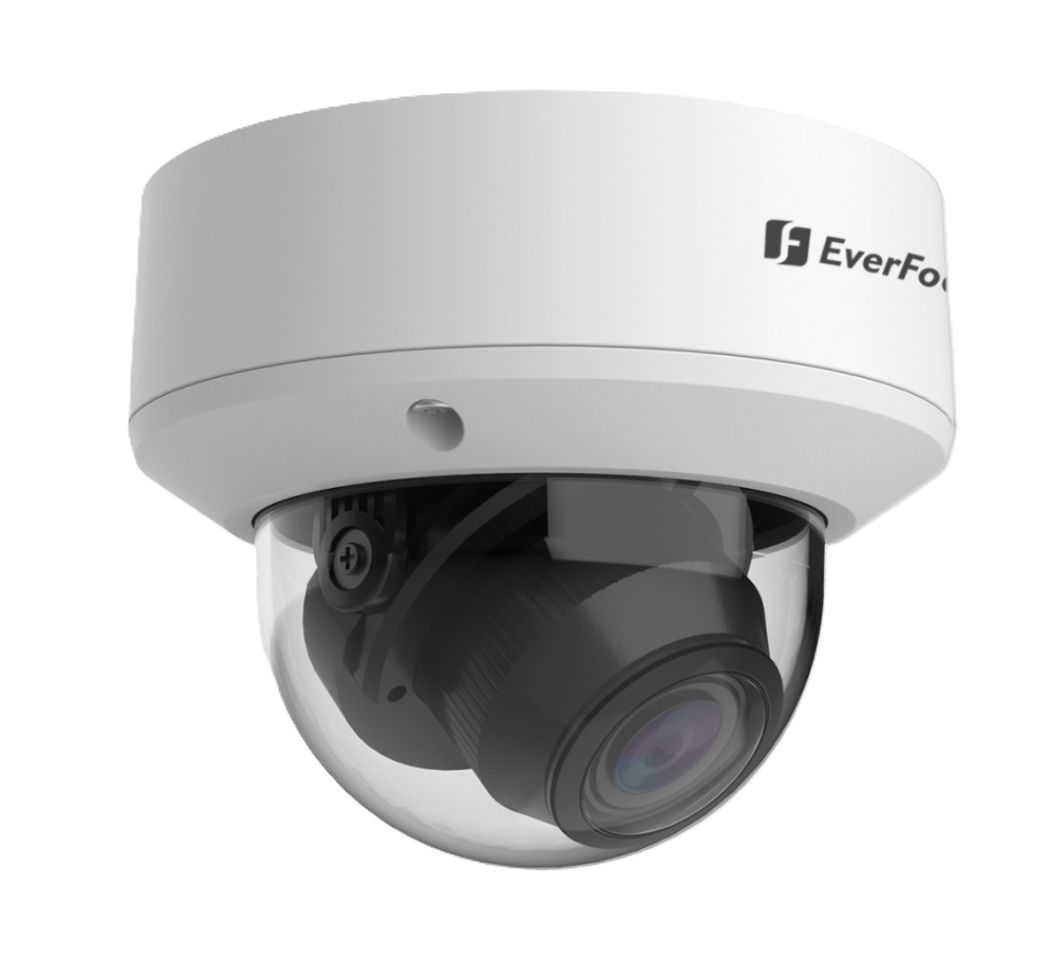

EverFocus EHA2580-Dome 5 Megapixel Analog Outdoor IR Dome Camera with 2.8-12mm Lens
SKU
EHA2580-Dome
Model No
EHA2580-Dome
$115.20
Product Highlights
- 5MP CMOS sensor, delivering amazing high sensitivity
- Varifocal 2.8-12mm with ICR to capture the desired field of view
- Extended IR range of up to 35m / 114ft. with 4 LEDs (depends on scene IR reflectivity)
- The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
- IP66-rated with metal housing
Speak to an expert
The EHA2580-Dome from EverFocus is a high-performance 5 megapixel day/night outdoor IR dome analog camera designed for versatility and exceptional clarity. Equipped with a sensitive 5MP CMOS sensor and a varifocal 2.8-12mm lens, it can capture detailed images across a wide field of view. Its extensive IR range makes it perfect for low-light environments, while the robust IP66-rated metal housing ensures durability in outdoor settings.
EverFocus EHA2580-Dome Camera Features
- 5MP CMOS Sensor: Delivers exceptional high sensitivity, ensuring clear images in various lighting conditions.
- Varifocal 2.8-12mm Lens: Offers the flexibility to adjust the field of view, perfect for adapting to different surveillance needs.
- Extended IR Range: Provides illumination up to 35m / 114ft. using 4 LEDs, making it effective for nighttime monitoring.
- 3-Axis Rotation Design: Supports flexible viewing angles, allowing for wall or ceiling mounting to fit your installation requirements.
- IP66-Rated Housing: Ensures reliable operation in harsh weather conditions, making it suitable for outdoor use.
- UTC Functionality: Enables straightforward camera OSD settings control directly from the DVR, simplifying operation and setup.
EverFocus EHA2580-Dome Detailed Specifications
| Model | EHA2580-Dome |
| Camera Type | Day/Night Outdoor IR Dome |
| Sensor | 5MP CMOS |
| Lens | Varifocal 2.8-12mm |
| IR Range | Up to 35m / 114ft. |
| Housing | IP66 Metal |
| Mounting Options | Wall or Ceiling |
| Special Features | UTC Function |
SKU  | EHA2580-Dome |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant |
| Manufacturer | EverFocus |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 5 MP CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/30s~1/30,000s |
| Gamma Correction | 0.45 / 0.55 / 0.65 / 0.75 |
| Image Device | 5MP CMOS sensor |
| Image Pixels-Effective | 2608 (H) x 1960 (V) |
| IR Distance | 35m/114ft |
| Operating Humidity | Less than 90% |
| Operating Temperature | -10°C ~ 50°C / 14°F ~ 122°F |
| Dimensions (W x H) | Ø 148.7 x 109mm / 5.85" x 4.29" |
| Power Consumption | IR Off ≤1W, IR On ≤4W |
| S/N Ratio | ≥39dB |
| Scanning System | Progressive Scan |
| Weatherproof | IP66 |
| Digital Noise Reduction | Off / Middle / High / Low |
| Mirror | Off / On |
| Angle of View | 133~40° x 107~34° x 54~19° |
| Backlight Compensation | Off /Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 4 Units |
| Motion Detection | Supported |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
