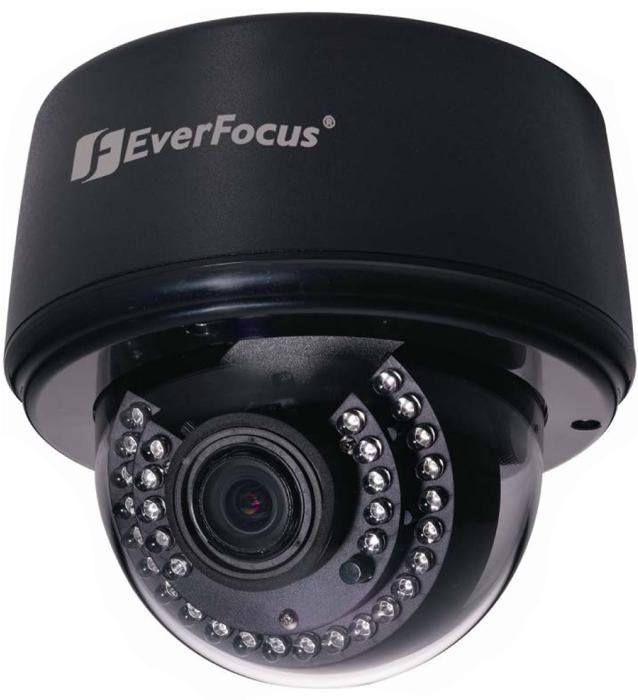

EverFocus EDN3260 2 Megapixel HD Indoor IR and WDR Dome Network Camera
SKU
EDN3260
Model No
EDN3260
$389.67
Product Highlights
- 1/3″ HD color CMOS image sensor delivers high resolution, and supports both H.264, MPEG-4 and M-JPEG in full frame rate
- P-IRIS Lens with a stepper motor for exact positioning to improves the IRIS performance
- Wide Dynamic Range
- Provides True Day/Night functionality with automatic IR filter operation
- Multi profiles settings for allows choice of image quality to fit the environment
Speak to an expert
The EverFocus EDN3260 is a premium 2 Megapixel HD indoor network camera designed to deliver exceptional image quality and versatile features for comprehensive surveillance needs. Equipped with advanced streaming capabilities, dual power options, and superior lens technology, the EDN3260 is perfect for environments requiring detailed monitoring and efficient installation.
EverFocus EDN3260 Camera Features
- 1/3” HD Color CMOS Sensor: Delivers high resolution images while supporting H.264, MPEG-4, and M-JPEG formats for versatile video streams.
- P-IRIS Lens: Motorized lens allows for precise IRIS adjustments, enhancing image performance under varying light conditions.
- Wide Dynamic Range: Provides superior image clarity in challenging light environments, maximizing detail in both bright and dark areas.
- True Day/Night Capability: Automatic IR filter operation ensures optimal performance for 24/7 surveillance with clear images at all times.
- Multi-Profile Settings: Offers customizable image quality settings to suit specific environmental conditions.
- High Performance Noise Filter: Enhances image quality by reducing noise for clearer video capture.
- Extended IR Range: Features up to 20M/65.6 ft. IR illumination with 33 LEDs for reliable night vision.
- Dual Power Capability: Supports Power over Ethernet (PoE) or 12VDC, allowing for flexible installation options.
- ONVIF / PSIA Compliance: Ensures interoperability with a wide range of systems from different manufacturers.
- Built-in Micro SDHC Slot: Local storage capability for recording events triggered by motion.
- Vandal Proof: IK10-rated metal housing provides durability against tampering.
- Local Alarm Inputs and Outputs: Integrates with external alarm systems for enhanced security.
- Two Way Audio Transport: Enables bidirectional audio communication for added functionality.
- BNC Video Output: Simplifies on-site installation and verification for easier setup.
- Mobile Monitoring: Supports live monitoring via MobileFocus/MobileFocus Plus Apps for iOS and Android devices.
EverFocus EDN3260 Detailed Specifications
| Camera Model | EverFocus EDN3260 |
| Image Sensor | 1/3” HD Color CMOS |
| Resolution | 2 Megapixels |
| Video Compression | H.264, MPEG-4, M-JPEG |
| Lens Type | P-IRIS Motorized Vari-focal |
| IR Range | Up to 20M/65.6 ft. |
| Power Supply | PoE or 12VDC |
| Compliance | ONVIF / PSIA |
| Storage | Micro SDHC slot |
| Housing Rating | IK10 Vandal Proof |
| Audio Support | Two Way Audio |
| Mobile Access | MobileFocus/MobileFocus Plus Apps |
SKU  | EDN3260 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | EverFocus |
| Connection Type | Wired |
Infrared Distance  | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Flush Mount : 117 x 108.9mm/4.61” x 4.29”, Surface Mount : 142 x 132.9mm/5.6” x 5.23” |
| Electronic Shutter | 2~1/50,000sec. |
| Image Device | 1/3" Full HD progressive scan CMOS sensor |
| IR LEDs | 33 LEDs |
| Minimum Scene Illumination | Color: 0.1 [email protected], B/W: [email protected] Lux @F1.2 (IR LEDs on) |
| Operating Humidity | 20% ~ 80% not condensing |
| Operating Temperature | 0°C~40°C/-32°F~104°F |
| Power Consumption | 12VDC 8.7W(IR LEDs on) / PoE 9.73W(IR LEDs on) |
| Protocols | TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP,HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, SSL, IGMP,ICMP, ARP, ONVIF, PSIA |
| S/N Ratio | >50dB |
| Digital Noise Reduction | 3D, On/Off |
| Angle of View | Horizontal 96.4~31.7, Vertical 69.6~23.7, Diagonal 128.2~39.7" |
| IR Distance | 20m/65.6ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
