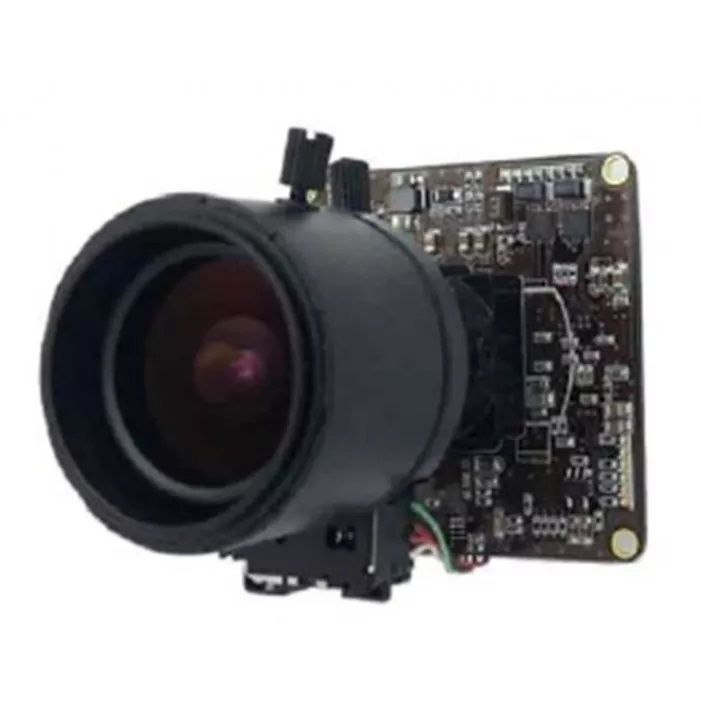

Ikegami ECO-HD13 1.3 MP Analog Colour WDR Board Camera
SKU
ECO-HD13
Model No
ECO-HD13
$79.00
Product Highlights
- 1000 Lines of Resolution
- Easy Icon Style OSD
- Remote Control Communication: RS485/UTC
- Wide Voltage Input Operation (7V - 16V)
- NTSC Video Output
Speak to an expert
The Ikegami ECO-HD13 is a top-tier 1.3 MP Analog Colour WDR Board Camera designed for exceptional performance in various lighting conditions. With its high resolution of 1000 TVL and versatile 2.8mm-12mm varifocal lens, this camera ensures clear and detailed imagery, even in low light environments down to 0.14 lux. The ECO-HD13 is equipped with user-friendly controls via OSD and supports wide voltage operation, making it a valuable addition for surveillance needs.
Ikegami ECO-HD13 Camera Features
- Resolution: 1000 Lines of Resolution for stunning image clarity and detail.
- Control Interface: Easy Icon Style OSD for convenient camera configuration.
- Remote Access: Remote Control Communication via RS485/UTC for flexible management.
- Voltage Range: Wide Voltage Input Operation (7V - 16V) provides versatile power options.
- Video Output: NTSC Video Output for standard compatibility.
- Dynamic Range: Wide Dynamic Range (30fps) ensures high-quality performance across lighting variations.
- Sync Technology: Enhanced LED Sync for optimal performance with varied lighting conditions.
- Switch Selectable: ON / OFF Switching Level Selectable for tailored operational settings.
- LED Control: LED ON / OFF Selectable gives control over light usage.
- Sensor: 1/3" 3MP HD CMOS Sensor for crisp and rich color reproduction.
- Lens Type: 2.8~12mm 2MP Vari-focal Lens Provided for adjustable field of view.
Ikegami ECO-HD13 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | Analog Colour WDR Board Camera |
| Resolution | 1.3 MP |
| Sensor Size | 1/3" 3MP HD CMOS Sensor |
| Lens | 2.8mm-12mm Varifocal Lens |
| Minimum Illumination | 0.14 lux |
| Voltage Input | 7V - 16V |
| Video Output | NTSC |
| Dynamic Range | Wide Dynamic Range (30fps) |
| Remote Control | RS485/UTC |
| Resolution Lines | 1000TVL |
SKU  | ECO-HD13 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Ikegami |
Camera Signal  | Analog |
| Resolution | 1000 TVL |
| Sensor Option | 1/3" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 (50) ~ 1/100,000 |
| Image Device | 1/3 SONY 1.3 Mega Pixel CMOS sensor |
| Image Pixels Total | 1280(H) x 1024(V) |
| Minimum Scene Illumination | 0.14Lux (F1.2, 30IRE) Color | 0.03Lux (F1.2, 30IRE) a t TDN (B/W) |
| Operating Humidity | Under 90% (Non?condensing) |
| Operating Temperature | ‐200 ~ +700 C |
| Dimensions (W x H) | 42(H) x 42(V)mm |
| Power Consumption | Max (DC 12V / 1.68W) |
| S/N Ratio | 55dB or more |
| Signal System | NTSC |
| Video Output | 1.0Vp‐p / 75 ohm NTSC, Composi te (1.0Vp‐p ,75ohm) |
| Synchronization | Internal |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Mirror | OFF / ON |
| Backlight Compensation | OFF / HME / BLC / WDR |
| Automatic White Balance | ATW / AWB / PUSH / MANUAL |
| Motion Detection | 4 programma ble zone |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
