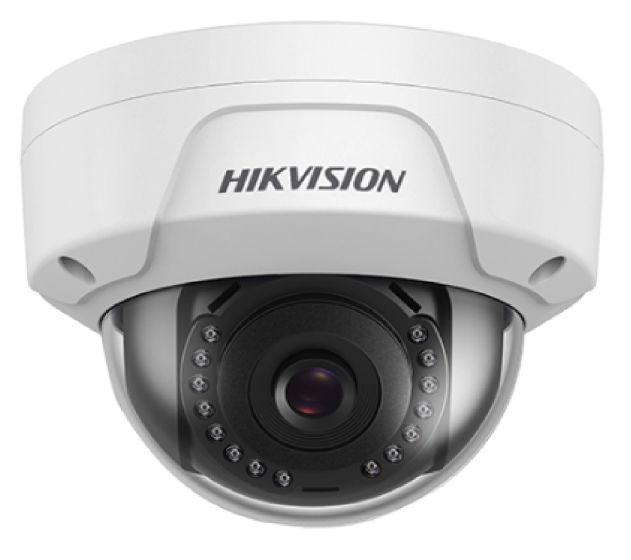

Hikvision ECI-D12F4 2 Megapixel Network IR Outdoor Dome Camera, 4mm Lens
SKU
ECI-D12F4
Model No
ECI-D12F4
$106.39
Product Highlights
- 1/2.8" (2 MP) Progressive Scan CMOS
- Up to 1920 x 1080 Resolution
- Up to 100 ft (30 m) EXIR 2.0 Range
- H.265+/H.265/H.264+/H.264/MJPEG
- IP67, IK10 Protection
Speak to an expert
2 Megapixel Network IR Outdoor Dome Camera
- The Hikvision Outdoor IR Dome Camera provides high definition output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.The camera is equipped with an EXIR 2.0 range of up to 100 feet (30 meters).
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 1/2.8" (2 MP) Progressive Scan CMOS | IP67, IK10 Protection |
| Up to 1920 x 1080 Resolution | 2-Axis Positioning: Pan and Tilt |
| Up to 100 ft (30 m) EXIR 2.0 Range | Durable Metal Housing |
| H.265+/H.265/H.264+/H.264/MJPEG | 12 VDC ±25% (PoE IEEE802.3af), Max. 5 W |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | ECI-D12F4 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.264+ |
| Durability | Vandal Resistant, Weather Resistant |
| Dimensions (W x H) | Ø4.4" x 3.2" (Ø111 mm x 82.4 mm) |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/2.8" (2 MP) progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.028 lux @ (ƒ/2.0, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° to 122° F (-30° to 50° C) |
| Power Consumption | 12 VDC, 0.4 A, maximum: 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, maximum: 7 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° |
| IR Distance | 30m/98.42ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
