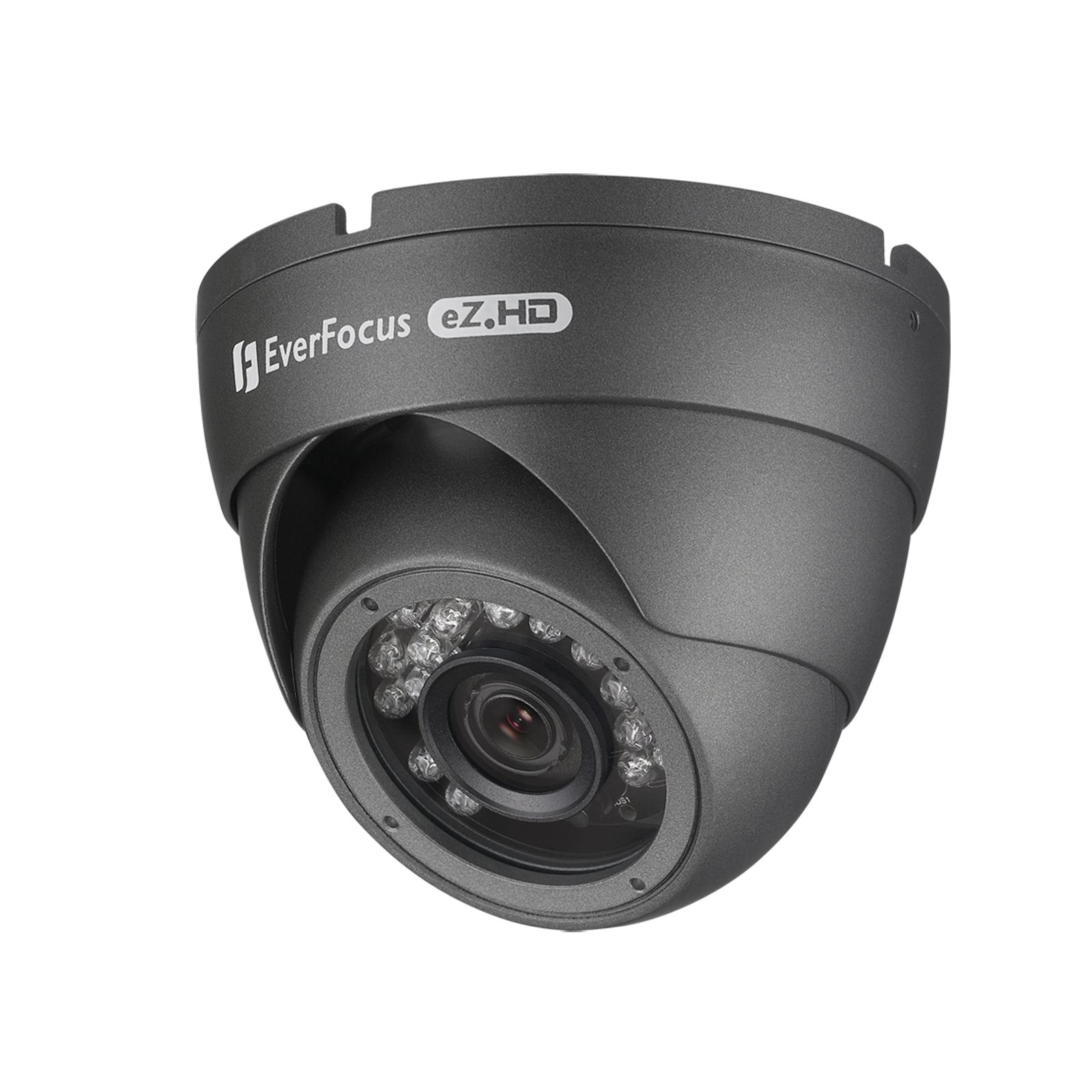

Everfocus EBD934Q 4 Megapixel Analog IR Outdoor Dome Camera, 3.6mm Lens, Dark Grey
SKU
EBD934Q
Model No
EBD934Q
$188.95
Product Highlights
- 4-Megapixel with high flexibility and performance for astounding image
- 4M CMOS Sensor, delivering amazing high sensitivity
- Astounding image quality from the 3.6mm lens
- Extended IR range of up to 15m / 50ft. with 12 LEDs (depends on scene IR reflectivity)
- D-WDR to improve the visibility under high contrast scene
Speak to an expert
The EBD934Q from Everfocus is a 4 megapixel analog IR outdoor dome camera featuring a 3.6mm lens in a sleek dark grey design. This camera boasts exceptional image quality and versatility for surveillance needs, ensuring clear visuals even in challenging lighting conditions.
Everfocus EBD934Q Camera Features
- 4-Megapixel Resolution: Offers high flexibility and performance for astounding image clarity.
- 4M CMOS Sensor: Delivers amazing high sensitivity, ensuring clear images in low light environments.
- 3.6mm Lens: Provides astounding image quality with a wide field of view for effective monitoring.
- Extended IR Range: Features an extended IR range of up to 15m / 50ft with 12 LEDs for superior night vision (depending on scene IR reflectivity).
- D-WDR Technology: Improves visibility in high contrast scenes, allowing for a clearer image in varying light conditions.
- 3-Axis Rotation Design: Allows for flexible angle viewing, making wall or ceiling mounting effortless.
- Easy Installation: Special design simplifies installation and operation for quick setup.
- eZ Controller Function: Enables users to control camera OSD settings directly from DVR, enhancing user convenience.
Detailed Specifications for Everfocus EBD934Q
| Model | EBD934Q |
| Camera Type | Analog IR Outdoor Dome |
| Megapixel | 4 Megapixel |
| Lens | 3.6mm |
| IR Range | Up to 15m / 50ft |
| Sensor Type | 4M CMOS |
| Installation Type | Wall or Ceiling Mount |
| Color | Dark Grey |
SKU  | EBD934Q |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | Analog |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | Auto / Manual (x30~1/50,000) / FLK |
| Gamma Correction | 0.45 |
| Image Device | 4M CMOS sensor |
| Image Pixels-Effective | 2560 (H) x 1440 (V) |
| IR Distance | 15m / 50ft |
| Minimum Scene Illumination | 0 Lux with IR On |
| Operating Humidity | Less than 80% |
| Operating Temperature | -10°C ~ 50°C / 14°F ~ 122°F |
| Dimensions (W x H) | 93 x 65mm / 3.66" x 2.56 |
| OSD Menu | English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Netherlands / Turkish |
| Power Consumption | 3W max |
| Privacy Zone | Off / On for 4 selectable zone |
| S/N Ratio | >50dB |
| Scanning System | Progressive Scan |
| Signal System | NTSC / PAL |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2DNR / Off |
| Mirror | Off / Mirror / V-Flip / Rotate |
| Angle of View | 52.9° x 94.3° x 72.2° |
| Backlight Compensation | OFF / BLC / HSBLC Selectable |
| Automatic White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual |
| Auto Gain Control | 0~15 Levels |
| IR LEDs | 12 Units |
| Motion Detection | Off / On for 4 selectable zones |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
