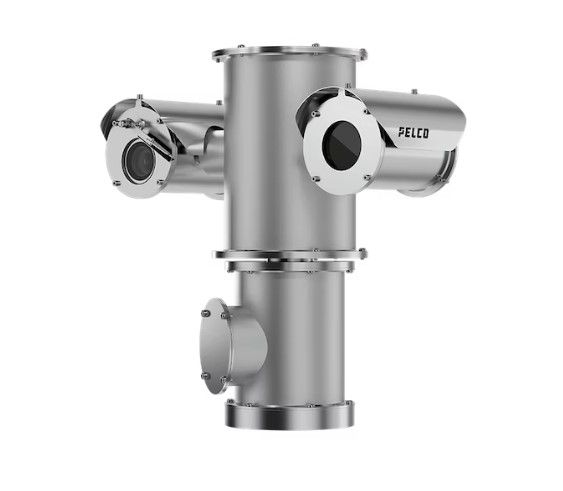

Pelco EABE1-2X40QF18-SPT0-M1 2 Megapixel Network Outdoor PTZ Camera with 18mm Lens
SKU
EABE1-2X40QF18-SPT0-M1
Model No
EABE1-2X40QF18-SPT0-M1
$14,407.50
Product Highlights
- Up to 4 simultaneous streams in a single device
- Visual camera: 2 MP resolution and 40x optical zoom
- Thermal camera: VGA, QVGA and multiple fixed lens options
- Flexible mounting options with multiple accessories
- H.264, H.265, Motion JPEG with Pelco Smart Compression
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Camera is a cutting-edge surveillance solution designed for the most demanding environments. With its unique dual imaging capability combining visual and thermal technology, this camera enhances operational awareness and reduces false alarms. Crafted from heavy-duty stainless steel for corrosion resistance, it is ideal for ports, cargo ships, and other challenging outdoor settings.
Pelco 2 Megapixel Network Outdoor PTZ Camera - Key Features
- Visual & Thermal Imaging: This camera integrates both visual and thermal technology, providing comprehensive situational awareness and enabling accurate target detection across varying environmental conditions.
- Durable Construction: Built with heavy-duty stainless steel, it offers exceptional resistance to corrosion, ensuring reliability and longevity in harsh conditions.
- Lloyd's Register Marine Approved: The camera meets maritime standards, making it a trusted solution for shipping and maritime operations.
- Advanced Analytics: With Pelco Smart Analytics, the camera enhances object detection and classification, providing quicker response capabilities for security teams.
- Wide Operating Temperature Range: It operates effectively in extreme temperatures from -40°C to +65°C (-40°F to 149°F), making it suitable for a variety of locations.
- Weather & Vandal Resistant: Rated IP66/67/68/69, the camera is built to withstand the elements and resist vandalism, providing reliable performance outdoors.
Pelco 2 Megapixel Network Outdoor PTZ Camera - Specifications
| Specification | Details |
|---|---|
| Image Sensor | 2 MP |
| Zoom Capability | 40x optical zoom |
| Field of View | Multiple options available |
| Video Compression | H.264, H.265, Motion JPEG |
| Audio | Two-way audio support |
| ONVIF Compliance | Profiles S, G, T, M |
| Power Supply | Power over Ethernet (PoE) |
| Dimensions | Varies based on configuration |
| Weight | Lightweight for easy installation |
SKU  | EABE1-2X40QF18-SPT0-M1 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 18mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 120vAC |
| Dimensions (W x H) | 460 mm x 240 mm x 480 mm; 18.1" x 9.5" x 18.9" |
| Electronic Shutter | Automatic, Manual (1/1 to 1/10,000 sec) |
| Image Device | 1/2.8" progressive scan CMOS |
| Minimum Scene Illumination | 0.03 lux (F/1.6) in color mode; 0.02 lux (F/1.6) in monochrome |
| Operating Humidity | 5% - 95% non-condensing |
| Operating Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Power Consumption | 120W max. 35W, P&T static, heating switched off |
| Privacy Zone | 3D, up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| S/N Ratio | More than 50 dB |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | 3D |
| Angle of View | Horizontal 66.35° - 1.9°, Vertical 39.99° – 1.11° |
| Motion Detection Tracking | Pixel motion: Selectable sensitivity and threshold. Classified object detection |
| Flickerless | 60 Hz, 50 Hz |
| Back Light Compensation | On/Off |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
